Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| WASHER 7/8" INT LOCK 1418/0018Z | 1 | $5.34 | ||||
| 1 | HOSE 1/2BSP 3000mm 629/80005 | 1 | $266.91 | |||
| 3 | ADAPTOR PLATE x4 331/14734 | 1 | $42.99 | |||
| 4 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 5 | PLAIN WASHER 823/00377 | 1 | $7.10 | |||
| 7 | HOSE 1/2BSP 760mm 613/06800 | 1 | $157.99 | |||
| 9 | BACK NUT 1/2"BSP 1356/0204Z | 1 | $6.20 | |||
| 10 | HOSE 1/2BSP 1950mm 613/36018 | 1 | $153.11 | |||
| 11 | HOSE 1/2BSP 1585mm 613/36006 | 1 | $141.66 | |||
| 12 | PIPE LEFT HAND JAW 125/00264 | 1 | $1,291.39 | |||
| 12 | WA L/H FEED PIPE jaw 335/09317 | 1 | $331.93 | |||
| 13 | PIPE RIGHT HAND JAW 125/00265 | 1 | $643.75 | |||
| 13 | WA R/H FEED PIPE jaw 335/09318 | 1 | $370.06 | |||
| 14 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 16 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 17 | (P) ADAPTOR G1/2A X G1/2 1612/0004 1612/2052 | 1 | $76.32 | |||
| 18 | O-RING 2401/0506 | 1 | $1.46 | |||
| 18 | WASHER 1406/0018 | 1 | $4.09 | |||
| 19 | COUPLING QR FEMALE F9 - 1/2BSP 45/910400 | 1 | $124.19 | |||
| 19 | COUPLING QR FEMALE HQ10 - 8SAE 45/920049 | 1 | $160.53 | |||
| 19A | COUPLING QR MALE F9 - 1/2BSP 45/910500 | 1 | $78.76 | |||
| 19A | QRC SAE MALE 3/4 UNF 45/920058 | 1 | $166.08 | |||
| 20 | FLIP TOP CAP 835/10082 | 1 | $5.79 | |||
| 21 | COUPLING COVER 835/10109 980/67301 | 1 | $2.99 | |||
| 22 | HOSE CLAMP 123/05836 | 1 | $13.75 | |||
| 23 | CLAMP PLATE 331/14805 | 1 | $56.16 | |||
| 24 | CAP SCREW M10x40 1391/3410Z | 1 | $2.38 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-
DIAG-E1-12-20-395145 E1-12-20 CIRCUIT, JAW BUCKET EXTRADIG DIPPER 1400
View Diagram -
DIAG-E1-11-4-395145 E1-11-4 CIRCUIT, AUXILIARY EXTENTION RAM EXTRADIG DIPPER & JAW 1400, GEAR PUMP
View Diagram -

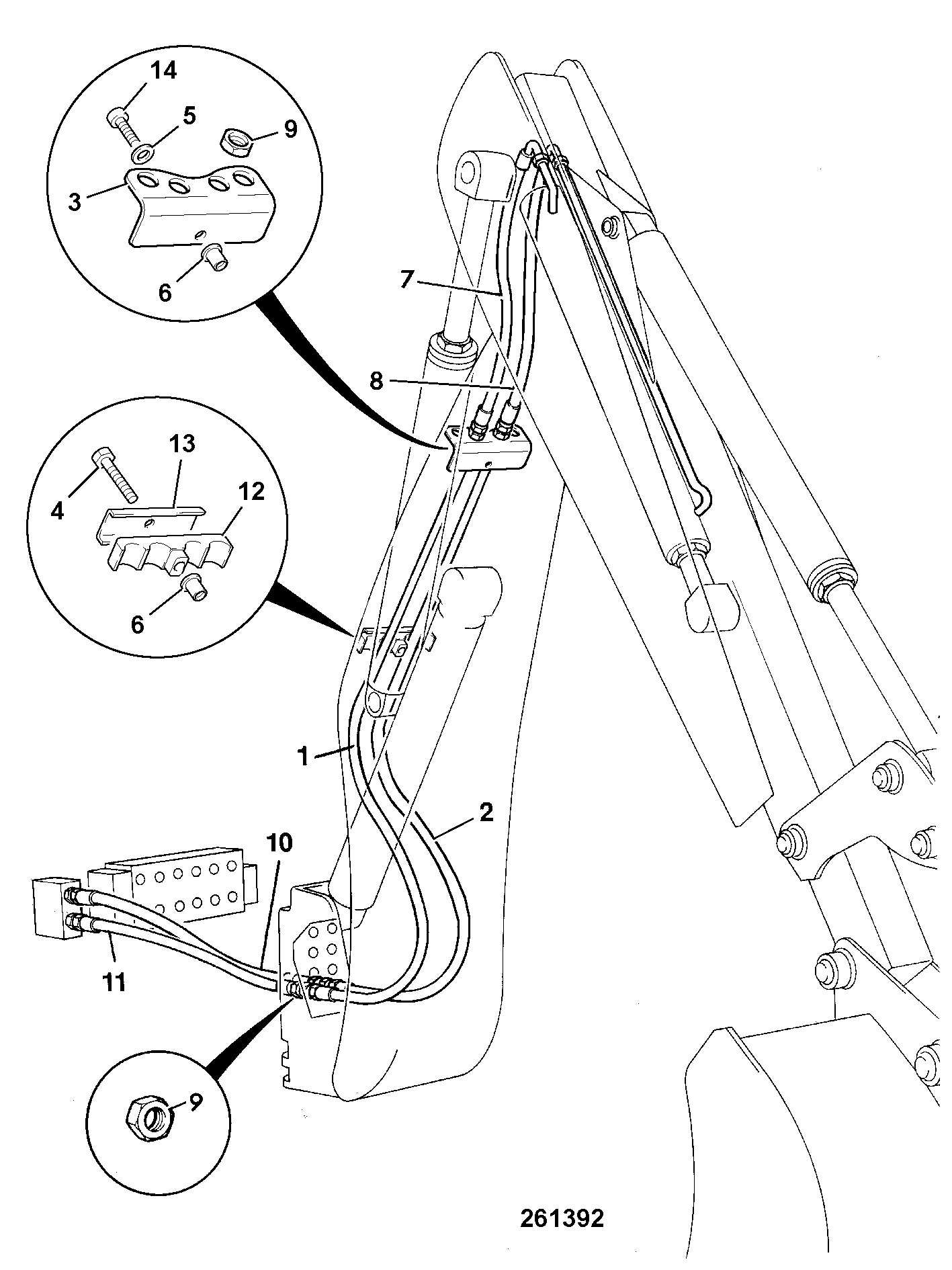

DIAG-E1-11-3-395145 E1-11-3 CIRCUIT, AUXILIARY EXTENTION RAM, 215 EXTRADIG DIPPER
View Diagram
