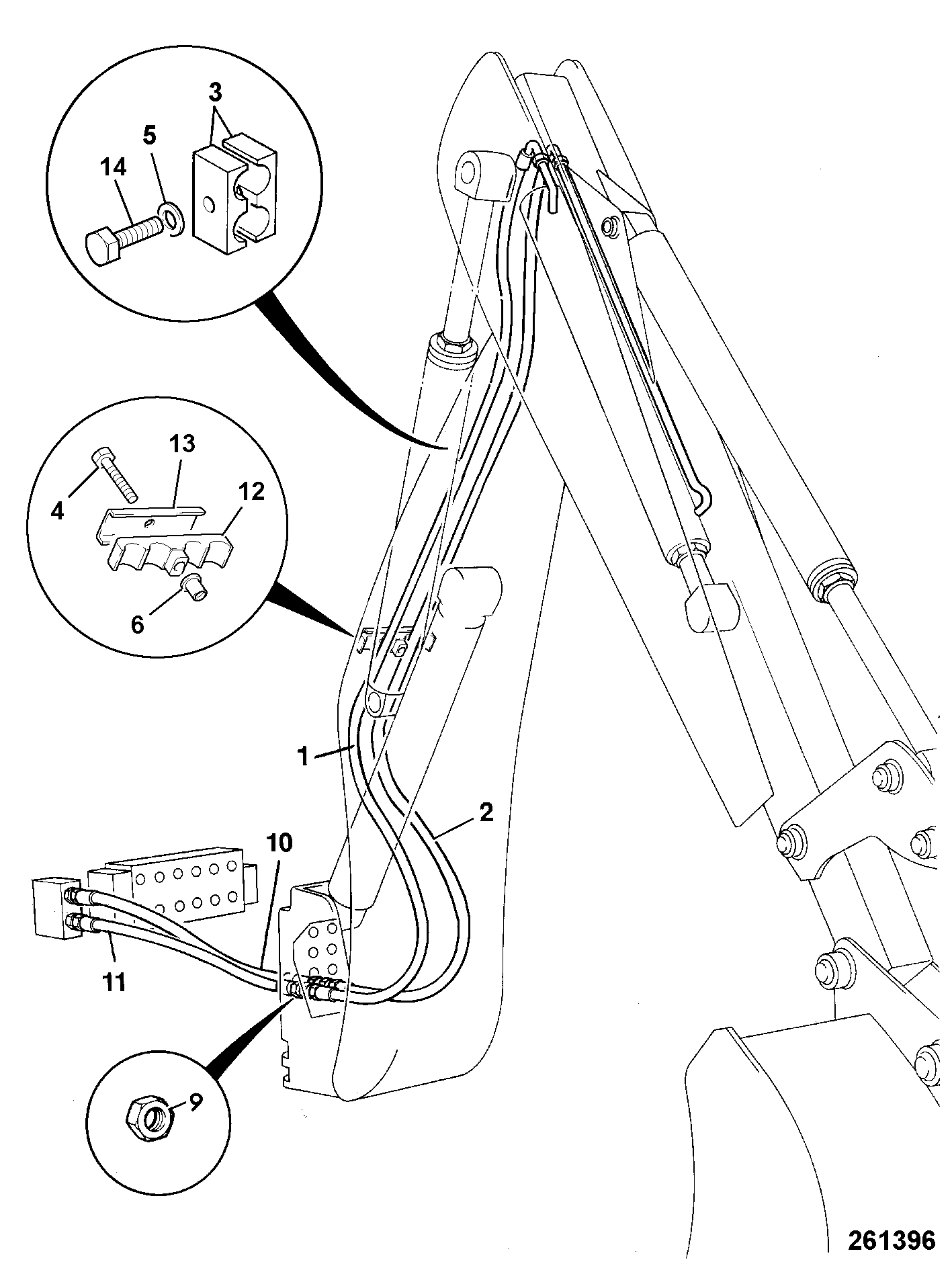

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| WASHER 7/8" INT LOCK 1418/0018Z | 1 | $5.34 | ||||
| 1 | HOSE 1/2BSP 4015mm 332/F1159 | 1 | $421.50 | |||
| 3 | HOSE CLAMP - BOOM 332/E7270 | 1 | $4.72 | |||
| 5 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 6 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 9 | BACK NUT 1/2"BSP 1356/0204Z | 1 | $6.20 | |||
| 10 | HOSE 613/36004 | 1 | $143.76 | |||
| 10 | HOSE 1/2BSP 1645mm 613/36016 | 1 | $145.74 | |||
| 10 | HOSE 1/2BSP 1910mm 613/09204 | 1 | $143.92 | |||
| 11 | HOSE 613/36005 | 1 | $134.61 | |||
| 11 | HOSE 1/2BSP 1950mm 613/36018 | 1 | $153.11 | |||
| 12 | HOSE CLAMP 123/05836 | 1 | $13.75 | |||
| 13 | CLAMP PLATE 331/14805 | 1 | $56.16 | |||
| 14 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
Showing 1 to 14 of 14 parts
