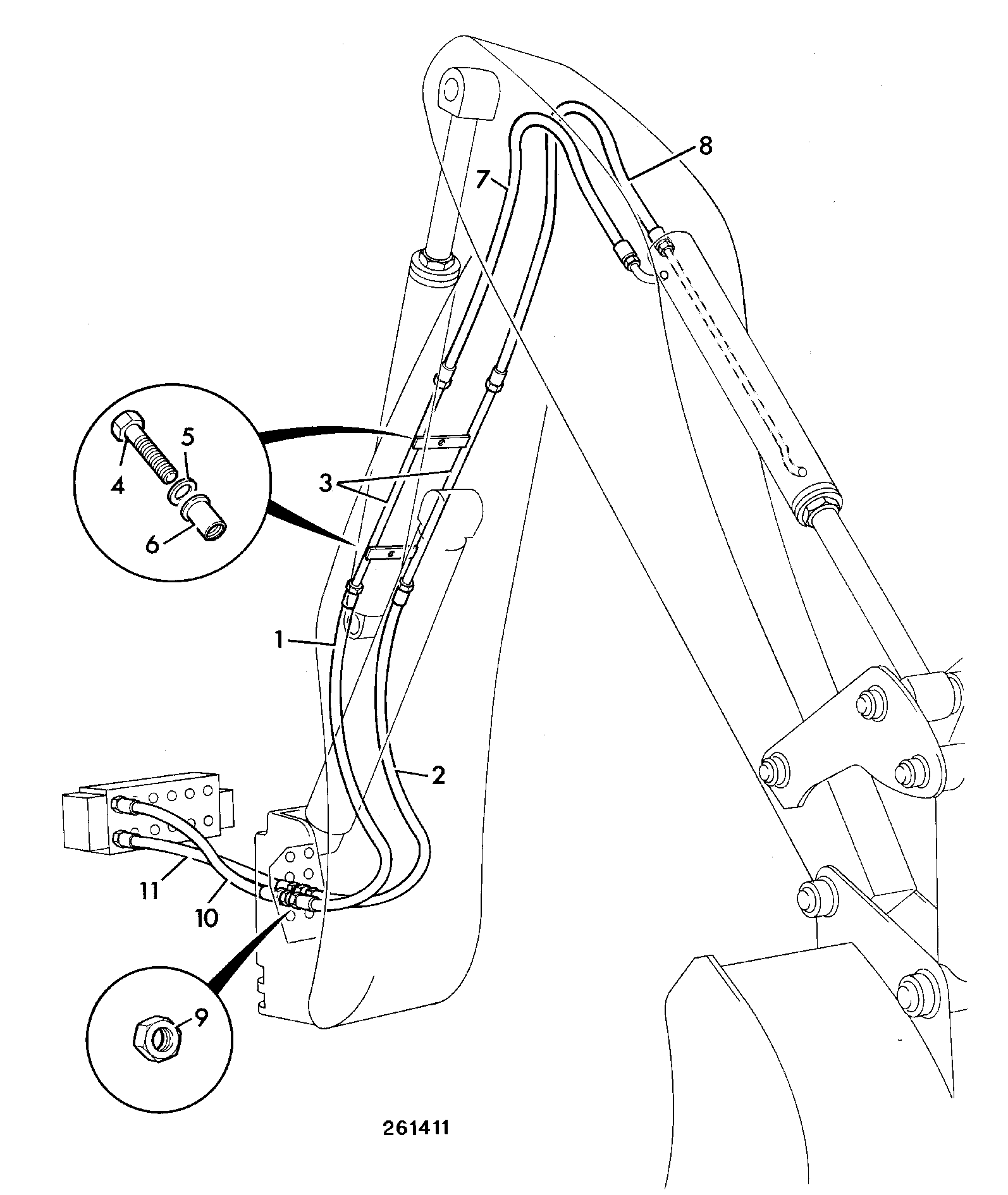

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE 1/2BSP 2880mm 629/27400 | 1 | $781.26 | |||
| 3 | WA PIPES BOOM 17' 125/99200 335/13779 | 1 | $284.73 | |||
| 4 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 5 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 6 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 7 | HOSE 1/2BSP 1100mm 613/05400 | 1 | $132.49 | |||
| 9 | BACK NUT 1/2"BSP 1356/0204Z | 1 | $6.20 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-

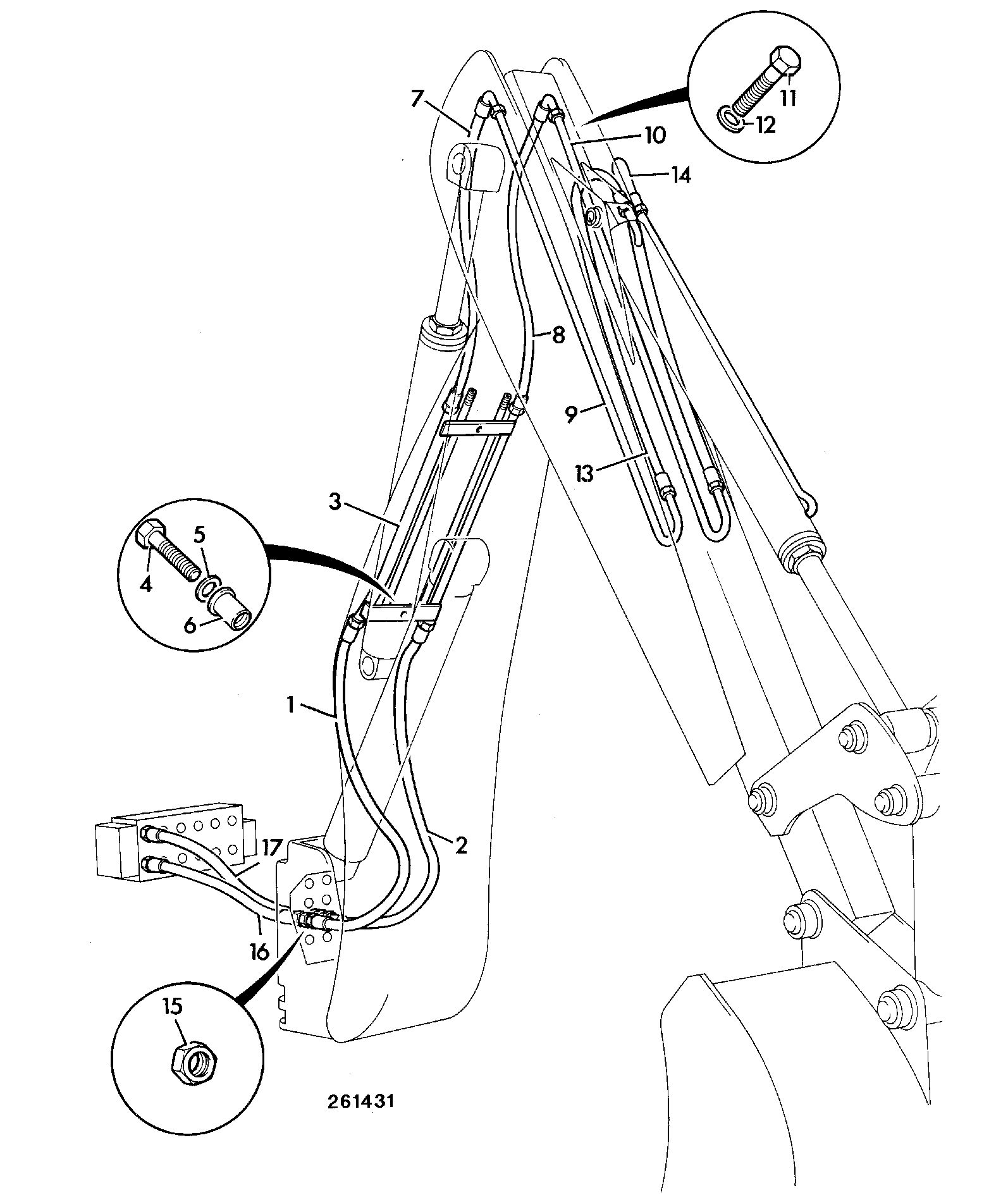

DIAG-E1-10-12-395158-11310885 E1-10-12 CIRCUIT, BUCKET RAM EXTRADIG DIPPER 1700
View Diagram -
DIAG-E1-10-3-395158 E1-10-3 CIRCUIT, BUCKET RAM MONO DIPPER 1700
View Diagram -
DIAG-E4-6-60-395158 E4-6-60 RAM, DIPPER STANDARD LIFT 110MM CYL X 65MM ROD.
View Diagram
