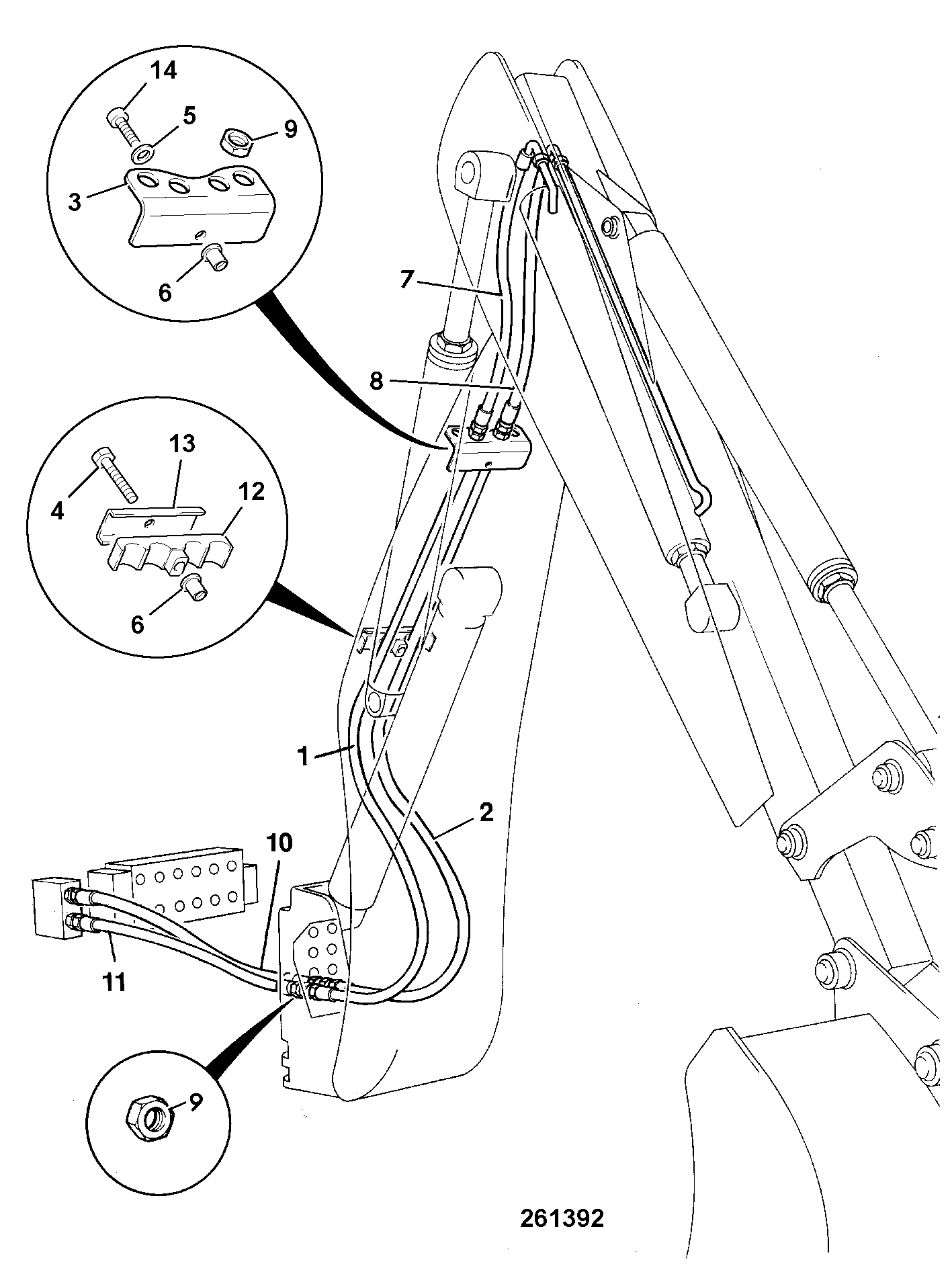

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BACKHOE ASSY 126/01588 | 1 | $29,586.82 | ||||
| WASHER 7/8" INT LOCK 1418/0018Z | 1 | $5.34 | ||||
| 1 | HOSE 1/2BSP 3000mm 629/80005 | 1 | $266.91 | |||
| 3 | ADAPTOR PLATE x4 331/14734 | 1 | $42.99 | |||
| 4 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 5 | PLAIN WASHER 823/00377 | 1 | $7.10 | |||
| 6 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 7 | HOSE 1/2BSP 1015mm 613/23100 | 1 | $147.32 | |||
| 9 | BACK NUT 1/2"BSP 1356/0204Z | 1 | $6.20 | |||
| 10 | HOSE 1/2BSP 1950mm 613/36018 | 1 | $153.11 | |||
| 10 | HOSE 1/2BSP 715mm 613/22800 | 1 | $134.47 | |||
| 11 | HOSE 1/2"BSP 1830mm 613/36011 | 1 | $158.38 | |||
| 11 | HOSE 1/2BSP 580mm 613/29600 | 1 | $107.10 | |||
| 12 | HOSE CLAMP 123/05836 | 1 | $13.75 | |||
| 13 | CLAMP PLATE 331/14805 | 1 | $56.16 | |||
| 14 | CAP SCREW M10x40 1391/3410Z | 1 | $2.38 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-E1-10-35-395146 E1-10-35 CIRCUIT, BUCKET RAM EXTRADIG DIPPER 15'6" PC
View Diagram -
DIAG-E1-10-25-395146 E1-10-25 CIRCUIT, BUCKET RAM MONO DIPPER 15' 6" PC
View Diagram -
DIAG-E1-11-31-395146 E1-11-31 CIRCUIT, AUXILIARY EXTENTION RAM EXTRADIG DIPPER 15'6" PC SIDESHIFT
View Diagram
