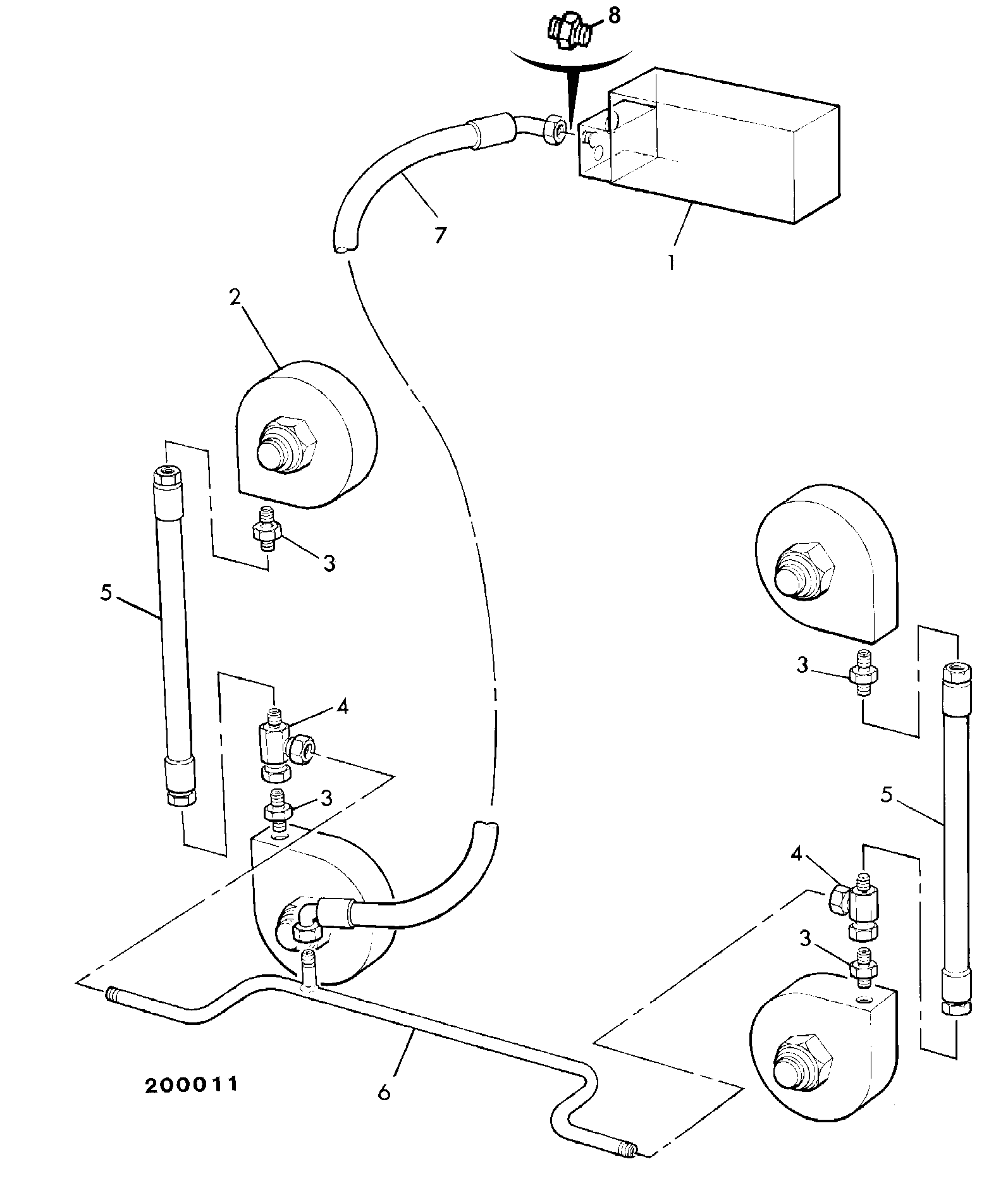

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| TUBE-2.4 METRES 647/02721 647/02703 | 1 | $5.44 | ||||
| 3 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 3A | O-RING 2401/0506 | 1 | $1.46 | |||
| 5 | HOSE 612/31200 | 1 | $64.04 | |||
| 6 | HOSE 612/31400 | 1 | $70.31 | |||
| 7 | MNTG BRACKET HOSE 290/00329 | 1 | $17.39 | |||
| 8 | (W) (P) ADAPTOR BULKHEAD (M/M) 816/10023 816/90057 | 1 | $8.37 | |||
| 8A | BACK NUT 3/8 BSP (3CX COMPACT) 1356/0203Z | 1 | $4.41 | |||
| 9 | PIPE ASSEMBLY 335/04680 | 1 | $583.37 | |||
| 10 | HOSE 3/8BSP 800mm 612/06500 | 1 | $61.06 | |||
| 11 | 'WASHER 5/8 EXT LOCK (W) (Pre-P) WASHER 1417/0016Z | 1 | $3.38 | |||
| 12 | HOSE 3/8BSP 600mm 612/30900 | 1 | $64.46 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-E1-11-1-394176-10637127 E1-11-1 CIRCUIT BUCKET JCB X PATTERN
View Diagram -

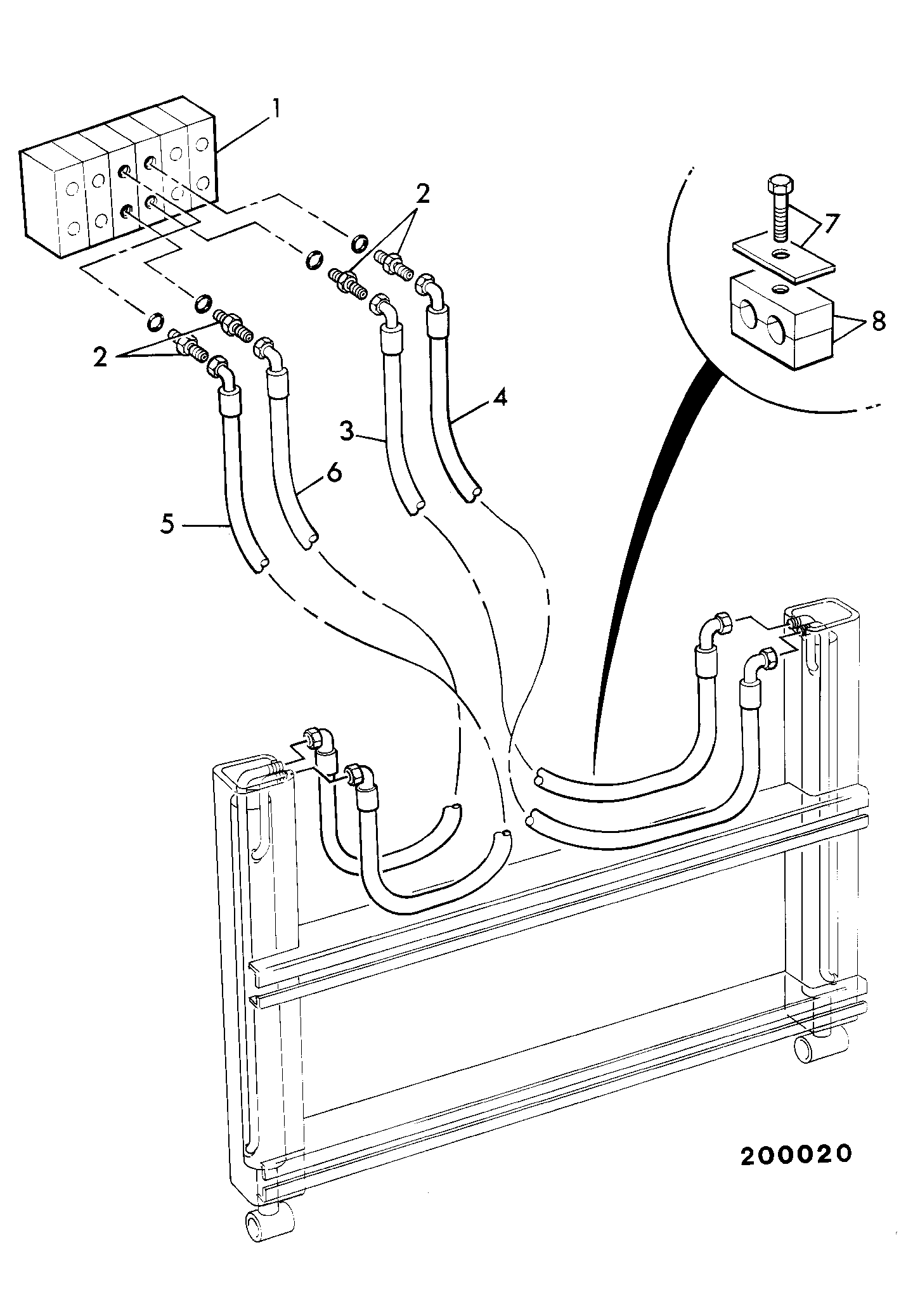

DIAG-E1-12-1-394176-10637131 E1-12-1 CIRCUIT, STABILISER
View Diagram -
DIAG-E1-13-1-394176 E1-13-1 CIRCUIT, HYDRACLAMP
View Diagram
