Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HOSE 1/2BSP 1585mm 613/36006 | 1 | $141.66 | ||||
| HOSE 1/2BSP 1950mm 613/36018 | 1 | $153.11 | ||||
| HOSE 1/2BSP 1950mm 613/72004 | 1 | $93.30 | ||||
| 1 | HOSE 1/2BSP 2880mm 629/27400 | 1 | $781.26 | |||
| 3 | PIPE CLUSTER 125/99100 | 1 | $1,650.36 | |||
| 4 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 5 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 6 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 7 | HOSE 1/2BSP 1015mm 613/23100 | 1 | $147.32 | |||
| 9 | BACK NUT 1/2"BSP 1356/0204Z | 1 | $6.20 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-

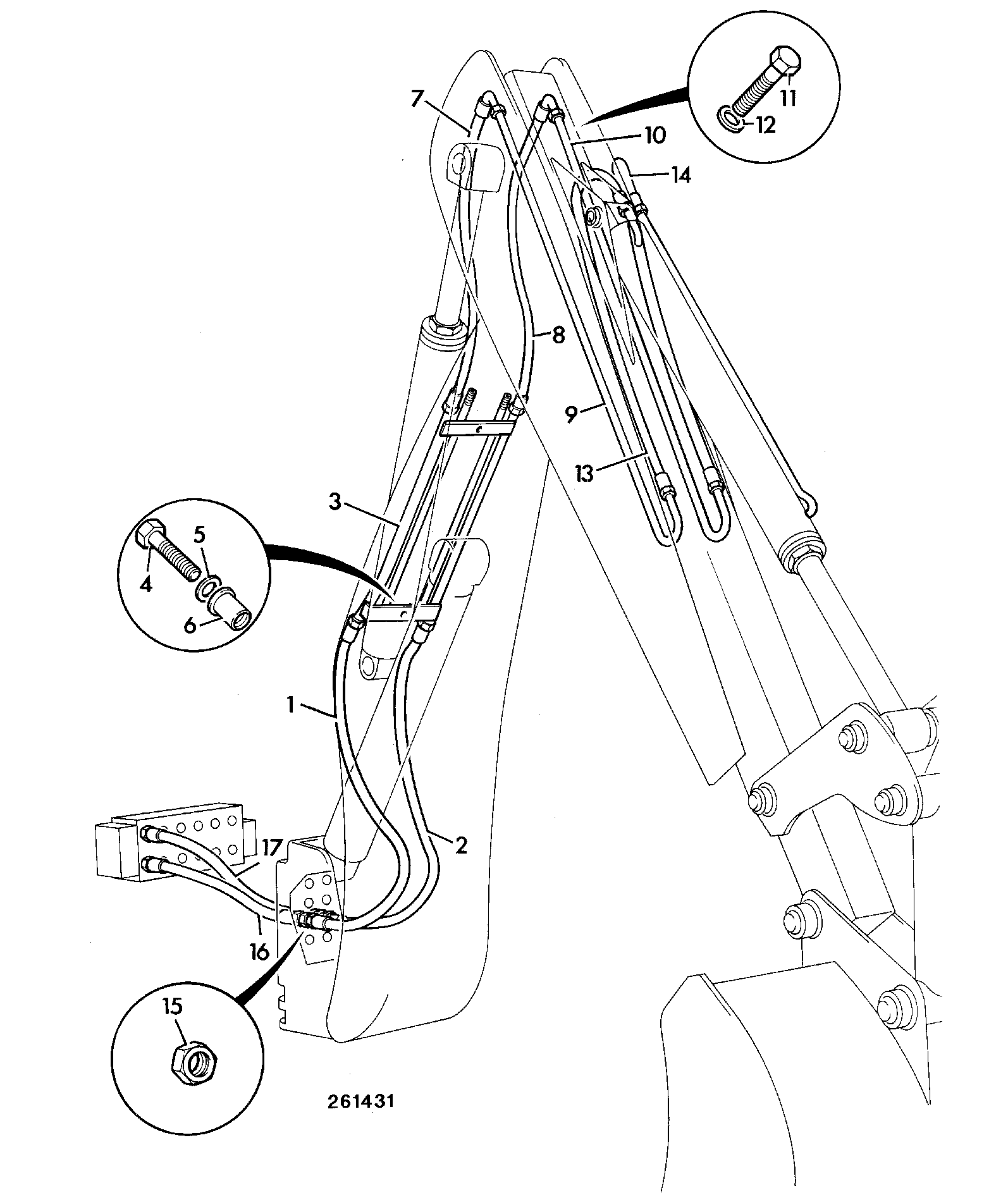

DIAG-E1-11-2-395137 E1-11-2 CIRCUIT, AUXILIARY EXTENTION RAM EXTRADIG DIPPER 1550
View Diagram -
DIAG-E1-10-31-395137 E1-10-31 CIRCUIT, BUCKET RAM EXTRADIG DIPPER 1550
View Diagram -
DIAG-E1-13-10-395137 E1-13-10 CIRCUIT, HYDRACLAMP SIDESHIFT V.FLOW PUMP
View Diagram
