Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR C/W FILTER (P545) 25/205300 816/13133 | 1 | $22.67 | |||
| 1 | PIPE ASSEMBLY SERV 335/02933 | 1 | $1,849.65 | |||
| 2 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 3 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 5 | SERVO HOSE 265/02145 | 1 | $80.03 | |||
| 6 | HOSE 265/02146 | 1 | $80.03 | |||
| 7 | SERVO HOSE 265/02147 | 1 | $80.12 | |||
| 8 | HOSE SERVO 265/02148 | 1 | $80.03 | |||
| 11 | HOSE 265/00548 | 1 | $80.77 | |||
| 11 | HOSE STEER 265/00549 | 1 | $108.47 | |||
| 20 | FILTER ADAPTOR 816/10168 | 1 | $71.27 | |||
| 21 | #4 BSP HP 1010mm B 611/24300 | 1 | $59.19 | |||
| 21A | HOSE 3/8BSP 1145mm 612/30200 | 1 | $46.08 | |||
| 21B | ADAPTOR 3/8"M-1/4"F 816/20044 | 1 | $14.18 | |||
| 22 | PLUG - 7/16"UNF 1745/0001 816/90534 | 1 | $49.89 | |||
| 22A | O-RING 2401/0503 | 1 | $0.54 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-E1-11-2-404482 E1-11-2 HOSE AND PIPEWORK SERVO CONTROLLER LOADER, UNDER CAB
View Diagram -
DIAG-E1-10-1-404482-15556465 E1-10-1 HOSE AND PIPEWORK SERVO CONTROLLER LOADER
View Diagram -

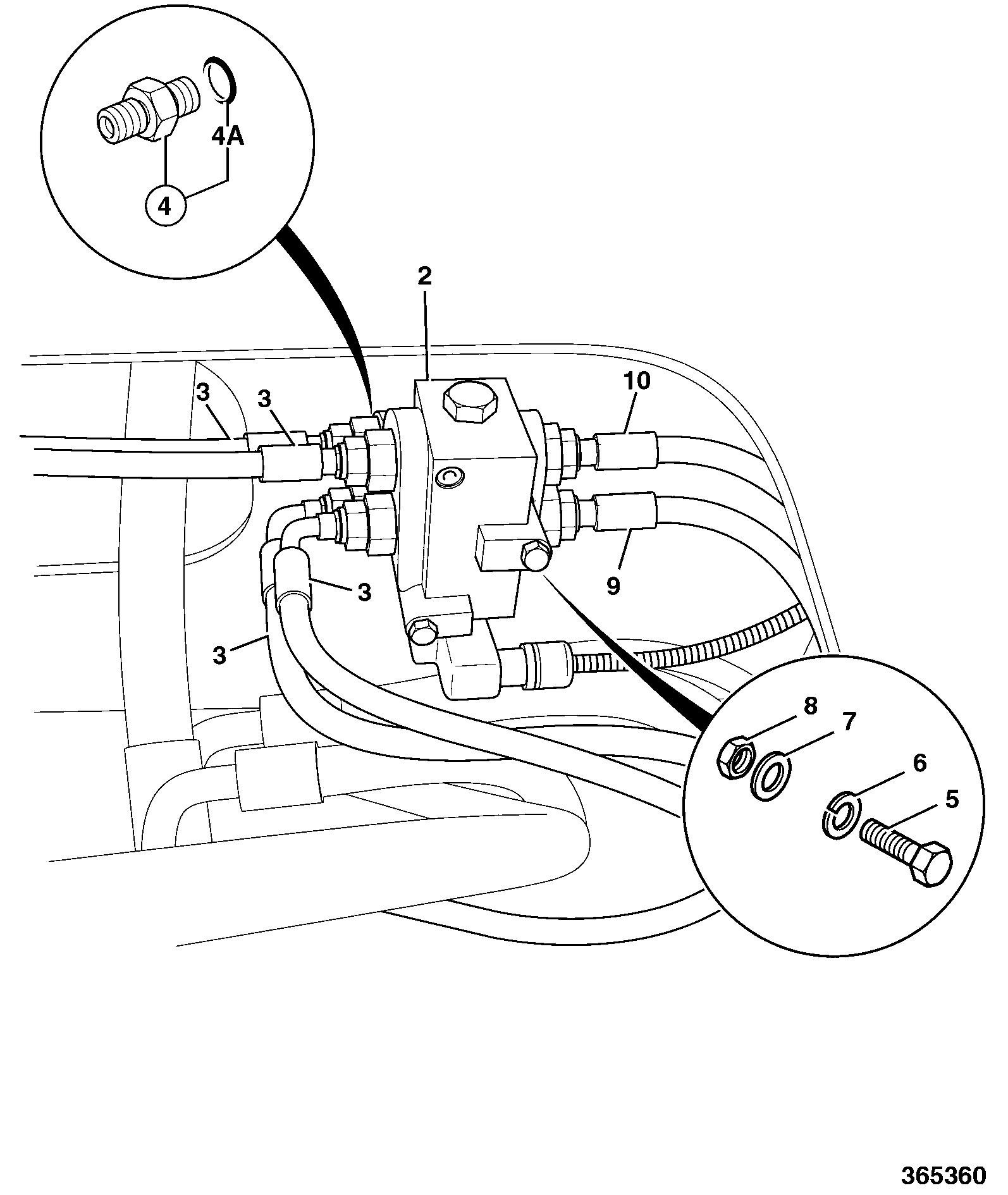

DIAG-E1-12-1-404482-15556473 E1-12-1 HOSE AND PIPEWORK DIVERTER VALVE
View Diagram
