Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | HOSE 3/8BSP 520mm 612/36500 | 1 | $163.20 | |||
| 3 | PIPE ASSY 161/00628 | 1 | $714.52 | |||
| 3 | W.A. FEED PIPES - L.H. 335/11664 | 1 | $595.18 | |||
| 4 | PIPE ASSY 161/00627 | 1 | $427.57 | |||
| 4 | W.A. FEED PIPES - R.H. 335/11665 | 1 | $967.43 | |||
| 5 | (P) (W) HOSE 3/8BSP 1120mm 612/26400 | 1 | $75.05 | |||
| 6 | BOLT M6x40 1315/3210Z | 1 | $0.81 | |||
| 7 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 8 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 9 | PIPE W.A.FEED PIPE 161/00679 | 1 | $869.73 | |||
| 10 | SET SCREW M8x50 1315/0312Z | 1 | $4.45 | |||
| 11 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 12 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 13 | 3/8 BSP HP HOSE-66 612/01900 | 1 | $79.80 | |||
| 14 | HOSE -06 HP BSP 470mm B 612/24600 | 1 | $121.32 | |||
| 15 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 16 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-E1-11-1-401896-13635590 E1-11-1 CIRCUIT,STABILISER
View Diagram -

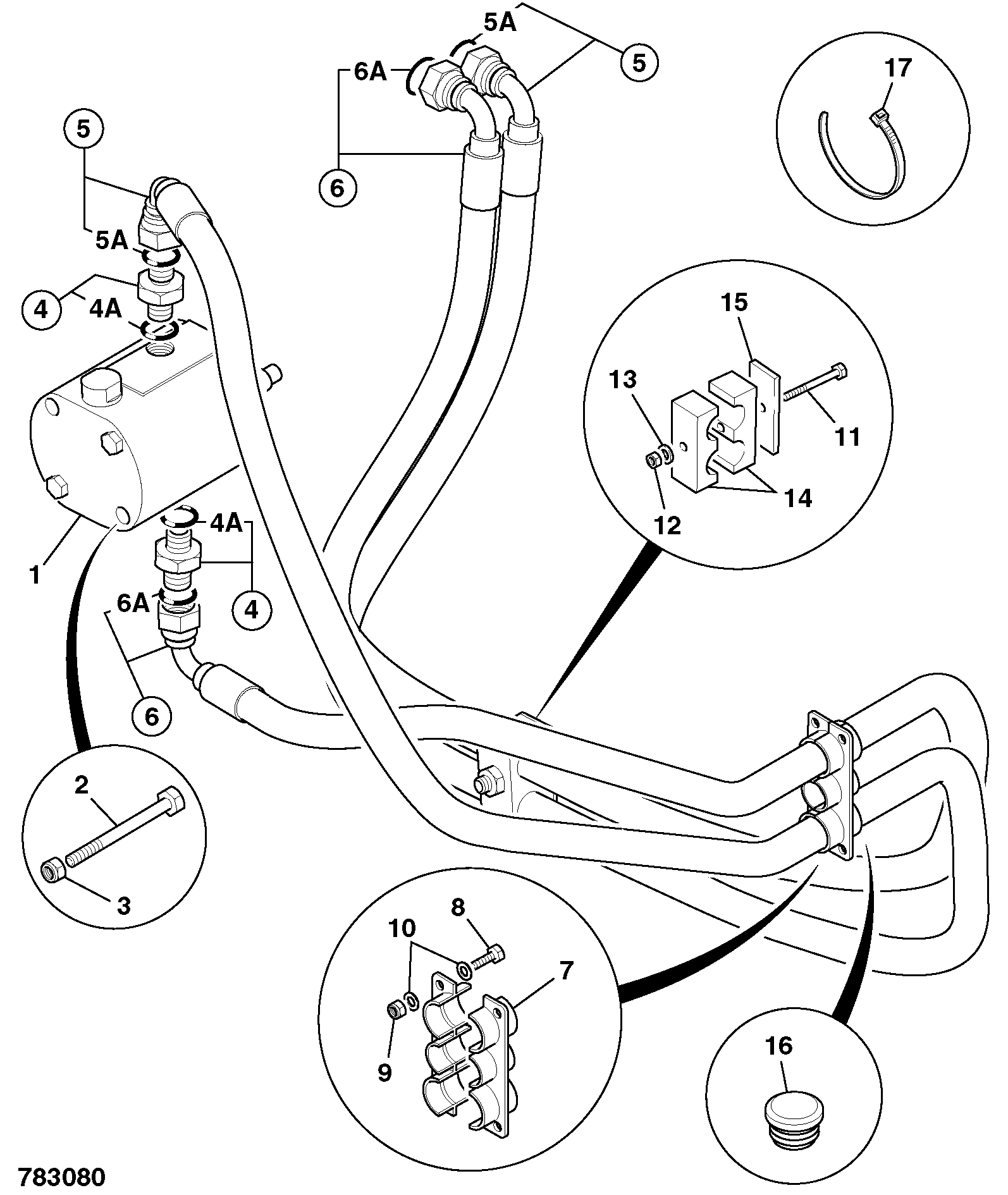

DIAG-E1-13-1-401896-13635595 E1-13-1 CIRCUIT,COOLING FAN NON-REVERSING
View Diagram -
DIAG-E1-7-4-401896 E1-7-4 CIRCUIT,SERVO HOSES AUXILLIARY VALVE (CONTINUED),PERSONNEL PLATFORM
View Diagram
