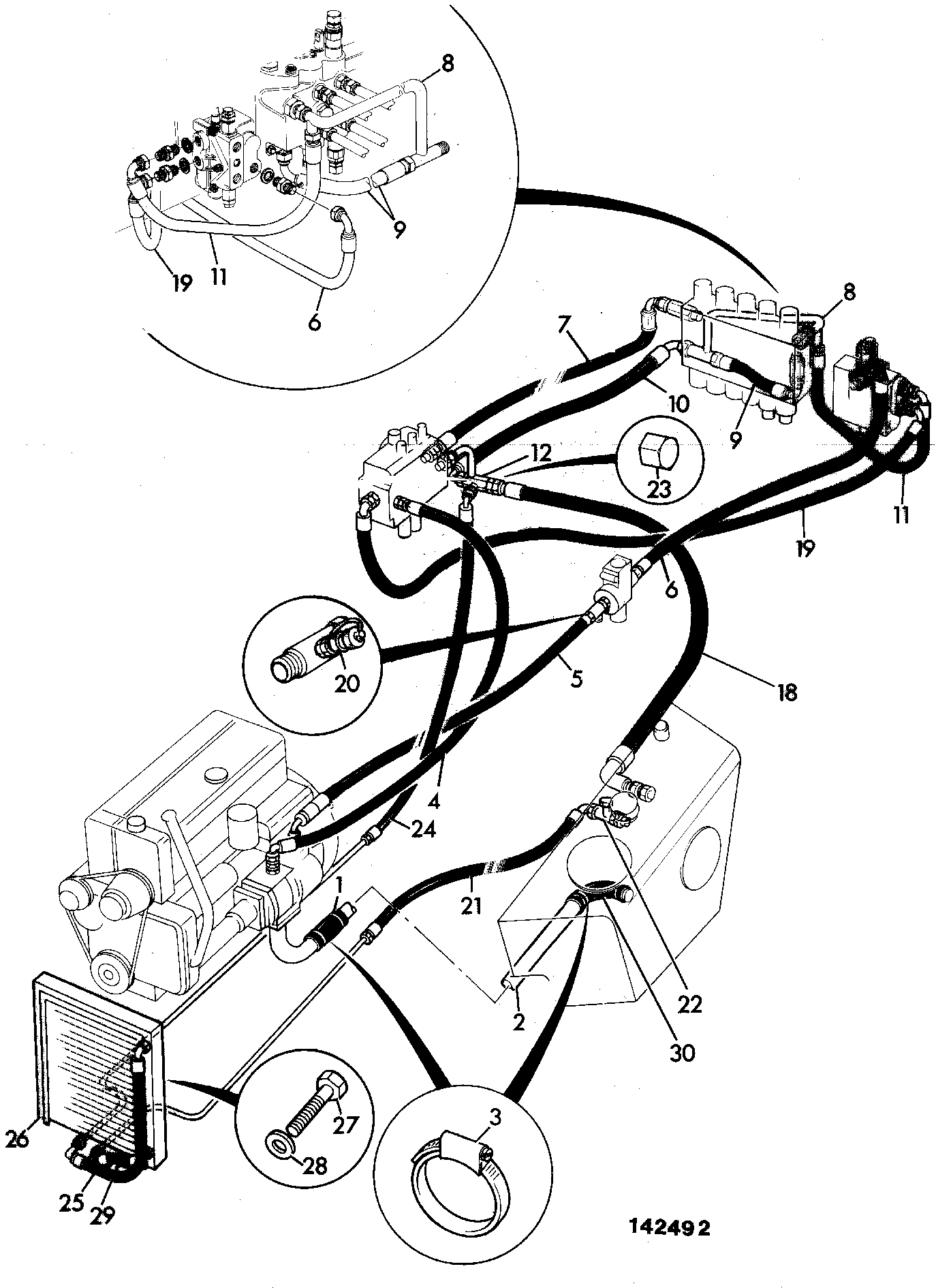

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| RING -BACKUP 123/03129 | 1 | $27.32 | ||||
| 2 | PIPE-SUCTION 830/00539 | 1 | $1,536.43 | |||
| 3 | CLIP - WORMDRIVE 60/80mm(KANBAN) 2201/0013 | 1 | $0.00 | |||
| 5 | HOSE 5/8BSP 950mm 336/Y2209 614/20900 | 1 | $153.58 | |||
| 6 | HOSE 5/8BSP 1380mm 614/23500 | 1 | $85.60 | |||
| 7 | HOSE 209/72500 | 1 | $88.14 | |||
| 9 | 3/4" BSP HOSE 635/31400 | 1 | $92.14 | |||
| 10 | HOSE 637/51500 | 1 | $188.38 | |||
| 11 | HOSE 32-1/2 90/90 633/50500 | 1 | $108.03 | |||
| 18 | HOSE 1" BSP 637/31600 | 1 | $199.40 | |||
| 20 | HOSE 614/44000 | 1 | $304.74 | |||
| 21 | ADAPTOR TEE 816/50079 | 1 | $42.00 | |||
| 22 | ADAPTOR G3/4AxG3/4 M/F 1612/2054 | 1 | $12.95 | |||
| 23 | BRACKET-MOUNTING 123/03379 | 1 | $90.92 | |||
| 24 | BOLT 5/16UNFx2-1/4" 1305/3116Z | 1 | $2.65 | |||
| 25 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 26 | NUT 5/16UNF STD SELF LOCK 1340/0103Z | 1 | $2.54 | |||
| 27 | HOSE 635/30100 | 1 | $128.87 | |||
| 30 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $0.37 | |||
| 32 | HOSE 5/8 STR/90 21 1/2 634/30500 | 1 | $88.33 | |||
| 33 | HOSE 635/10600 | 1 | $50.47 | |||
| 35 | HOSE ELBOW 834/00414 | 1 | $127.97 | |||
| 36 | PRESSURE TEST POINT 1/4" 45/905000 45/MM7149 | 1 | $36.65 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-E1-1-6-395156-11307689 E1-1-6 CIRCUIT, NEUTRAL BREAKER BUILD OPTIONAL
View Diagram -
DIAG-E1-1-5-395156-11307685 E1-1-5 CIRCUIT, NEUTRAL AUXILIARY BUILD
View Diagram -
DIAG-E1-1-5-395156 E1-1-5 CIRCUIT, NEUTRAL AUXILIARY BUILD
View Diagram
