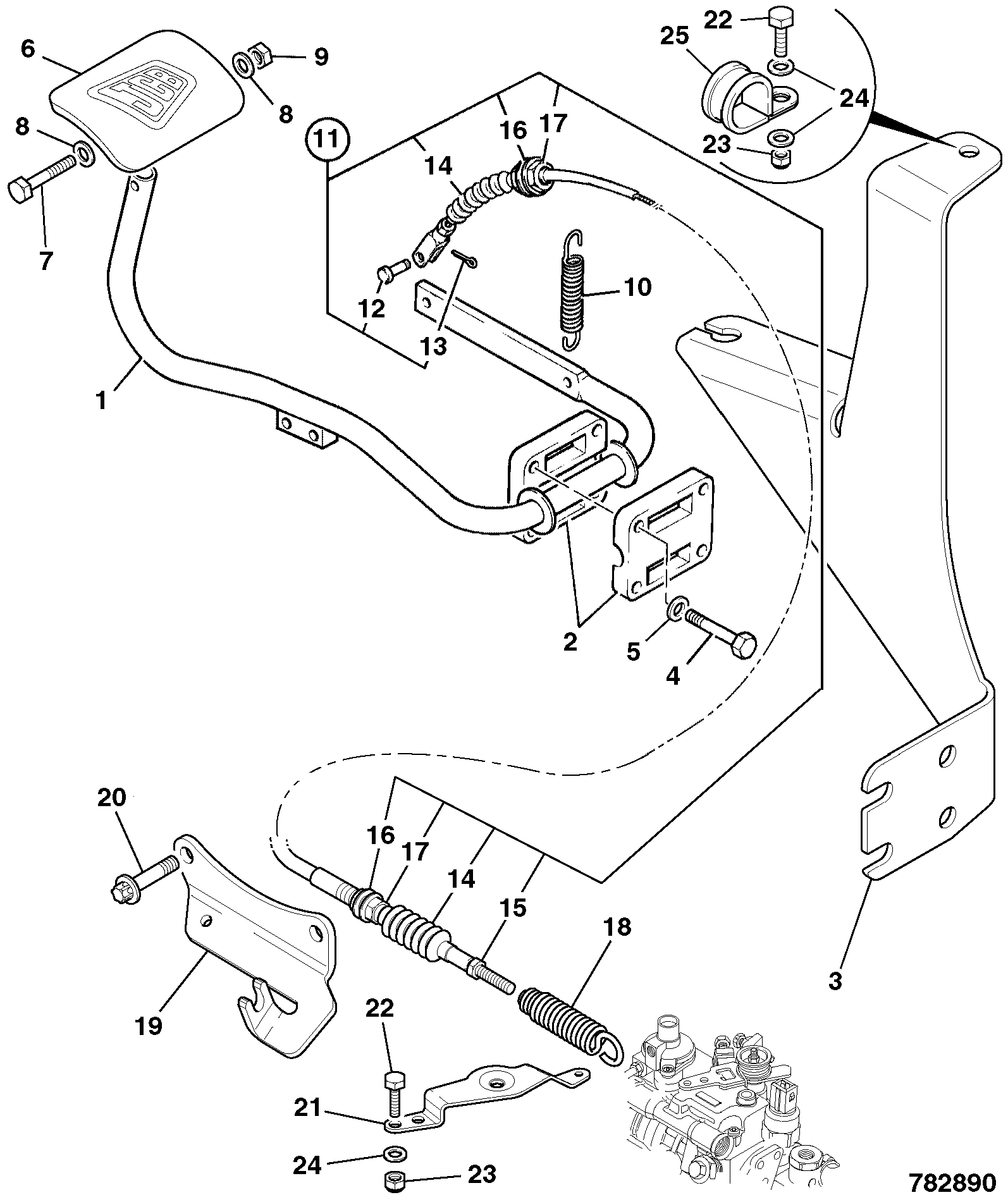

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BLANKING CAP 3/4 BSP 816/90274 | 1 | $37.88 | ||||
| BLANKING CAP 3/8 BSP 816/90044 | 1 | $17.85 | ||||
| BULKHEAD PLATE - FAN HYDS 331/60650 | 1 | $97.07 | ||||
| COVER PLATE and bolt 821/00169 821/00169A | 1 | $1.92 | ||||
| SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | ||||
| SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | ||||
| TWO HOSE CLAMP T4F (PAIR) 821/00234 | 1 | $13.26 | ||||
| WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | ||||
| 1 | LOW PRESS.HOSE 150MM 648/02902 | 1 | $78.45 | |||
| 2 | SUCTION PIPE 830/13730 | 1 | $424.73 | |||
| 3 | CLIP - WORMDRIVE 60/80mm(KANBAN) 2201/0013 | 1 | $7.78 | |||
| 4 | HOSE 3/4BSP 500mm 629/80039 | 1 | $179.85 | |||
| 5 | Cap Filler Breathe 331/18130 | 1 | $268.17 | |||
| 6 | Hose 1" 1550MM 834/11348 | 1 | $234.77 | |||
| 7 | Element Hyd filter 10 Micron 333/C4690 | 1 | $153.79 | |||
| 8 | Head Filter 32/926054 | 1 | $103.65 | |||
| 9 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 15 | HOSE 5/8 BSP 670MM 614/80122 | 1 | $90.60 | |||
| 16 | HOSE 5/8 BHEAD-STR 2260 614/80171 | 1 | $226.48 | |||
| 17 | HOSE 1/4 ST-90 3165 611/80310 | 1 | $64.07 | |||
| 18 | HOSE 5/8 BHEAD-90 1780 614/80169 | 1 | $142.63 | |||
| 19 | Hose 5/8"BSP 1585 332/C1348 | 1 | $111.46 | |||
| 20 | HOSE 1/2BSP 2160mm 613/21300 | 1 | $86.63 | |||
| 24 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 26 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 27 | HOSE 1/4 ST-90 3165 332/C0963 | 1 | $158.94 | |||
Showing 1 to 28 of 28 parts
