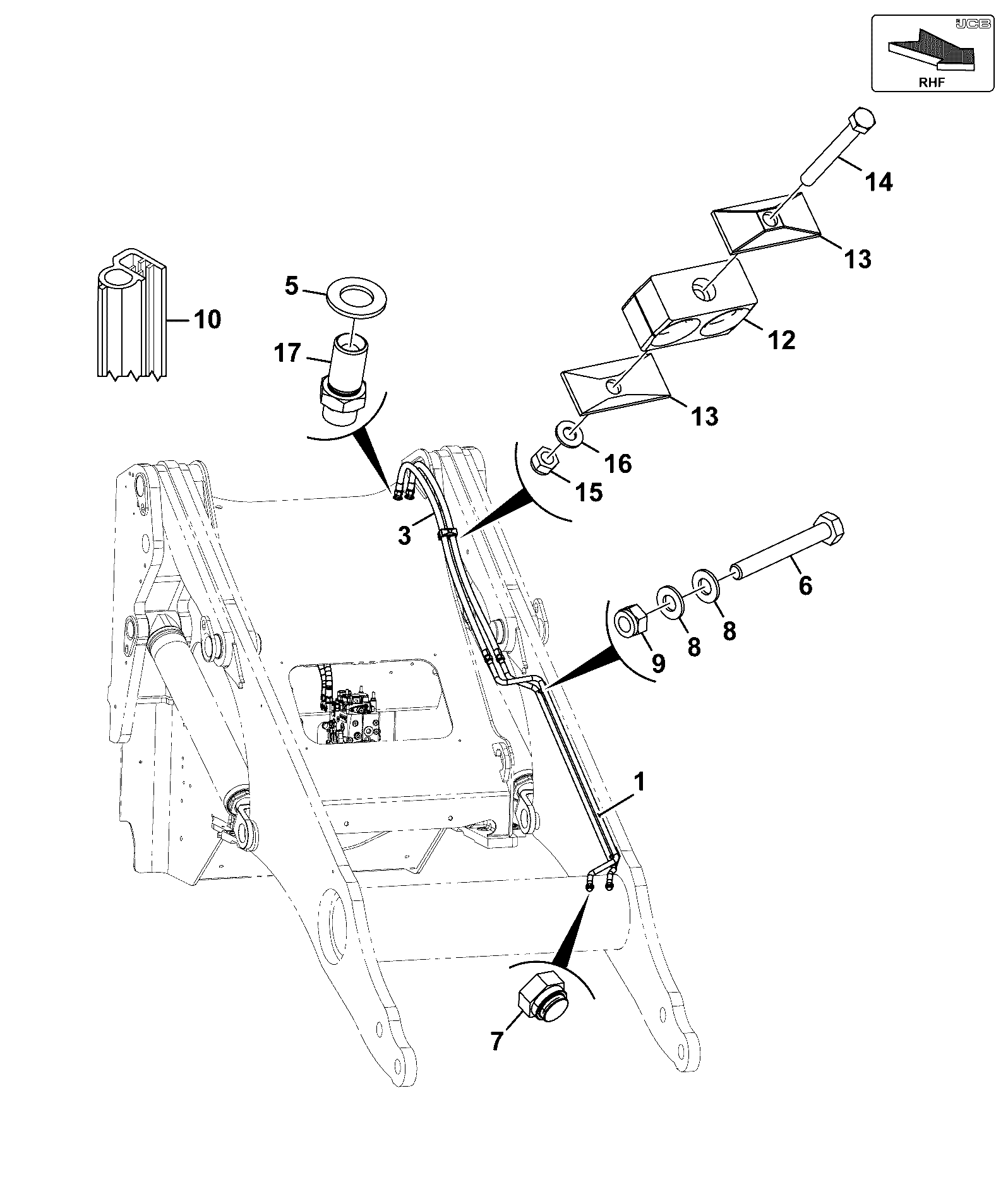

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BLANK CAP 1BSP 816/90205 | 1 | $37.41 | ||||
| 1 | W.A. LIFT RAM PIPEWORK 335/06384 | 1 | $1,306.03 | |||
| 2 | PIPE RAM SHOVEL 268/20022 | 1 | $1,506.67 | |||
| 3 | HOSE 3/4BSP 1020mm 615/01200 | 1 | $425.30 | |||
| 4 | HOSE 616/80068 | 1 | $135.48 | |||
| 4 | HOSE 616/80101 | 1 | $163.13 | |||
| 5 | HOSE 209/71200 | 1 | $241.91 | |||
| 5 | HOSE-HYD 615/02900 | 1 | $363.27 | |||
| 7 | SET-SCREW M10 L-_40mm 1315/0410D | 1 | $2.49 | |||
| 8 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 9 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 10 | HOSE 616/80055 | 1 | $314.60 | |||
| 11 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 13 | FLANGE SPLIT KRJ2682 | 1 | $18.47 | |||
| 13 | O RING 2403/0210 | 1 | $0.38 | |||
| 14 | CAP SCREW M10x30 1391/3408D | 1 | $4.12 | |||
| 15 | SPRING-WASHER M10 1425/0008D | 1 | $0.44 | |||
| 16 | O-RING - 32.51 x 3.81 PU9 828/00417 828/00021 | 1 | $25.21 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-E1-0-50-404866 E1-0-50 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 4 SPOOL PROPORTIONAL CONTROL HT
View Diagram -
DIAG-E1-0-40-404866 E1-0-40 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES 3 SPOOL STANDARD CONTROL ZX
View Diagram -
DIAG-E1-4-10-404866 E1-4-10 CIRCUIT LOADER END AUXILIARY
View Diagram
