Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE 834/00520 | 1 | $126.98 | |||
| 3 | HOSE 269/30438 | 1 | $52.24 | |||
| 4 | ADAPTOR 816/00464 | 1 | $11.19 | |||
| 6 | HOSE 613/80017 | 1 | $80.99 | |||
| 7 | SET SCREW M16x40 1315/0710Z | 1 | $8.92 | |||
| 8 | CAP SCREW M10x60 1391/3414Z 1391/3414 | 1 | $18.70 | |||
| 9 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 10 | O-RING - 32.51 x 3.81 PU9 828/00417 828/00021 | 1 | $25.21 | |||
| 11 | WASHER M16 SPRING 1425/0011Z | 1 | $1.49 | |||
| 12 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 17 | HOSE 18" 1/4 90/90 611/40700 | 1 | $40.18 | |||
| 23 | FLANGE SPLIT KRJ2682 | 1 | $18.47 | |||
| 35 | FLANGE ADAPTER 933/17900 | 1 | $41.94 | |||
| 36 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 37 | HOSE 616/80067 | 1 | $432.30 | |||
| 47 | PLUG - 7/16"UNF 1745/0001 816/90534 | 1 | $49.89 | |||
| 47A | O-RING 2401/0503 | 1 | $0.54 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-

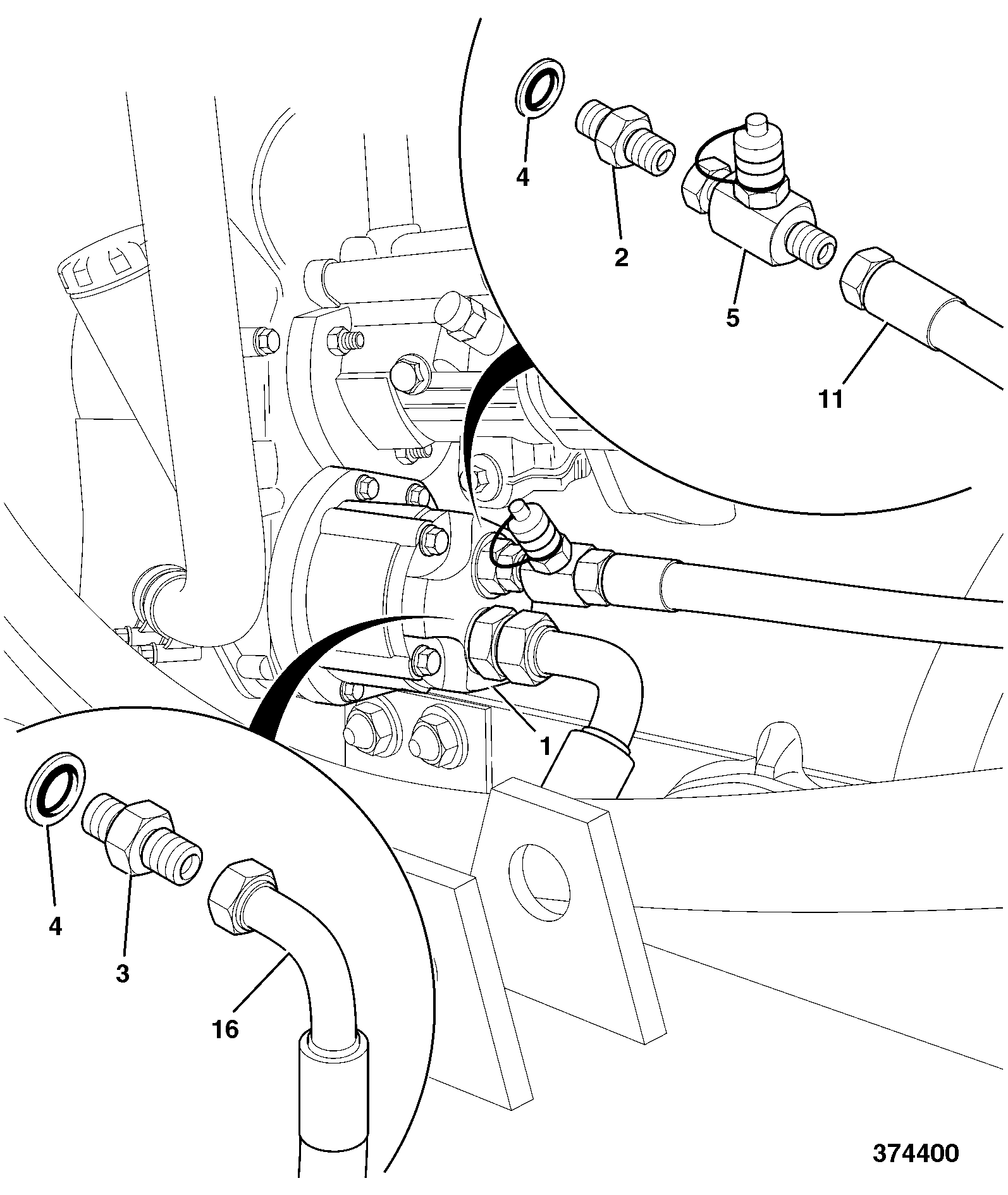

DIAG-E1-2-1-404599-15625243 E1-2-1 HOSE AND PIPEWORK GEAR PUMP
View Diagram -
DIAG-E1-4-1-404599 E1-4-1 HOSE AND PIPEWORK STEER VALVE
View Diagram -
DIAG-E1-5-1-404599-15625250 E1-5-1 HOSE AND PIPEWORK LOADER VALVE
View Diagram
