Kubota M5950 E03900 FLYWHEEL Parts Diagram
Exploded-view parts diagram "E03900 FLYWHEEL" for the Kubota M5950 and Kubota M5950DT. 16 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FLYWHEEL, ASSY 15571-25013 15571-25010 | 1 | $1,762.02 | |||
| 020 | GEAR, RING 15451-63820 16141-63820 | 1 | $391.00 | |||
| 030 | BRG BALL RADIAL1 08141-06303 | 1 | $15.03 | |||
| 040 | BOLT, FLYWHEEL 15521-25160 15521-25162 | 1 | $46.81 | |||
| 050 | WASHER, FLYWHEEL 15571-25170 Discontinued | 1 | $32.19 | |||
| 060 | FLYWHEEL HSNG AS 15451-04600 | 1 | $867.13 | |||
| 070 | PIN, STRAIGHT 05012-01016 | 1 | $1.51 | |||
| 080 | BOLT 01073-51435 | 1 | $2.36 | |||
| 090 | BOLT 01073-51400 | 1 | $15.20 | |||
| 100 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.36 | |||
| 110 | PLATE 15451-04670 Discontinued | 1 | $3.68 | |||
| 120 | STUD 15451-91500 | 1 | $10.67 | |||
| 130 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 140 | COVER 15451-04680 | 1 | $121.88 | |||
| 150 | NUT, CAP ** 15451-92332 15451-92330 | 1 | $8.21 | |||
| 160 | GASKET 15451-96660 | 1 | $5.04 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

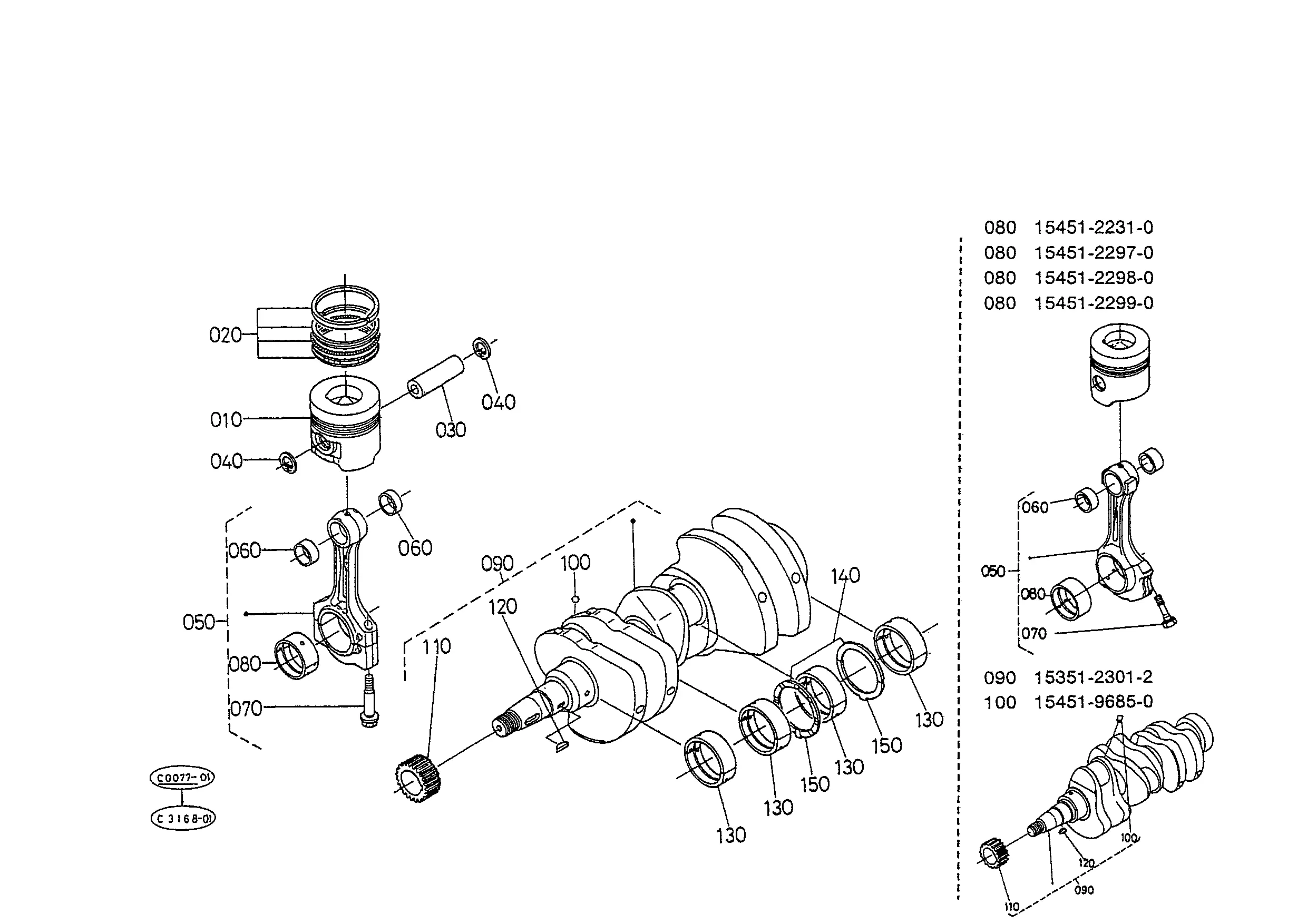

DIAG-E03800-85754 E03800 PISTON AND CRANKSHAFT
View Diagram -
DIAG-E04000-85754 E04000 OIL PUMP
View Diagram -

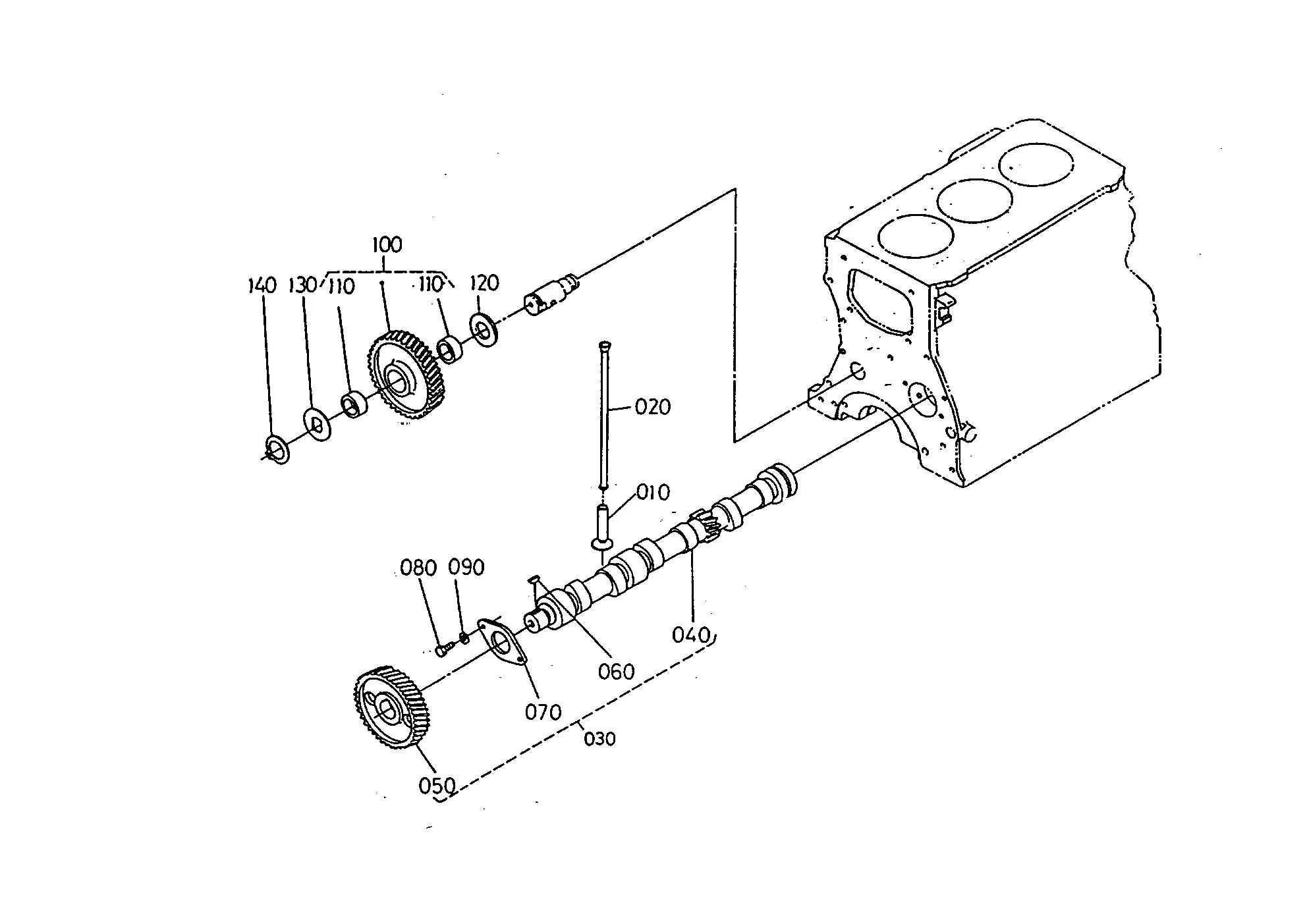

DIAG-E03700-85754 E03700 CAMSHAFT
