Kubota RTV900XTW ACCESSORY E02000 BRAKE MASTER CYLINDER Parts Diagram

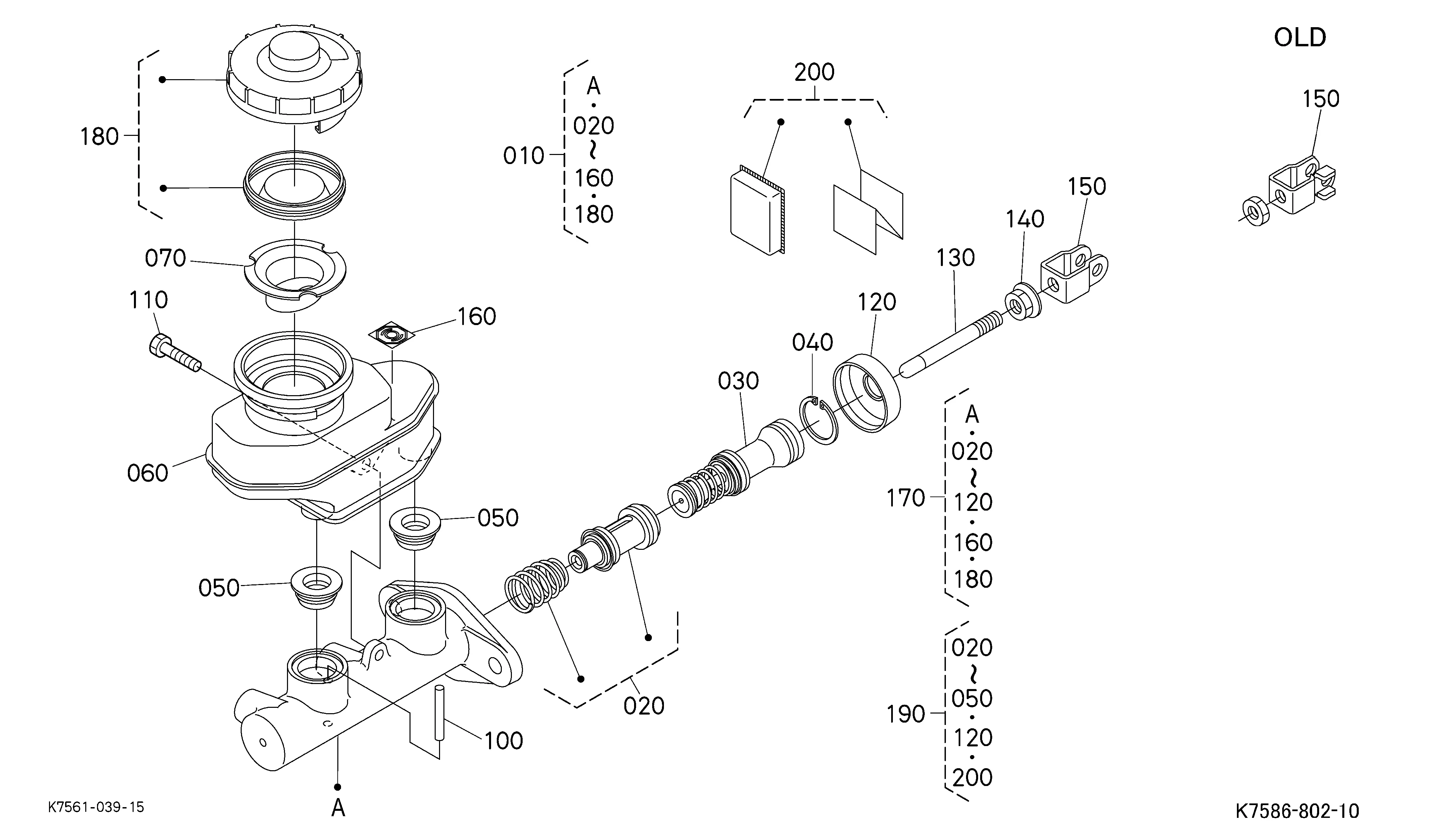

Exploded-view parts diagram "E02000 BRAKE MASTER CYLINDER" for the Kubota RTV900XTW ACCESSORY. 6 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY MASTER CYLI K7561-43150 K7567-43150 | 1 | $349.00 | |||
| 020 | Flange Bolt 01754-50825 | 1 | $5.09 | |||
| 030 | JOINT 05112-50822 05122-50822 | 1 | $2.26 | |||
| 030 | PIN, JOINT *** 05112-50825 05122-50825 | 1 | $2.26 | |||
| 040 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 050 | Spring Pin 05511-00218 05511-50218 | 1 | $0.36 | |||
Showing 1 to 6 of 6 parts
Related Assemblies
-
DIAG-E01500-86236 E01500 BRAKE CYLINDER(RIGHT)
View Diagram -
DIAG-E02500-86236 E02500 BRAKE MASTER CYLINDER [COMPONENT PARTS]
View Diagram -
DIAG-E01000-86236 E01000 BRAKE CYLINDER(LEFT)
View Diagram
