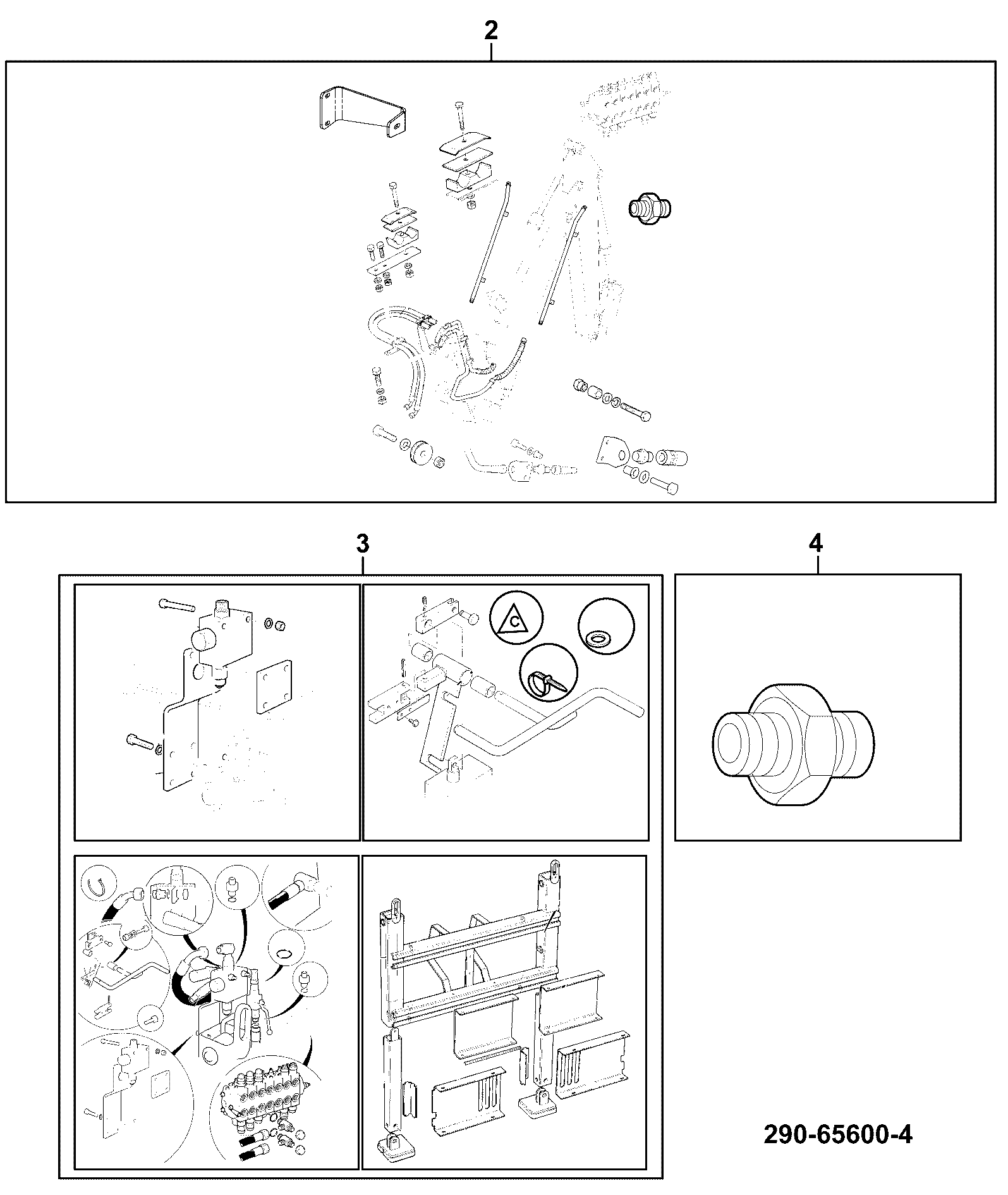

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 6 | CLIP WORMDRIVE WF 25/40mm 333/R7966 | 1 | $10.95 | |||
| 7 | HOSE LOW PRESSURE 635/80078 | 1 | $118.51 | |||
| 8 | 1/4 BSP HOSE 1200m 611/22200 332/G2546 | 1 | $84.03 | |||
| 9 | Adapter 816/90135 | 1 | $52.11 | |||
| 10 | BACK NUT 1/4" BSP 1356/0002Z | 1 | $20.56 | |||
| 11 | HOSE 04BSP HP 1035mm B 332/V2670 | 1 | $55.97 | |||
| 12 | HOSE, 3/8" BSP - 740mm LG 612/35500 | 1 | $48.90 | |||
| 13 | CABLE TIE 385MM 001/00233 270/00106 | 1 | $0.58 | |||
| 14 | HOSE 611/48500 | 1 | $59.74 | |||
| 15 | HOSE 3/4 BSP UHP 570B 334/P0003 | 1 | $246.70 | |||
| 16 | HOSE 3/4 BSP UHP 595B 334/P2727 | 1 | $246.22 | |||
| 17 | HOSE - 12 BSP HP 760mm B 65AG/BA076 | 1 | $157.25 | |||
| 18 | LOW PRESS HOSE 635/32500 | 1 | $211.49 | |||
| 19 | HOSE 3/4 BSP LP 142B 25AP/BA142 | 1 | $121.88 | |||
| 20 | HOSE 1/2BSP 480mm 613/07300 | 1 | $80.24 | |||
| 21 | HOSE -06 BSP HP 270mm B 612/25600 | 1 | $94.12 | |||
| 22 | HOSE -12 LP BSP 1250mm B 635/32700 | 1 | $305.30 | |||
| 23 | HOSE 614/25200 | 1 | $59.95 | |||
| 24 | ABI HOSE 1/4 BSP HP 380B 333/L6528 | 1 | $42.31 | |||
| 25 | HIGH PRESSURE HOSE 616/80145 | 1 | $177.93 | |||
| 26 | O-RING 2401/0508 | 1 | $3.28 | |||
| 27 | 'Adapter Pressure Test Point 9/16-18UNF 45/908000 | 1 | $0.00 | |||
| 28 | CHECK VALVE 25/221216 | 1 | $172.86 | |||
| 30 | STRIP - EDGING 30m Roll - XUSE 926/09500 | 1 | $28.99 | |||
| 32 | HOSE SUCTION 834/00687 | 1 | $124.72 | |||
| 33 | HOSE 04BSP HP 715mm C 332/V2440 | 1 | $55.29 | |||
| 34 | HOSE 3/8BSP 1750mm 612/33700 | 1 | $82.53 | |||
| 35 | HOSE 06BSP HP 105mm B 332/V2517 | 1 | $65.77 | |||
| 36 | 9DAPTOR TEE 816/00344 816/90043 | 1 | $24.83 | |||
| 37 | ADAPTOR G3/4A X 7/8 SAE 1620/2058 | 1 | $5.52 | |||
| 38 | BLANKING CAP 816/00197 816/90022 | 1 | $32.13 | |||
| 39 | SPLIT FLANGE 331/40348 | 1 | $125.82 | |||
| 41 | ADAP ELBOW 3/4 816/90163 | 1 | $28.85 | |||
| 42 | HOSE - 12 BSP HP 680mm B 65AG/BA068 | 1 | $157.25 | |||
| 43 | WASHER LOCK M10 823/10261 | 1 | $5.93 | |||
Showing 1 to 35 of 35 parts
Related Assemblies
-
DIAG-E0-7-1-394195 E0-7-1 HYDRAULIC INSTALLATION ASSEMBLIES AUXILIARY HAND HELD
View Diagram -
DIAG-E0-20-1-394195 E0-20-1 HYDRAULIC INSTALLATION ASSEMBLIES AUXILIARY HAND HELD
View Diagram -
DIAG-D200-1-1-394195 D200-1-1 ENGINE CONTROL INSTALLATION ASSEMBLIES THROTTLE ASSEMBLY
View Diagram
