Kubota M7040DT D43000 RANGE GEAR SHIFT FORK Parts Diagram

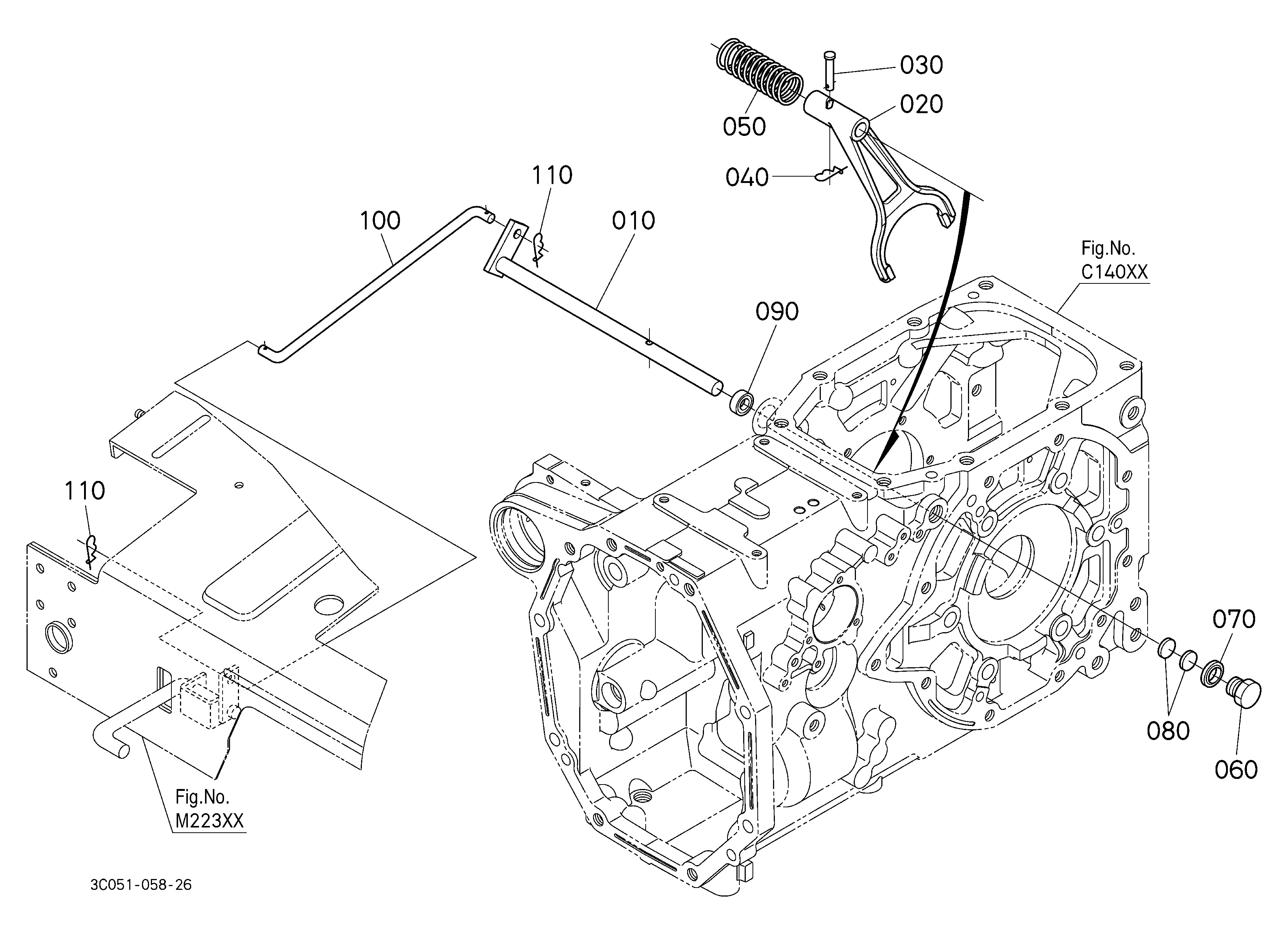

Exploded-view parts diagram "D43000 RANGE GEAR SHIFT FORK" for the Kubota M7040DT, Kubota M7040F and Kubota M7040HD. 15 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ROD,FORK 3C001-29860 3C001-29862 | 1 | $65.09 | |||
| 020 | Pin 05411-10628 05411-00628 | 1 | $1.51 | |||
| 020 | PIN 05411-10630 05411-00630 | 1 | $1.51 | |||
| 030 | FORK RANGE SHIFT 3C001-29870 | 1 | $260.75 | |||
| 040 | BALL (CREEP SPEE 15231-36360 07715-03211 | 1 | $0.33 | |||
| 050 | SPRING 3A152-29420 | 1 | $6.66 | |||
| 060 | ARM, RANGE SHIFT 3C001-30050 3C001-30053 | 1 | $100.63 | |||
| 060 | ARM, RANGE SHIFT 3C011-30050 | 1 | $66.82 | |||
| 070 | SEAL, OIL 52200-15670 | 1 | $8.66 | |||
| 080 | LEVER RANGE SHIF 3C001-29850 | 1 | $45.74 | |||
| 080 | LEVER, RANGE SHI 3C254-29850 | 1 | $90.33 | |||
| 090 | Pin 05411-00635 | 1 | $0.80 | |||
| 100 | PIN, SPRING 30442-15310 | 1 | $1.51 | |||
| 110 | STOPPER 34070-24350 | 1 | $3.35 | |||
| 120 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
Showing 1 to 15 of 15 parts
