Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY LEVER, BRAK 34070-44850 34070-44810 | 1 | $239.06 | |||
| 020 | BUSH 34070-44890 | 1 | $23.89 | |||
| 030 | ASSY LEVER,BRAKE 34070-44860 34070-44910 | 1 | $246.24 | |||
| 050 | SHAFT, BRAKE LH 34070-44870 | 1 | $43.83 | |||
| 060 | SHAFT, BRAKE RH 34070-44880 | 1 | $43.83 | |||
| 070 | Washer 04011-10200 04011-50200 | 1 | $0.60 | |||
| 080 | Circlip Retaining Ring 04612-10200 04612-00200 | 1 | $0.61 | |||
| 090 | ASSY ROD, BRAKE 34070-44800 | 1 | $60.33 | |||
| 100 | ROD BRAKE LOWER 34070-44840 | 1 | $38.46 | |||
| 110 | ROD, CLUTCH 34070-44460 | 1 | $48.24 | |||
| 120 | TURNBUCKLE 32350-28983 32350-28980 | 1 | $15.57 | |||
| 130 | Nut 02172-50100 02116-50100 | 1 | $0.14 | |||
| 140 | PIN, JOINT 05112-51035 05122-51035 | 1 | $3.37 | |||
| 150 | PIN, JOINT 05122-61028 05122-71028 | 1 | $4.83 | |||
| 160 | M10 Plain Washer 04013-60100 04013-70100 | 1 | $0.60 | |||
| 165 | COLLAR TA240-56470 | 1 | $16.20 | |||
| 170 | PIN, SPLIT 05511-50318 | 1 | $0.36 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-

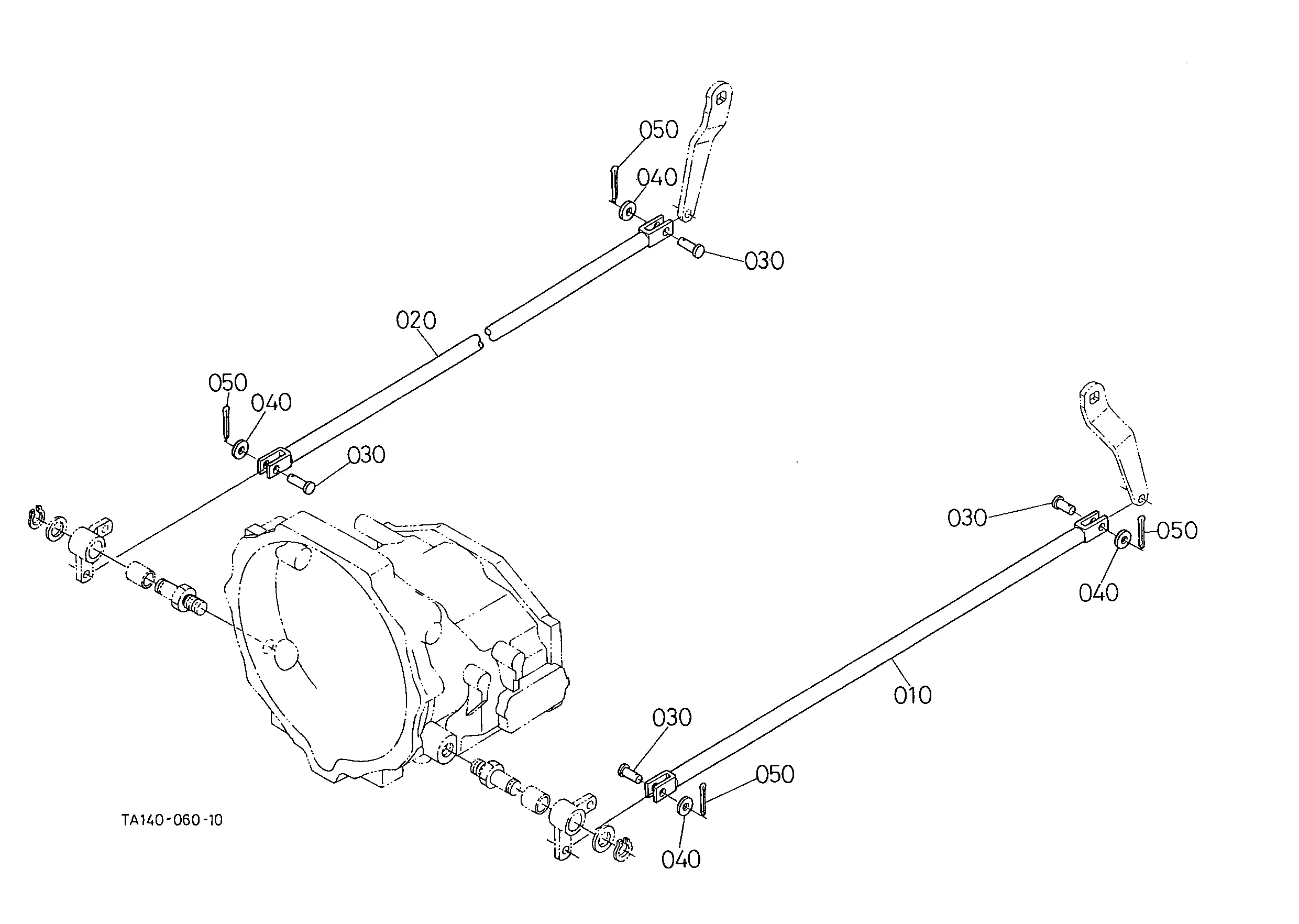

DIAG-D40501-85342 D40501 BRAKE ROD 1 [EXCEPT HST TYPE]
View Diagram -
DIAG-D41001-85342 D41001 BRAKE ROD 2 [MANUAL T/M TYPE]
View Diagram -
DIAG-D40100-85342 D40100 BRAKE
View Diagram
