Kubota KX033-4 D31100 PILOT VALVE (TRAVEL) (COMPONENT PARTS) Parts Diagram

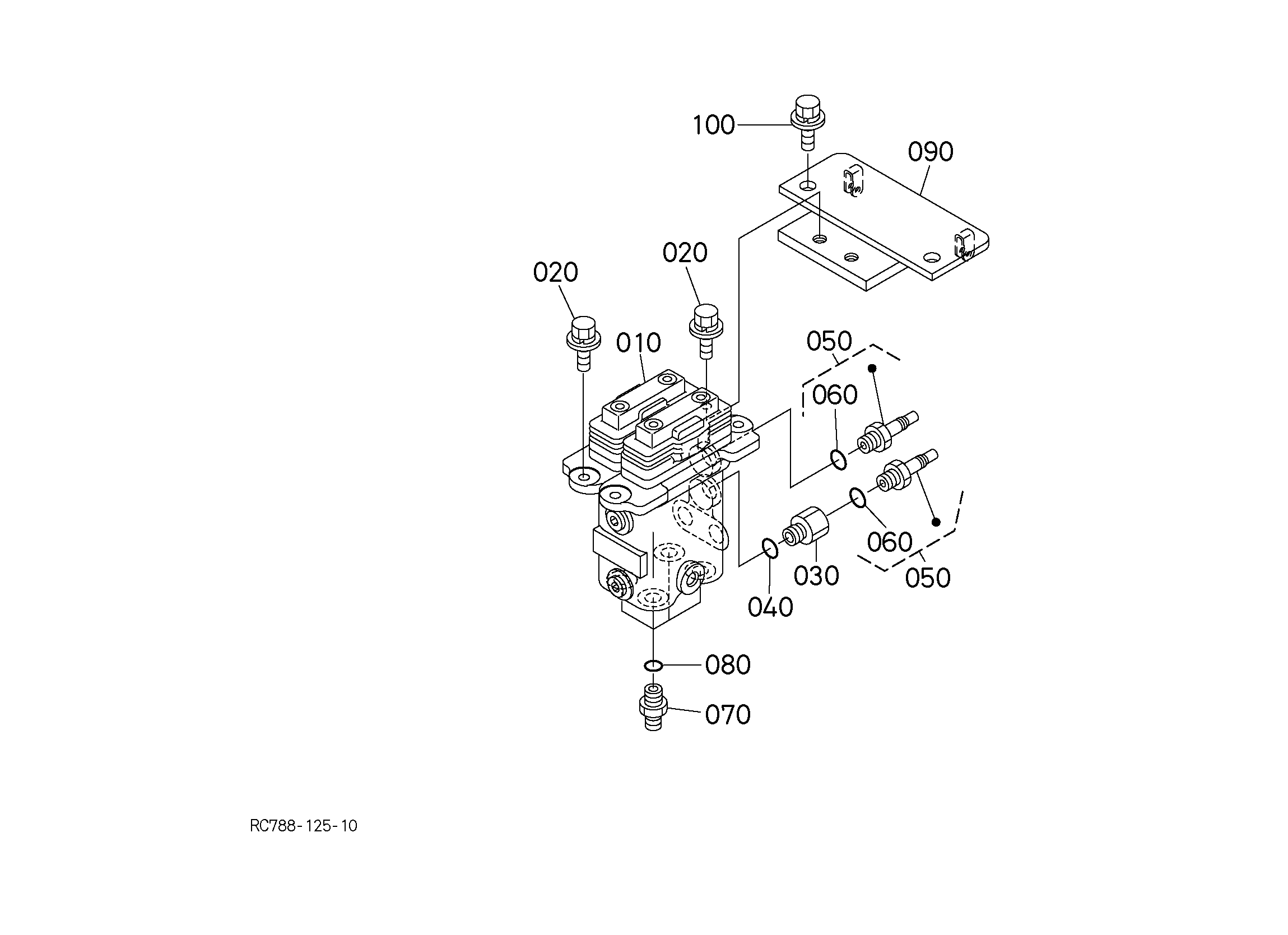

Exploded-view parts diagram "D31100 PILOT VALVE (TRAVEL) (COMPONENT PARTS)" for the Kubota KX033-4. 27 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY VALVE,PV RD451-61405 RD451-61406 | 1 | $2,377.48 | |||
| 020 | SHIM(0.1) RD459-97810 | 1 | $22.70 | |||
| 030 | SHIM(0.2) RD459-97820 | 1 | $22.70 | |||
| 040 | SEAT RD451-97830 | 1 | $94.20 | |||
| 050 | SLEEVE RD451-97840 | 1 | $154.69 | |||
| 060 | PIN RD451-97863 | 1 | $204.90 | |||
| 070 | ASSY BOOT RD451-97873 | 1 | $106.01 | |||
| 080 | SHIM RD451-97880 | 1 | $33.47 | |||
| 090 | SHIM RD451-97890 | 1 | $33.47 | |||
| 100 | COVER RD451-97902 | 1 | $1,031.13 | |||
| 110 | CAM RD451-97912 | 1 | $530.05 | |||
| 120 | SPRING RD451-97920 | 1 | $60.20 | |||
| 130 | SPRING RD451-97930 | 1 | $60.20 | |||
| 140 | COLLAR RD451-97940 | 1 | $33.47 | |||
| 150 | PLUG RD451-97952 | 1 | $189.66 | |||
| 155 | COLLAR RD451-97410 | 1 | $33.47 | |||
| 160 | PLUG RD451-97962 | 1 | $136.84 | |||
| 170 | BOLT, HEX-SOC-HD RD451-97422 | 1 | $51.80 | |||
| 180 | BOLT, HEX 01350-10412 | 1 | $1.30 | |||
| 190 | SCREW,CONE POINT RD451-97430 | 1 | $45.67 | |||
| 200 | Plain Washer 04011-50060 04012-50060 | 1 | $0.36 | |||
| 210 | PIN, STRAIGHT RD451-97970 | 1 | $90.52 | |||
| 220 | O-Ring Seal for Fuel Filter, Hydraulic Lines & Clutch Components 04811-00100 04816-00100 | 1 | $1.07 | |||
| 230 | O RING RD451-97990 | 1 | $52.48 | |||
| 240 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 250 | O RING RD451-97980 | 1 | $52.48 | |||
| 260 | ASSY PUSHER RD451-97850 | 1 | $124.00 | |||
Showing 1 to 27 of 27 parts
