Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | STEERING COLUMN TILT/TELESCOPIC 334/G2923 | 1 | $2,114.82 | |||
| 2 | CLAMP LEVER 162/03203 | 1 | $84.20 | |||
| 3 | THRUST BEARING ASSY 160/13861 | 1 | $28.06 | |||
| 4 | TENSION PIN 3mm X 55mm L 2102/0422 | 1 | $1.69 | |||
| 5 | CLEVIS PIN /12 913/10214 | 1 | $9.75 | |||
| 6 | SAFETY FASTENER 821/00211 | 1 | $4.97 | |||
| 7 | COLUMN RETAINER 123/00161 | 1 | $12.75 | |||
| 8 | RESILIENT MOUNT 141/00936 | 1 | $17.97 | |||
| 9 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 10 | PLAIN WASHER M10 823/00326 | 1 | $1.78 | |||
| 13 | CIRCLIP - OPTIMAS PART! Line side 821/00190 | 1 | $0.54 | |||
| 14 | SPACER PLATE (P68) 400/K9736 | 1 | $1.67 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-

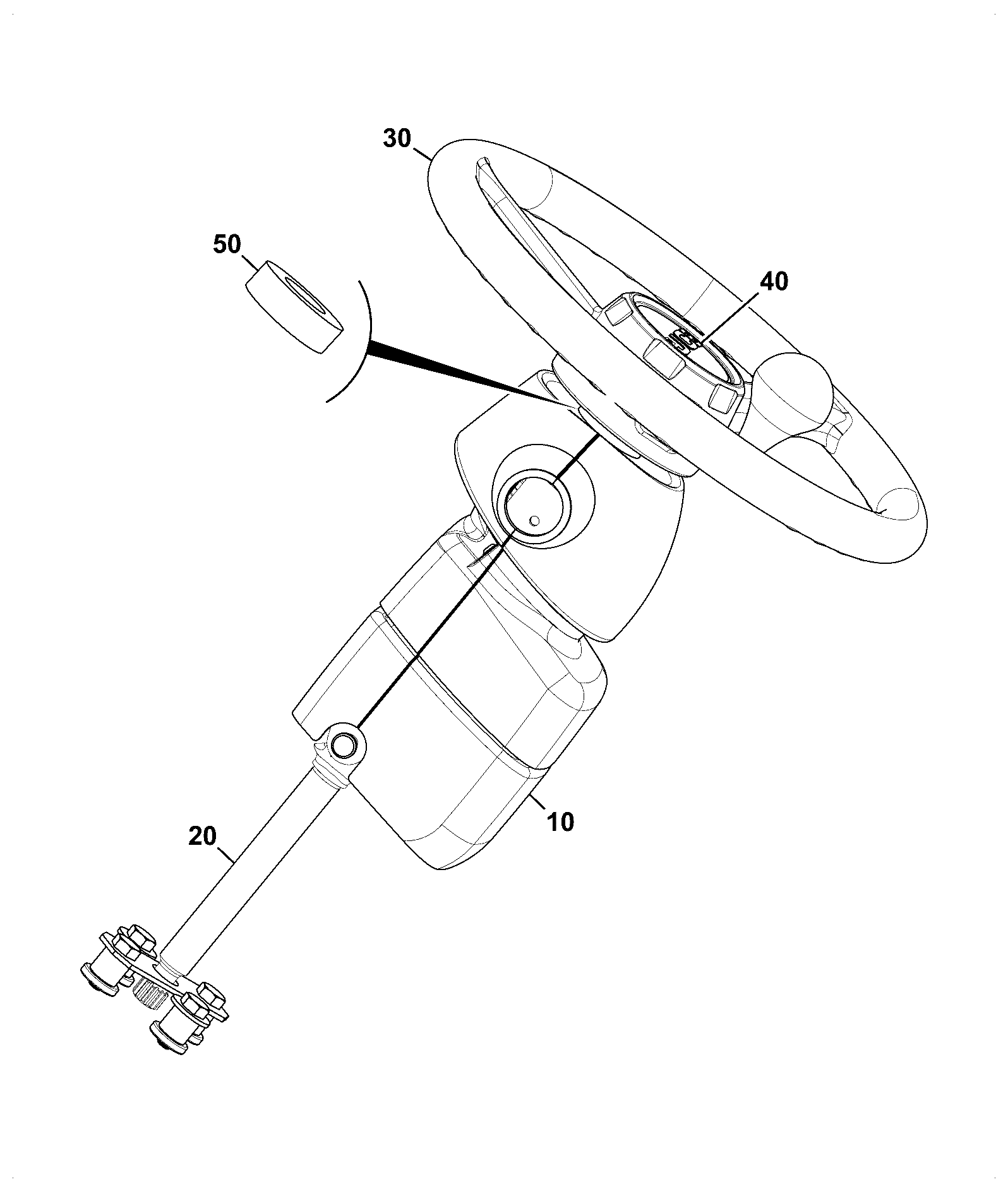

DIAG-D300-20-1-400747 D300-20-1 STEERING INSTALLATION ASSEMBLIES STEERING COLUMN TILT/TELESCOPIC
View Diagram -

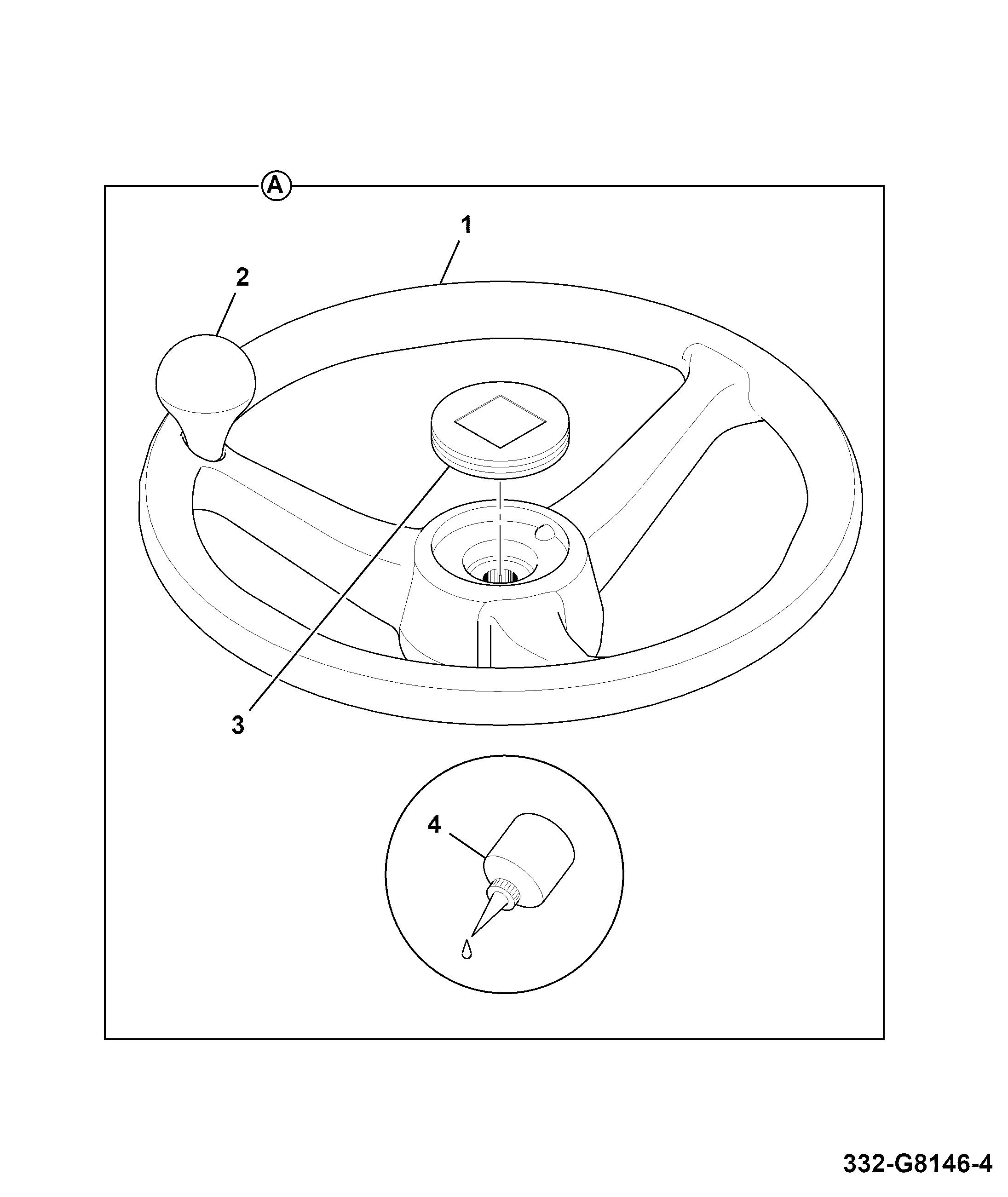

DIAG-D320-5-1-400747 D320-5-1 STEERING WHEEL WITH SPINNER KNOB
View Diagram -
DIAG-D210-80-1-400747 D210-80-1 THROTTLE CONTROL INSTALLATION INCHING PEDAL
View Diagram
