Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BLANKING PLUG-SPINNR KNOB 123/03847 | 1 | $1.95 | ||||
| 3 | STEERING WHEEL BLACK 331/27410 | 1 | $508.54 | |||
| 3 | STEERING WHEEL STE 333/Y5768 | 1 | $237.14 | |||
| 4 | (W) (P) HUB CAP-STEERING WHEEL 331/27487 | 1 | $5.93 | |||
| 4 | COVER 116/00408 | 1 | $140.58 | |||
| 5 | (W) (P) SPINNER KNOB 331/27411 | 1 | $33.14 | |||
| 5 | SPINNER KNOB BODY 123/00491 | 1 | $11.60 | |||
| 6 | BEARING THRUST 831/00129 | 1 | $38.89 | |||
| 7 | (P) WOODRUFF KEY G18/2 | 1 | $1.43 | |||
| 8 | PIN TENSION 2102/0415 | 1 | $0.00 | |||
| 9 | TENSION PIN 3mm X 55mm L 2102/0422 | 1 | $1.69 | |||
| 10 | WASHER 7/8in MEDIUM PLAIN BRIGHT 1411/0009D | 1 | $6.47 | |||
| 11 | NUT, THIN 5/8 UNF 1340/0602Z 1340/0602D | 1 | $0.78 | |||
| 12 | WASHER 5/8" SMALL 1410/0007D | 1 | $1.16 | |||
| 13 | SPINNER KNOB SPNDL 150/32303 | 1 | $197.58 | |||
| 15 | NUT 5/16UNF STD SELF LOCK 1340/0103Z | 1 | $2.54 | |||
| 16 | SHIM 0.5mm 819/00047 | 1 | $0.00 | |||
| 17 | COLUMN 191/00763 | 1 | $2,246.07 | |||
| 18 | Carrier bearing 191/87000 | 1 | $2,233.96 | |||
| 18A | BEARING 917/02000 | 1 | $54.60 | |||
| 19 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.00 | |||
| 20 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 21 | PIN PIVOT 295/00172 | 1 | $55.73 | |||
| 22 | SAFETY FASTENER 821/00211 | 1 | $4.97 | |||
| 23 | OILITE ROLLER 831/00096 | 1 | $8.83 | |||
| 24 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 25 | (P) FIBRE WASHER 823/00388 | 1 | $11.99 | |||
| 26 | CLAMP LEVER M10 162/02997 | 1 | $84.00 | |||
| 27 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
| 28 | FLEXIBLE COUPLING 331/36009 | 1 | $110.30 | |||
| 29 | SET-SCREW M_8 L-_40mm 1315/0310D | 1 | $17.79 | |||
| 31 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 33 | CIRCLIP - OPTIMAS PART! Line side 821/00190 | 1 | $0.65 | |||
| 34 | PLATE 191/00765 | 1 | $113.38 | |||
| 35 | SET-SCREW 1315/0101D | 1 | $5.00 | |||
| 36 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
Showing 1 to 36 of 36 parts
Related Assemblies
-
DIAG-D3-1-1-399268 D3-1-1 STEERING COLUMN FIXED
View Diagram -
DIAG-E1-1-1-399268 E1-1-1 CIRCUIT NEUTRAL WITH HYDRAULIC OIL COOLER
View Diagram -

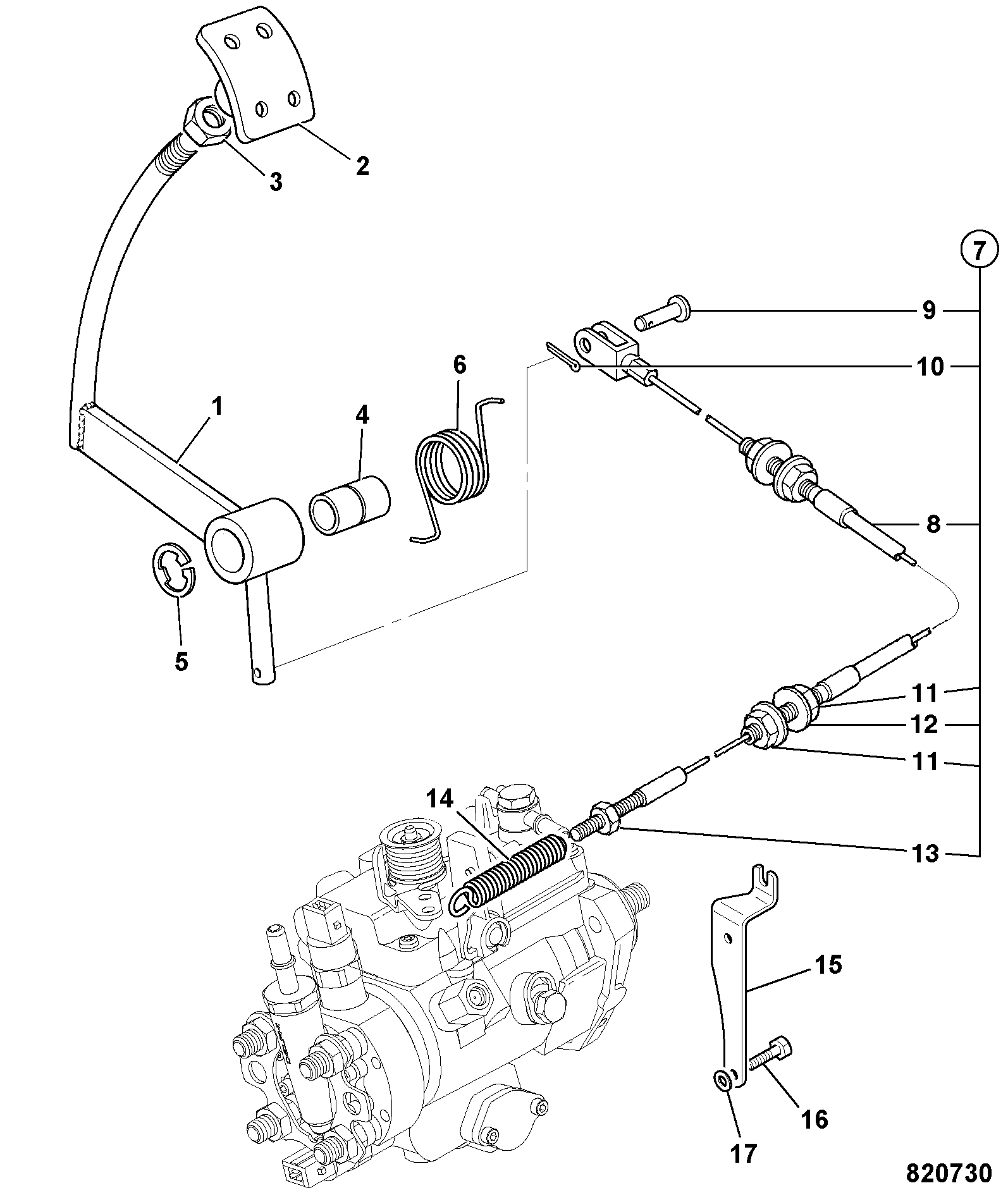

DIAG-D2-1-1-399268 D2-1-1 CONTROL, THROTTLE
View Diagram
