Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (W) (P) HUB CAP-STEERING WHEEL 331/27487 | 1 | $5.93 | ||||
| (W) (P) SPINNER KNOB 331/27411 | 1 | $33.14 | ||||
| 1 | Column Steering 296/00009 | 1 | $1,834.84 | |||
| 2 | M6 LOW PROFILE HEX BOLLHO (BR3) 826/10879 | 1 | $7.92 | |||
| 3 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.00 | |||
| 4 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 5 | (P) (W) (P) STEER VV.OSPC 160.A/SHOCK 35/411500 | 1 | $3,828.47 | |||
| 7 | BEARING ASSY 295/20648 | 1 | $246.28 | |||
| 8 | (P) STEERING WHEEL GA purchased 331/61629 | 1 | $263.09 | |||
| 9 | COLUMN RETAINER 331/38802 | 1 | $54.73 | |||
| 10 | CIRCLIP - OPTIMAS PART! Line side 821/00190 | 1 | $0.65 | |||
| 11 | (P) WOODRUFF KEY G18/2 | 1 | $1.43 | |||
| 12 | NUT, THIN 5/8 UNF 1340/0602Z 1340/0602D | 1 | $0.78 | |||
| 13 | WASHER M16 PLAIN 1420/0011D | 1 | $0.91 | |||
| 14 | FLEXIBLE COUPLING 331/36009 | 1 | $110.30 | |||
| 15 | CIRCLIP EXTERNAL 2203/0028 | 1 | $0.23 | |||
| 16 | RESILIENT MOUNT 141/00936 | 1 | $17.97 | |||
| 17 | WASHER 7/16 LARGE 1412/0004D | 1 | $2.75 | |||
| 18 | BOLT M10x35 1315/3409D | 1 | $8.02 | |||
| 19 | SET-SCREW M_8 L-_40mm 1315/0310D | 1 | $17.79 | |||
| 20 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 21 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 22 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 23 | 1/4BSP HP HOSE 2350mm 611/30100 | 1 | $107.91 | |||
| 24 | HOSE 1/2BSP 1060mm 613/32400 | 1 | $57.21 | |||
| 25 | (P) HOSE 1/2 BSP 1700LG 633/80017 | 1 | $76.79 | |||
| 26 | HOSE 3/8 BSP H.P 3300 LG. 612/80183 | 1 | $105.23 | |||
| 27 | 524 HOSE 3/8 3400LG 612/80182 | 1 | $115.24 | |||
| 28 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 29 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 31 | (P) (W) (P) 1/2 BSP HOSE 633/80009 | 1 | $41.45 | |||
| 32 | ADAPTOR G1/2A M/M 1604/2053 | 1 | $3.63 | |||
Showing 1 to 32 of 32 parts
Related Assemblies
-

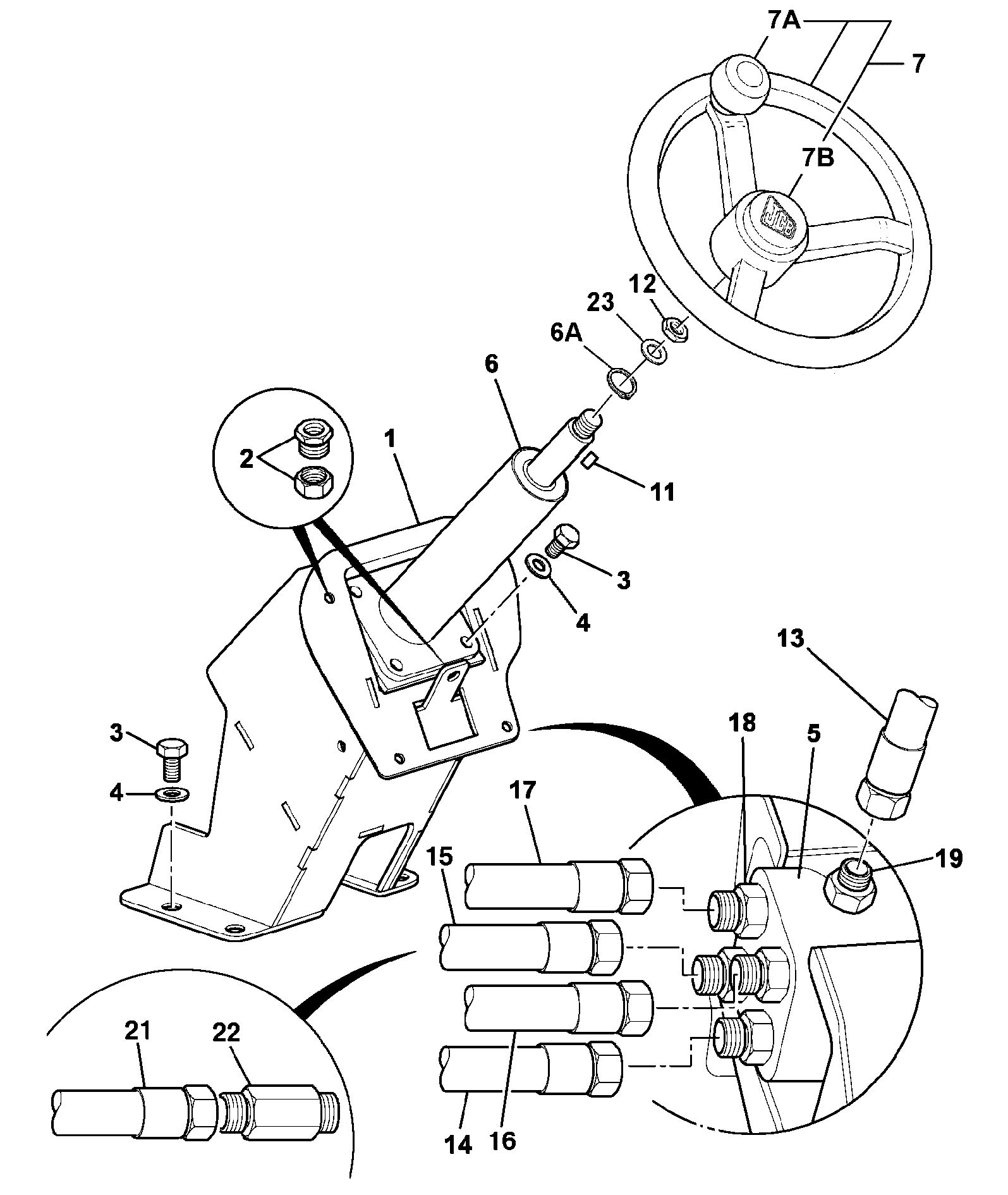

DIAG-D3-1-1-400577-12837001 D3-1-1 STEERING COLUMN .
View Diagram -
DIAG-E1-1-1-400577 E1-1-1 CIRCUIT,NEUTRAL STANDARD HYDRAULICS
View Diagram -
DIAG-D3-1-1-400577-12836999 D3-1-1 STEERING COLUMN
View Diagram
