Scroll to zoom Click a part # to view details

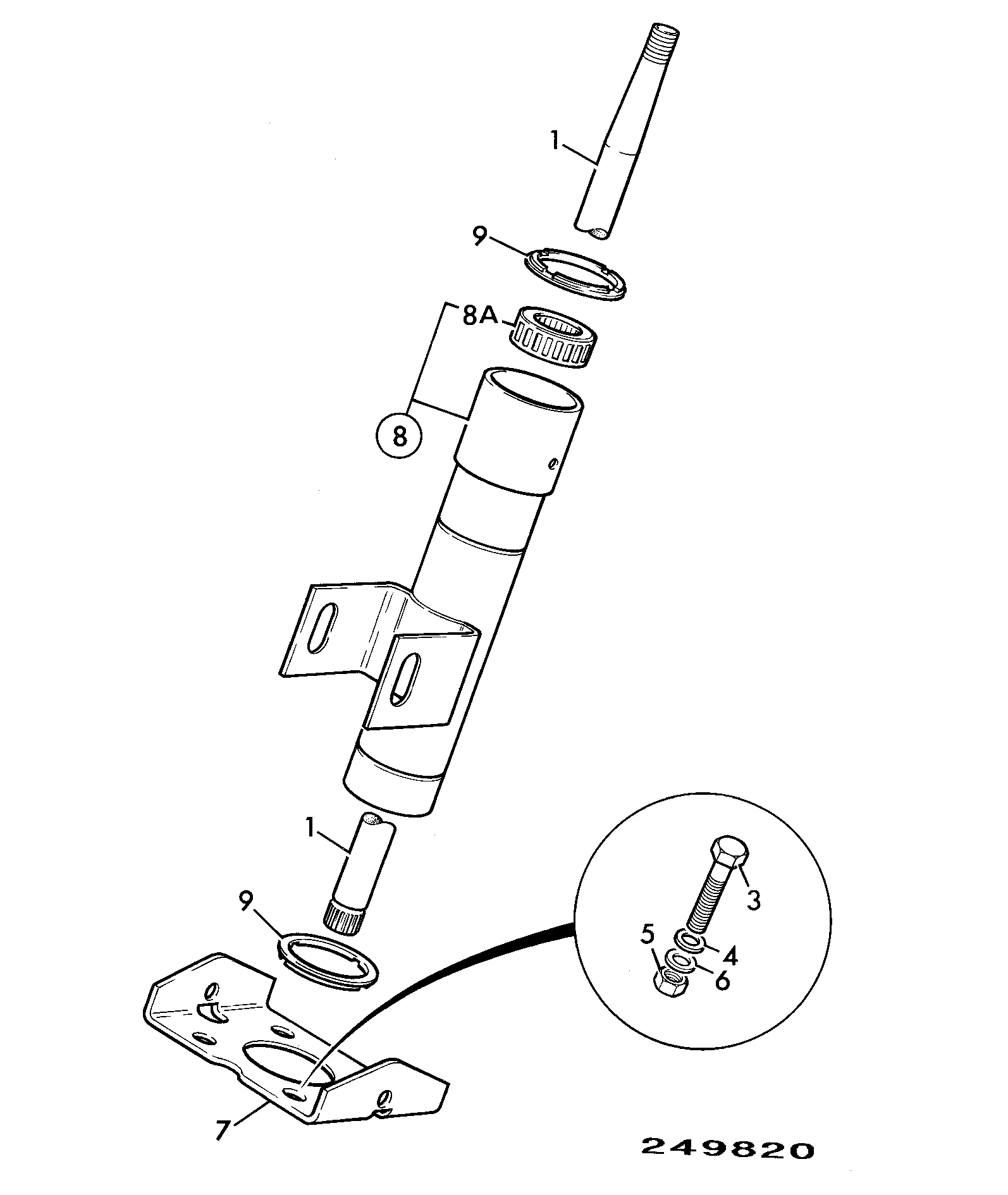

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| NUT, THIN 5/8 UNF 1340/0602Z 1340/0602D | 1 | $11.00 | ||||
| WASHER 5/8 SMALL PLAIN 1410/0007Z | 1 | $2.54 | ||||
| 4 | RESILIENT MOUNT 141/00936 | 1 | $17.97 | |||
| 5 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 6 | BOLT M10x45 1315/3411Z | 1 | $5.64 | |||
| 7 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 9 | LH TILT STEER BRKT 274/00993 | 1 | $82.62 | |||
| 14 | (P) FIBRE WASHER 823/00388 | 1 | $11.99 | |||
| 15 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 17 | STRIP EDGE 30M (ROLL) 926/04800 | 1 | $6.43 | |||
| 18 | GAITER 274/00594 | 1 | $42.19 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-

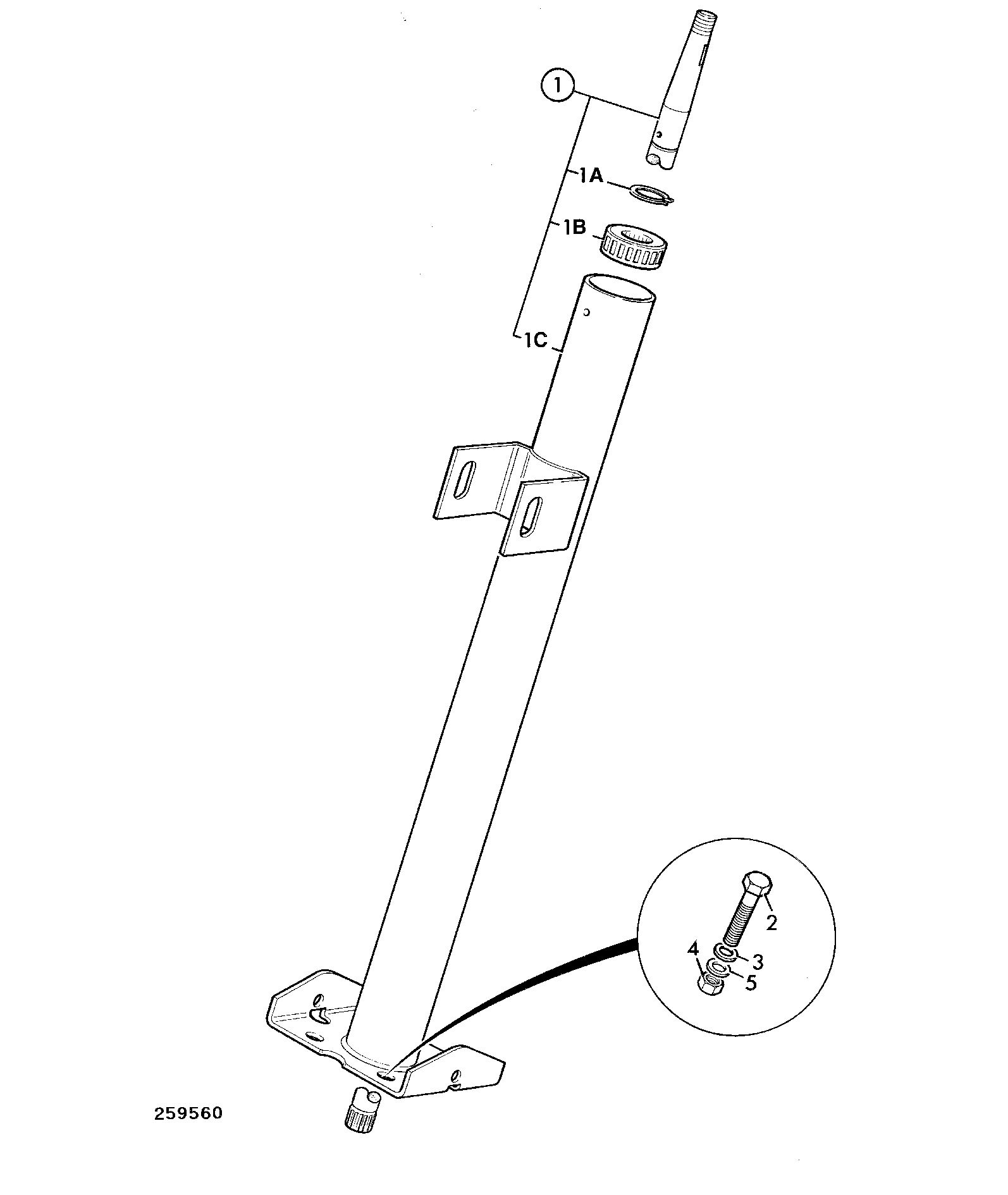

DIAG-D3-1-2-404396 D3-1-2 STEERING COLUMN FIXED
View Diagram -
DIAG-D3-1-3-404396 D3-1-3 STEERING COLUMN FIXED
View Diagram -
DIAG-D2-1-3-404396 D2-1-3 CONTROL, THROTTLE
View Diagram
