Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | HOLDER,PTO CLUTC 3A211-27250 | 1 | $448.80 | |||
| 020 | PLUG 32420-67380 | 1 | $3.35 | |||
| 030 | PISTON TA040-69210 | 1 | $51.99 | |||
| 040 | SEAL, PISTON 34076-65170 | 1 | $26.98 | |||
| 050 | SPRING TA040-69230 | 1 | $15.92 | |||
| 060 | SPRING TA040-69240 | 1 | $13.88 | |||
| 070 | COVER, PTO 3A011-27260 | 1 | $9.58 | |||
| 080 | Circlip Retaining Ring 04611-00280 | 1 | $1.31 | |||
| 090 | Bolt (Fastener) 01120-00830 01123-50830 | 1 | $1.13 | |||
| 100 | Radial Ball Bearing 6A700-16510 08101-06007 | 1 | $14.27 | |||
| 110 | Internal Circlip 04611-10620 04611-00620 | 1 | $2.89 | |||
| 120 | CIR-CLIP,EXTERNA 33740-27290 33740-27292 | 1 | $35.42 | |||
| 130 | PIPE, HYD. 34555-69330 | 1 | $28.12 | |||
| 140 | PIPE, HYDRAULIC 36530-27270 36530-27273 | 1 | $25.23 | |||
| 150 | BALL (CREEP SPEE 15231-36360 07715-03211 | 1 | $0.21 | |||
| 160 | SPRING 32590-28220 | 1 | $6.66 | |||
| 160 | Stopper Spring (Spring, Stopper) 62231-18532 62231-18530 | 1 | $1.56 | |||
| 170 | BOLT 3A011-29410 | 1 | $10.65 | |||
| 180 | ASSY VALVE, PTO 3A111-27400 YR829-00100 | 1 | $680.69 | |||
| 190 | O-Ring Seal 04811-00090 04816-00090 | 1 | $1.07 | |||
| 190 | O-Ring Seal 04810-00090 04817-00090 | 1 | $1.07 | |||
| 200 | BOLT, JOINT 34076-66590 | 1 | $9.59 | |||
| 210 | Copper Gasket 04714-00200 | 1 | $1.31 | |||
| 220 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.96 | |||
| 230 | Washer 04012-50120 04011-50120 | 1 | $0.20 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-

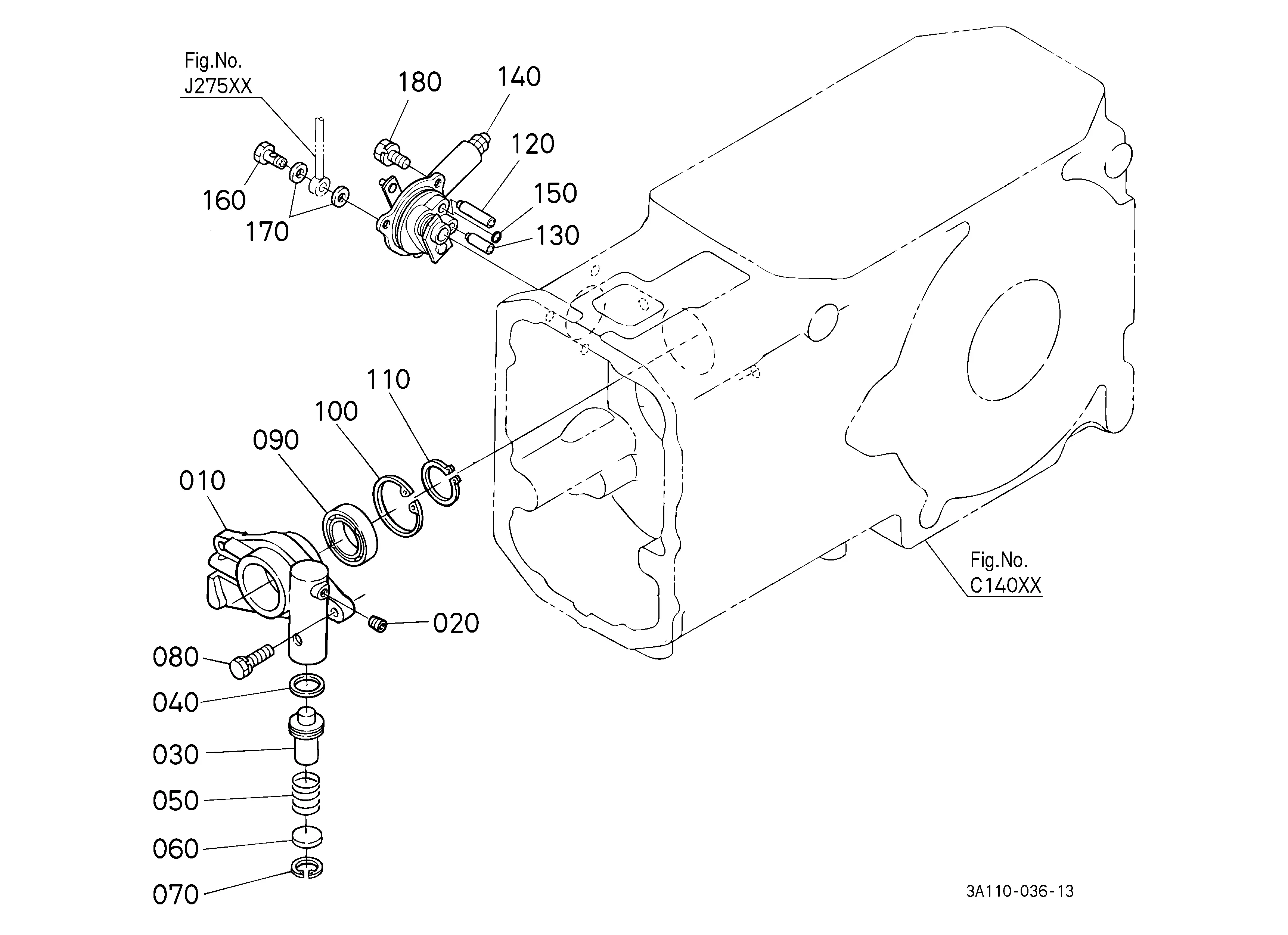

DIAG-D26801-85781 D26801 PTO CLUTCH VALVE [ROPS TYPE] [OLD TYPE]
View Diagram -

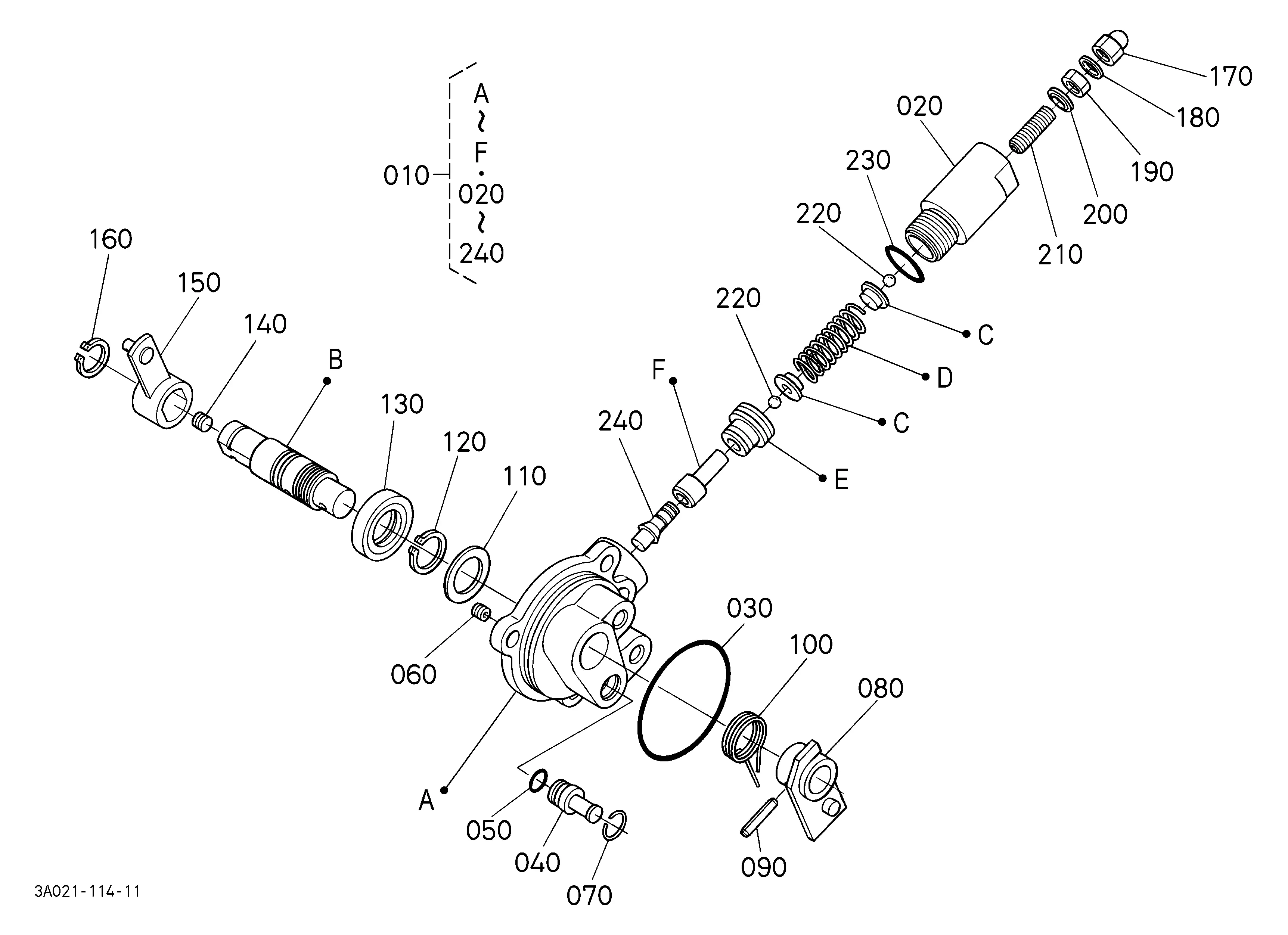

DIAG-D26900-85781 D26900 PTO CLUTCH VALVE [COMPONENT PARTS]
View Diagram -

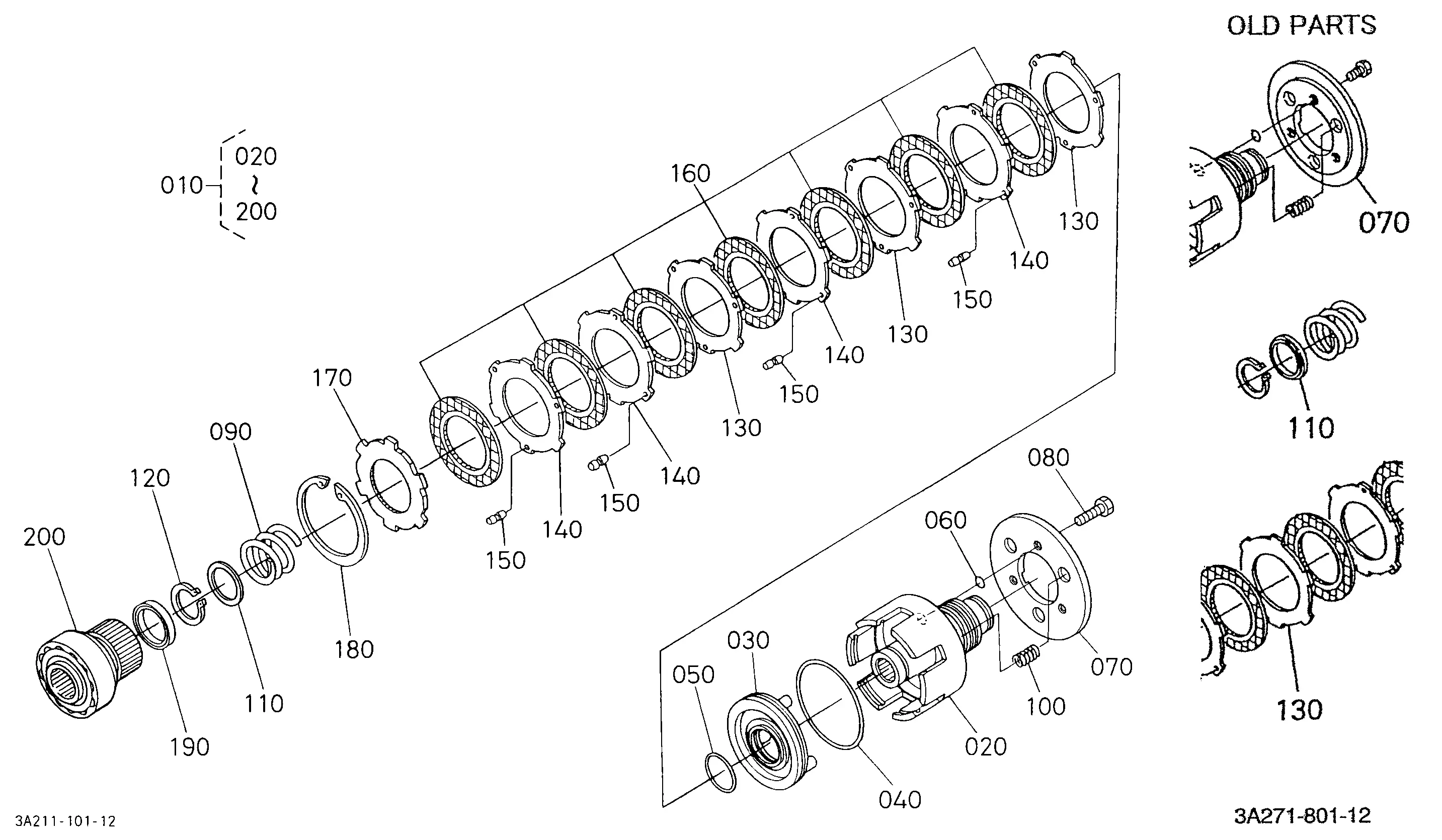

DIAG-D26702-85781 D26702 PTO CLUTCH [COMPONENT PARTS] [NEW TYPE]
View Diagram
