Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SHAFT, BEVEL GEA 3C041-32410 | 1 | $965.59 | |||
| 020 | NUT 3C001-32580 | 1 | $41.15 | |||
| 030 | ROTOR, SENSOR 3C001-32450 | 1 | $65.52 | |||
| 040 | BEARING,TAPER RO 36330-32570 3A211-32590 | 1 | $114.30 | |||
| 050 | BRG TAPER ROLL45 08711-30309 | 1 | $67.43 | |||
| 060 | COLLAR 2.8MM* 36200-32610 | 1 | $45.28 | |||
| 060 | COLLAR 3.0MM 36200-32630 | 1 | $45.28 | |||
| 060 | COLLAR 3.2MM 36200-32650 | 1 | $45.28 | |||
| 060 | COLLAR 3.4MM 36200-32670 | 1 | $45.28 | |||
| 060 | COLLAR 3.6MM 36200-32690 | 1 | $45.28 | |||
| 070 | GEAR, 4WD 3C451-41130 | 1 | $554.36 | |||
| 080 | BEARING, BALL TC210-26270 Discontinued | 1 | $42.51 | |||
| 080 | Radial Ball Bearing K7561-12160 08101-06210 | 1 | $42.51 | |||
| 090 | Front/Rear Differential Bearing TD030-12820 08101-06010 | 1 | $18.80 | |||
| 100 | Cir-Clip Retaining Ring 04611-50300 04611-00800 | 1 | $7.97 | |||
| 110 | O-Ring Seal 04612-00500 | 1 | $1.73 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

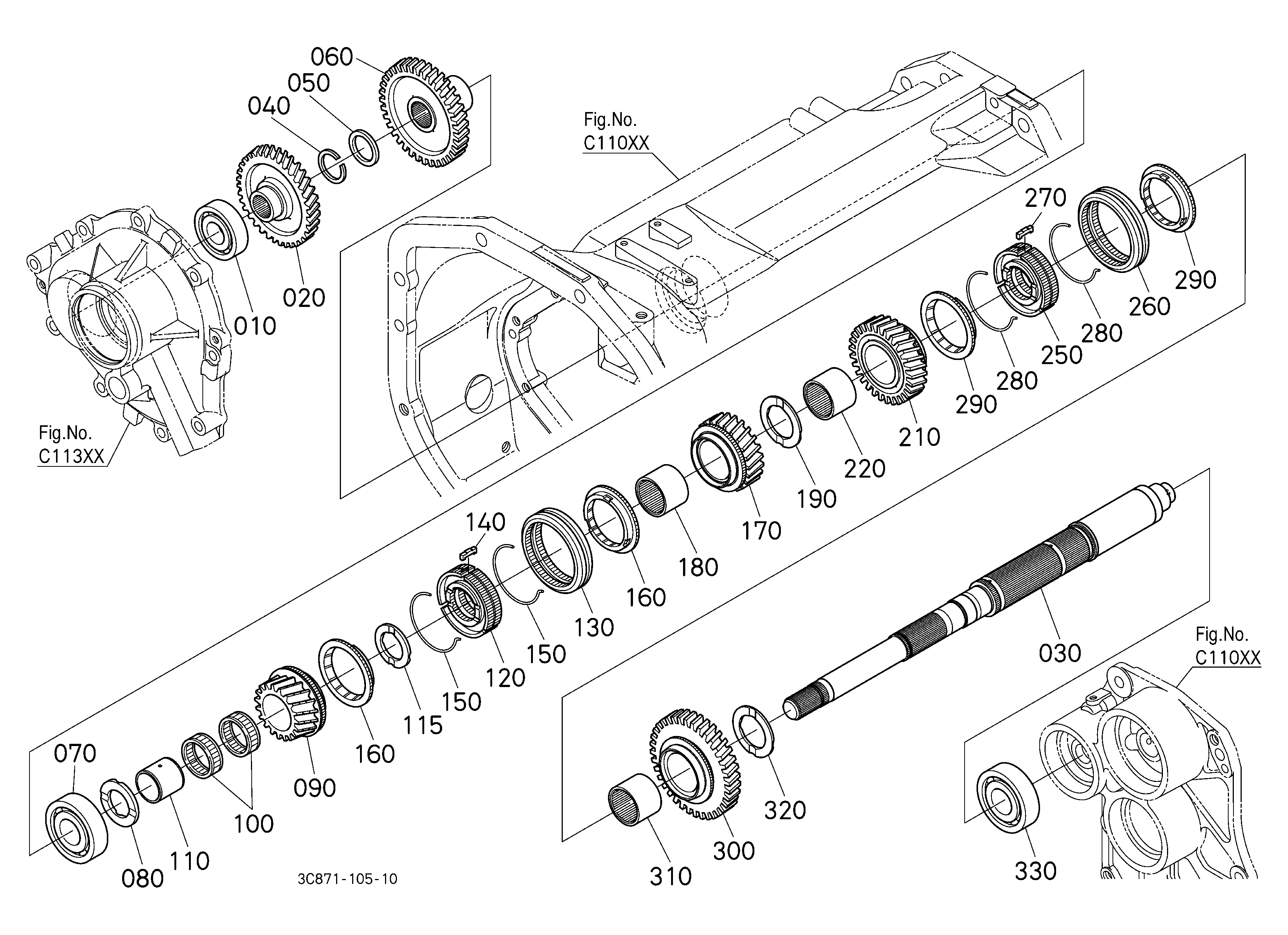

DIAG-D23501-85871 D23501 THIRD SHAFT
View Diagram -

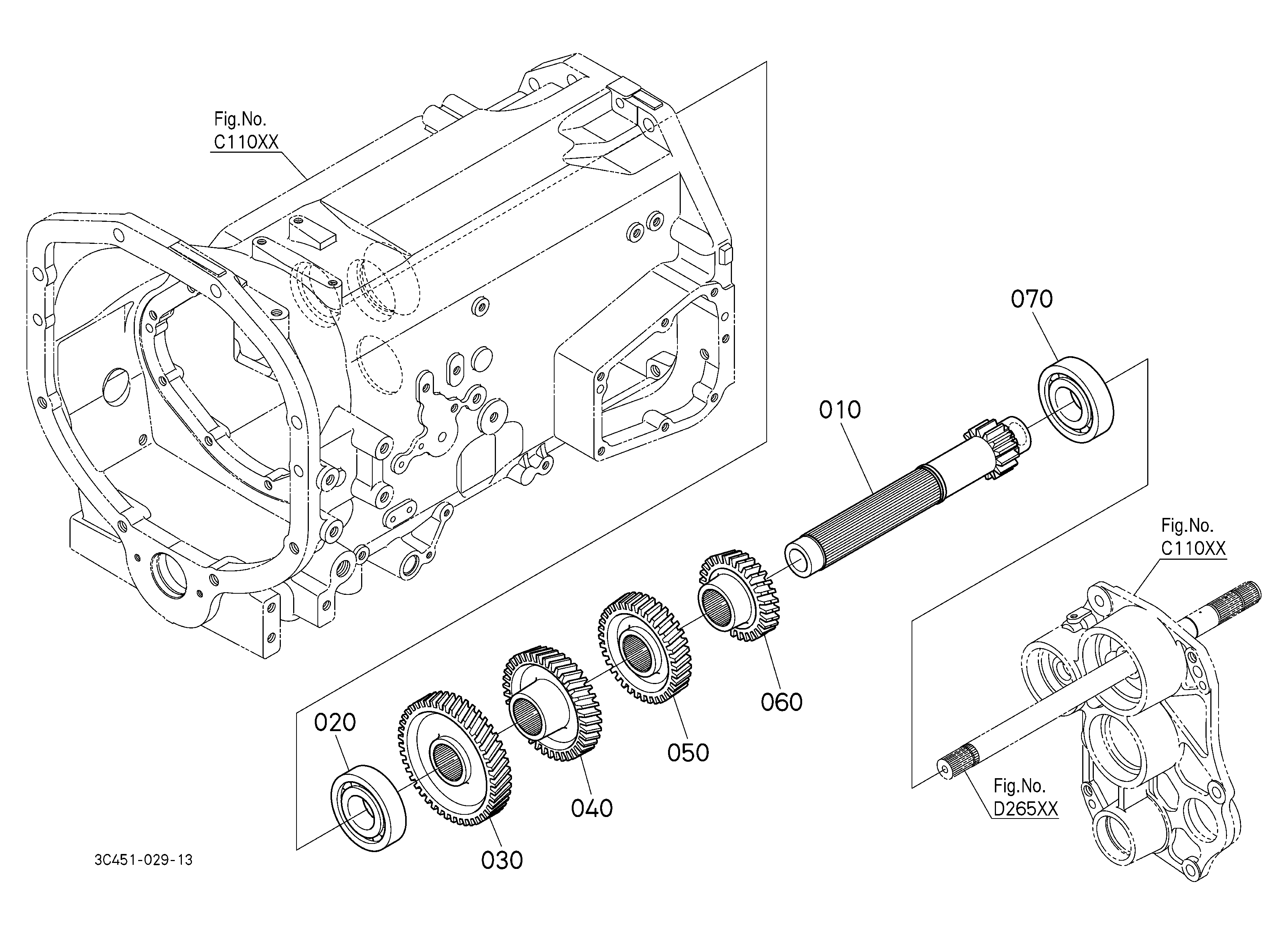

DIAG-D22701-85871 D22701 SECOND SHAFT
View Diagram -
DIAG-D22502-85871 D22502 FIRST SHAFT [NEW]
View Diagram
