Kubota M5-091HD12/HD12-1 D22702 SECOND SHAFT Parts Diagram

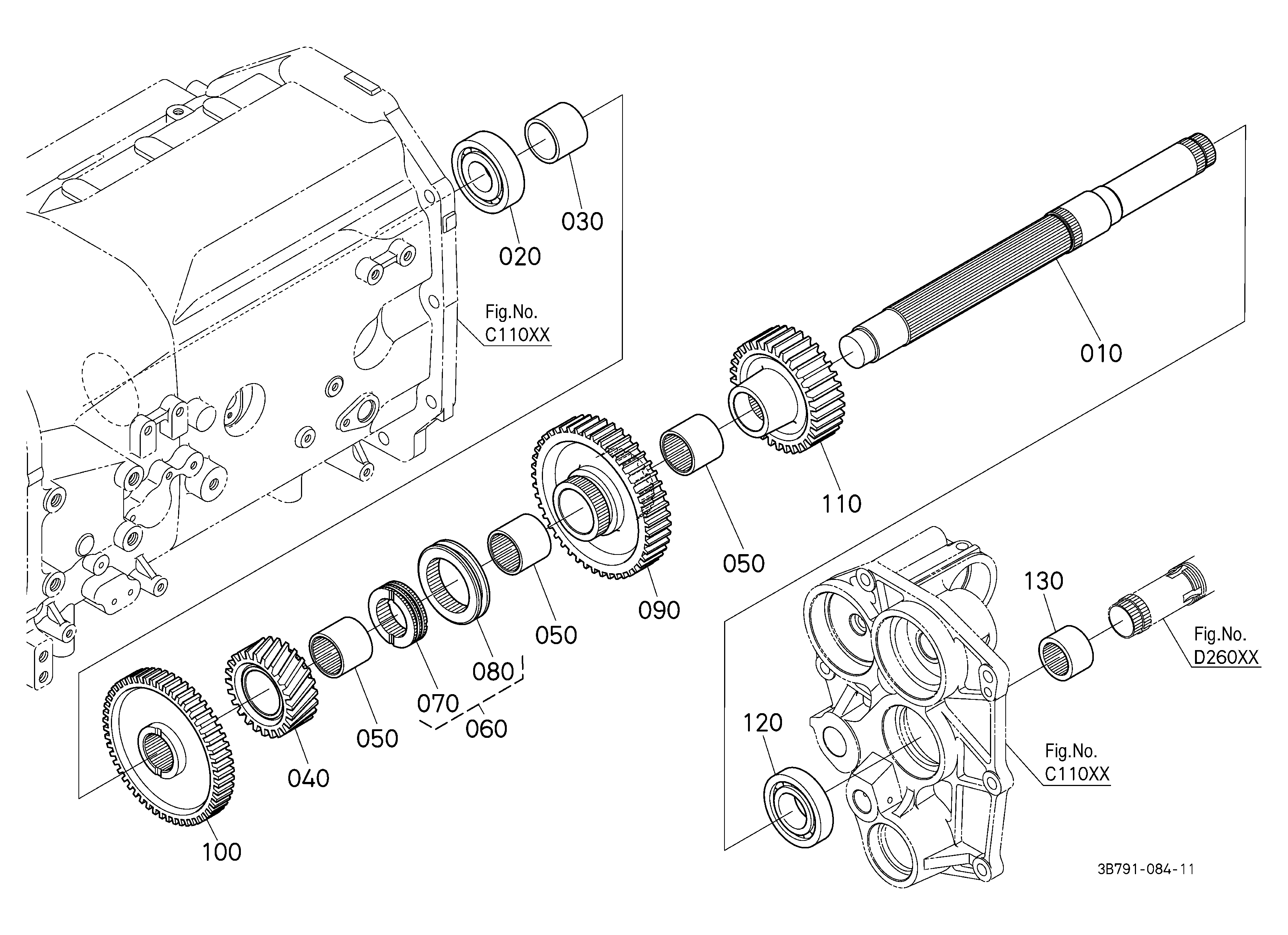

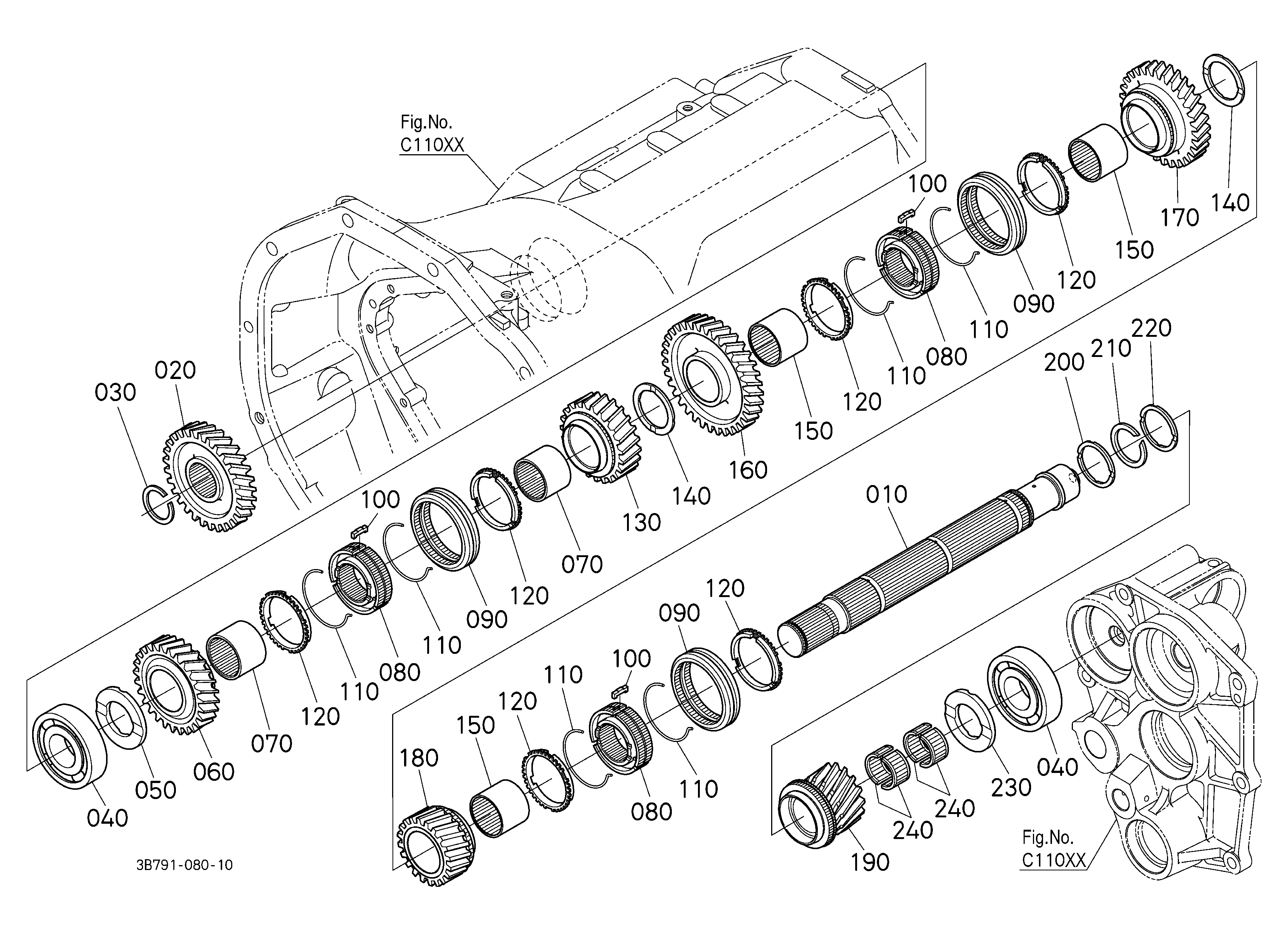

Exploded-view parts diagram "D22702 SECOND SHAFT" for the Kubota M5-091HD12/HD12-1, Kubota M5-091HDC12/HDC12-1, Kubota M5-111HD12/HD12-1 and Kubota M5-111HDC12/HDC12-1. 9 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GEARSHAFT 3C152-28110 | 1 | $540.32 | |||
| 020 | BEARING,BALL 3C151-28960 | 1 | $75.93 | |||
| 030 | GEAR 3C152-28920 | 1 | $383.16 | |||
| 040 | GEAR 3C152-28290 | 1 | $398.31 | |||
| 050 | CIR-CLIP, EXTERN 33740-30370 | 1 | $15.11 | |||
| 060 | GEAR 3C152-28280 | 1 | $484.48 | |||
| 070 | GEAR 3C151-28270 | 1 | $569.77 | |||
| 080 | GEAR 3C152-28940 | 1 | $261.94 | |||
| 090 | GEAR 3C152-28930 | 1 | $340.57 | |||
Showing 1 to 9 of 9 parts
