Kubota B7500D D22002 PTO GEAR SHIFT FORK Parts Diagram
Exploded-view parts diagram "D22002 PTO GEAR SHIFT FORK" for the Kubota B7500D. 7 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ROD,FORK 6C120-18610 | 1 | $163.89 | |||
| 020 | FORK, PTO SHIFT 6C090-18620 6C090-18623 | 1 | $199.08 | |||
| 030 | SPRING, BALL STO 62061-18260 | 1 | $8.75 | |||
| 040 | Steel Ball 07715-01605 | 1 | $0.42 | |||
| 050 | CIR-CLIP 04613-00120 04613-50120 | 1 | $0.60 | |||
| 060 | ARM, PTO SHIFT ( 6C040-18710 6C040-18712 | 1 | $33.45 | |||
| 070 | O-Ring Seal 04811-00160 04816-00160 | 1 | $2.01 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-
DIAG-D21702-84610 D21702 RANGE GEAR SHIFT FORK
View Diagram -
DIAG-D20100-84610 D20100 MAIN GEAR SHIFT FORK
View Diagram -

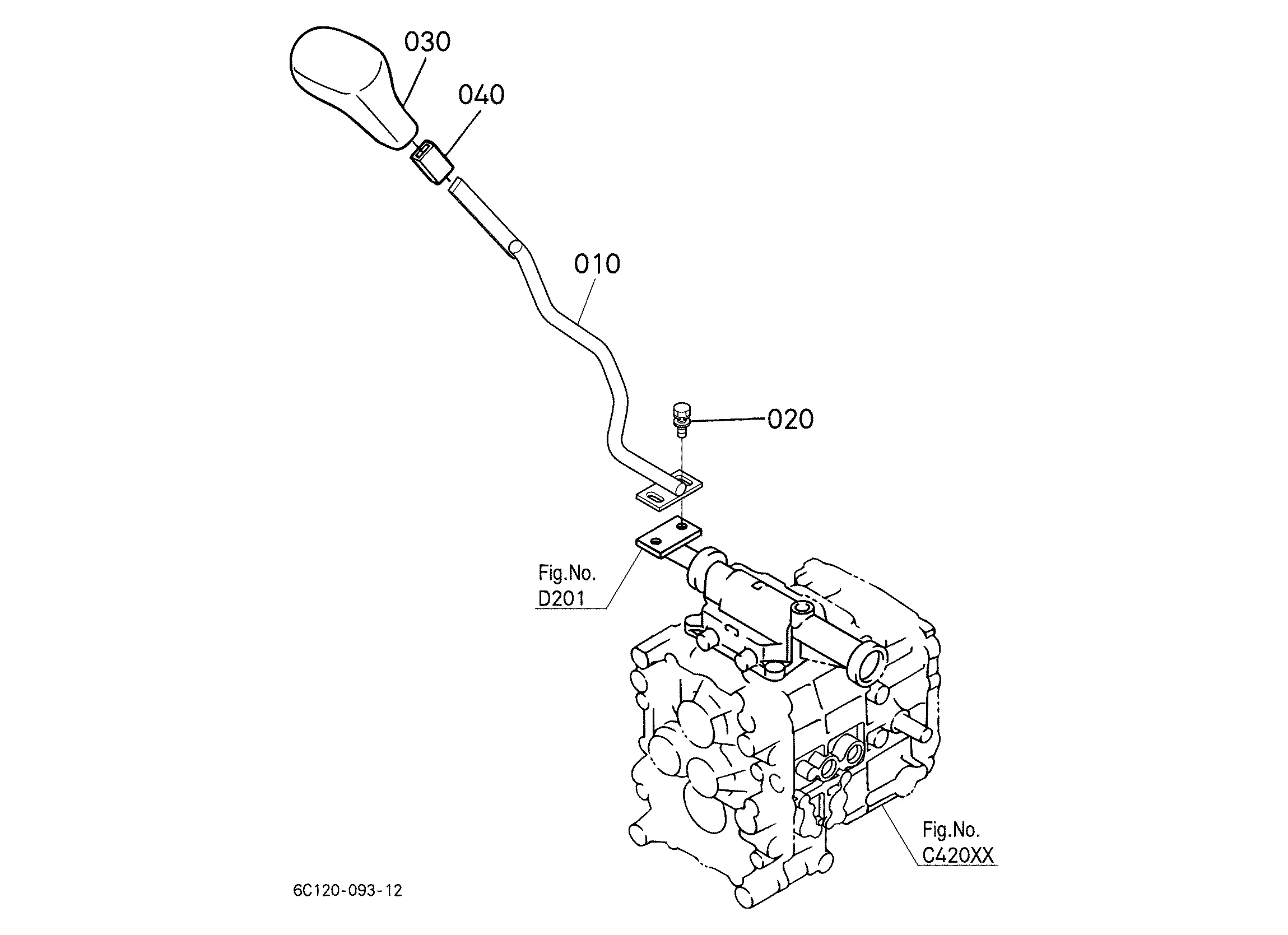

DIAG-F10100-84610 F10100 MAIN GEAR SHIFT LEVER
