Kubota M8560HD D21700 SHUTTLE SHAFT Parts Diagram
Exploded-view parts diagram "D21700 SHUTTLE SHAFT" for the Kubota M8560HD, Kubota M8560HD12, Kubota M8560HDC, Kubota M8560HDC12, Kubota M8560HF, Kubota M8560HFC, Kubota M9960HD and Kubota M9960HD12 and 5 more models. 6 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SHAFT, SHUTTLE 3C291-23400 | 1 | $148.19 | |||
| 020 | 6305 Deep Groove Ball Bearing T2050-23480 08101-06305 | 1 | $15.41 | |||
| 030 | GEAR SHUTTLE 3C152-23390 | 1 | $317.41 | |||
| 030 | GEAR, SHUTTLE 3C081-23390 | 1 | $334.55 | |||
| 040 | GEAR SHUTTLE 3C152-23370 | 1 | $311.77 | |||
| 040 | GEAR, SHUTTLE 3C081-23370 | 1 | $301.96 | |||
Showing 1 to 6 of 6 parts
Related Assemblies
-
DIAG-D21500-85874 D21500 INPUT SHAFT
View Diagram -

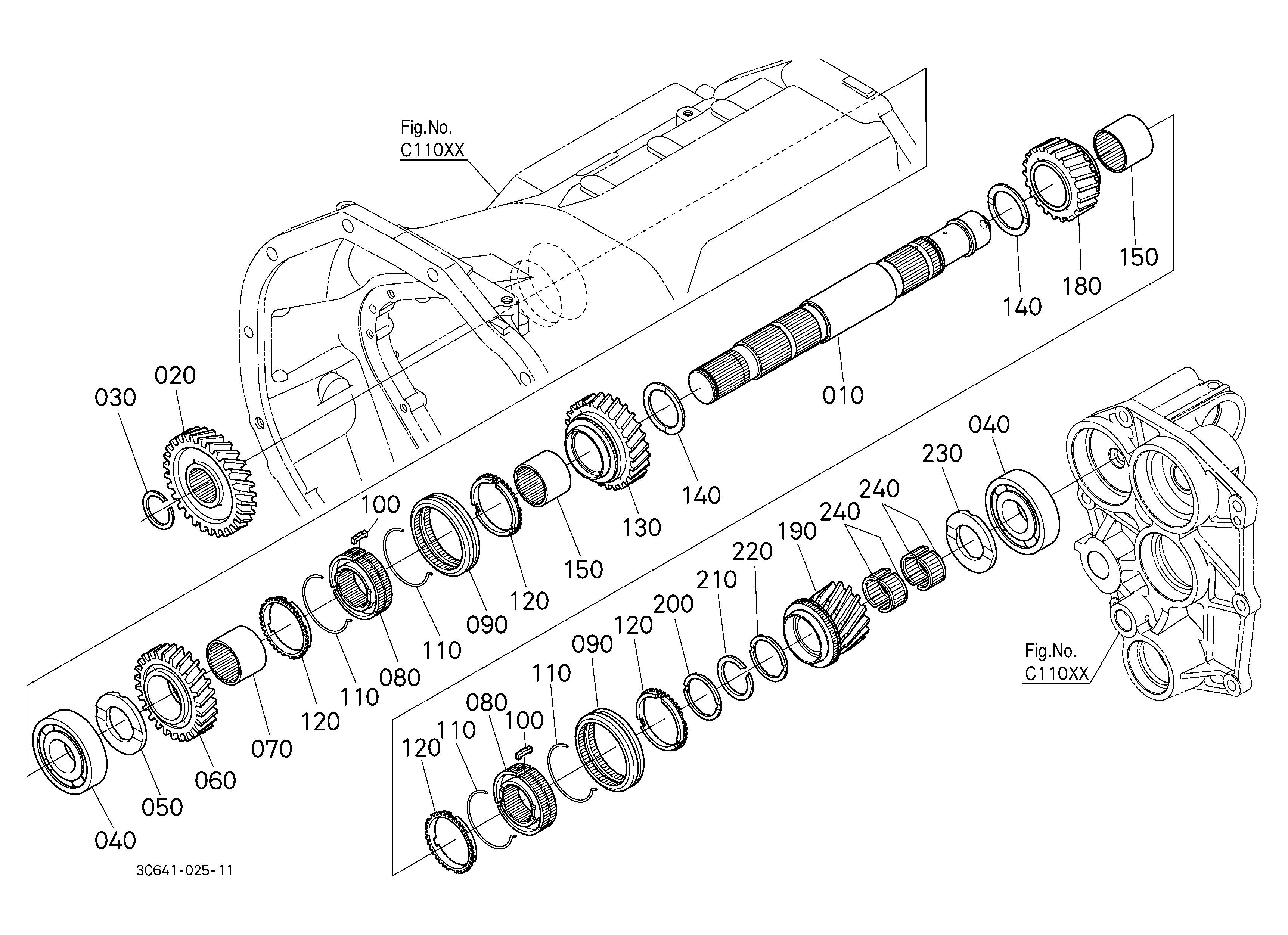

DIAG-D22501-85874 D22501 FIRST SHAFT
View Diagram -

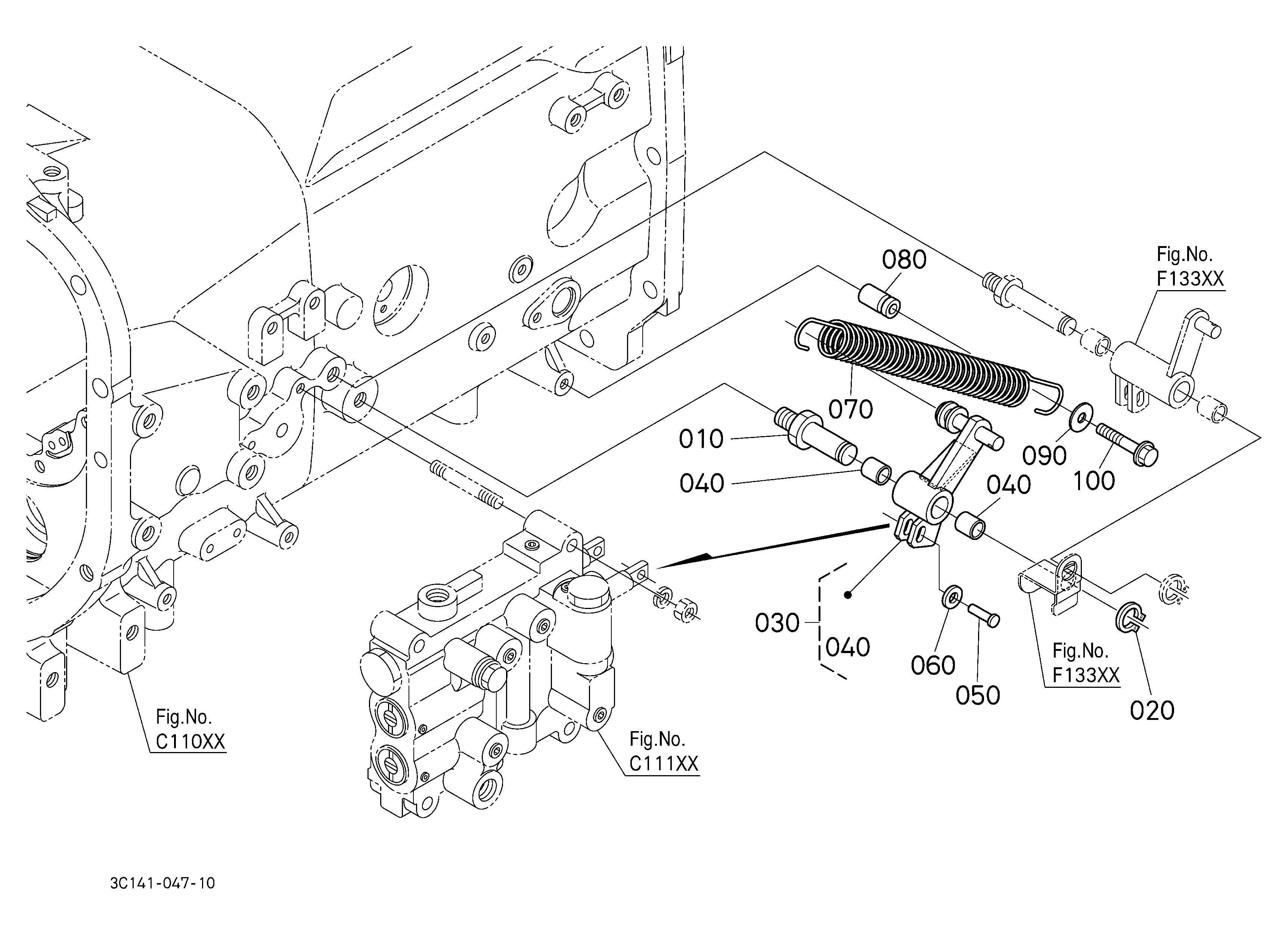

DIAG-C26500-85874 C26500 VALVE LEVER (CLUTCH)
