Scroll to zoom Click a part # to view details

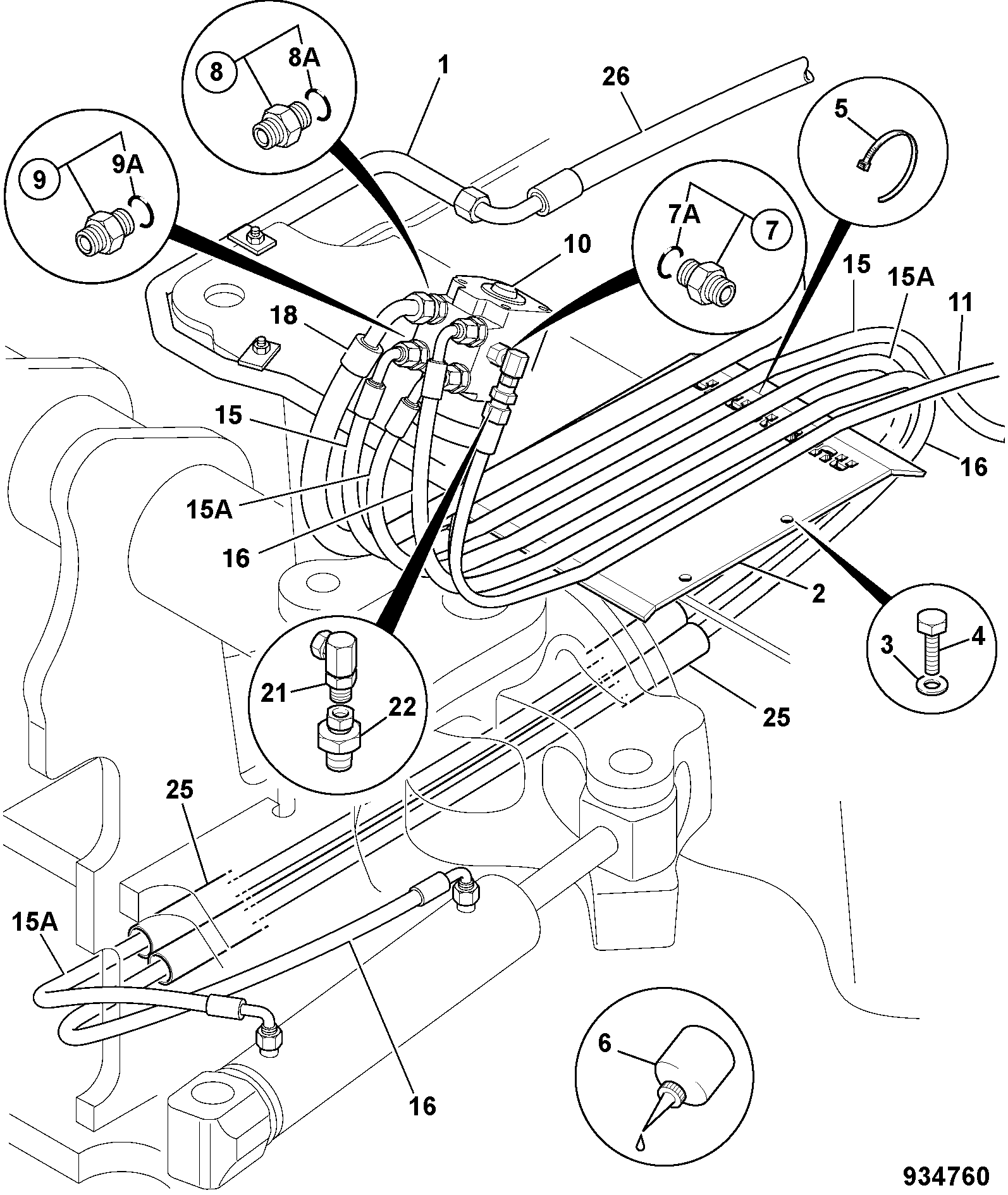

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ADAPTOR G1/4A M/M 1604/0002 | 1 | $29.81 | ||||
| ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | ||||
| BOLT M6x50 1315/3212D | 1 | $1.49 | ||||
| CREEP & A/C SWITCH PLATE W.A. 332/U3570 | 1 | $319.64 | ||||
| DECAL 817/18387 | 1 | $36.78 | ||||
| DECAL SWITCH HSC 701/58823 | 1 | $5.67 | ||||
| HAND THROTTLE CABLE 910/60252 | 1 | $781.96 | ||||
| Harness Creep 333/T8780 | 1 | $180.31 | ||||
| HOSE 1/4" BSP X 31 631/32500 | 1 | $37.62 | ||||
| HOSE 1/4BSP 3000mm 649/51527 | 1 | $86.16 | ||||
| Hose 1/4BSP x 205 611/80263 | 1 | $25.47 | ||||
| KNOB THROTTLE LEVER 331/28912 | 1 | $5.79 | ||||
| LOCKNUT M5 1370/0003D | 1 | $3.05 | ||||
| NEEDLE VALVE(405AA00393A) 928/60108 | 1 | $565.20 | ||||
| NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | ||||
| NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | ||||
| PANEL SWITCH 12v 701/60000 | 1 | $101.29 | ||||
| SET-SCREW M_5 L-_20mm G_8.8 1315/0105D | 1 | $2.99 | ||||
| SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | ||||
| SOLENOID BRACKET 333/U0013 | 1 | $16.59 | ||||
| SOLENOID VALVE(403AA00321A) 928/60346 | 1 | $328.83 | ||||
| SPRING 814/10128 | 1 | $18.16 | ||||
| SUPPORT STRIP 331/58184 | 1 | $22.86 | ||||
| THROTTLE LEVER W.A. 335/11517 | 1 | $306.93 | ||||
| THROTTLE REACTION BKT 335/11459 | 1 | $434.43 | ||||
| WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | ||||
| WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | ||||
| WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | ||||
| WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | ||||
Showing 1 to 29 of 29 parts
Related Assemblies
-
DIAG-D2-2-3-402990 D2-2-3 THROTTLE CONTROL CREEP SPEED HEATER BUILDS
View Diagram -
DIAG-E1-5-2-402990 E1-5-2 HOSE AND PIPEWORK STEERING
View Diagram -
DIAG-E1-6-2-402990 E1-6-2 HOSE AND PIPEWORK PRIORITY VALVE
View Diagram
