Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | THROTTLE LEVER W.A. 335/11517 | 1 | $306.93 | |||
| 2 | SUPPORT STRIP 331/58184 | 1 | $22.86 | |||
| 3 | THROTTLE REACTION BKT 335/11459 | 1 | $434.43 | |||
| 4 | HOSE 1/4BSP 3000mm 649/51527 | 1 | $86.16 | |||
| 5 | Hose 1/4BSP x 205 611/80263 | 1 | $25.47 | |||
| 6 | HAND THROTTLE CABLE 910/60252 | 1 | $781.96 | |||
| 7 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 8 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 9 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 10 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 11 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 12 | ADAPTOR G1/4A M/M 1604/0002 | 1 | $29.81 | |||
| 13 | SOLENOID VALVE(403AA00321A) 928/60346 | 1 | $328.83 | |||
| 14 | NEEDLE VALVE(405AA00393A) 928/60108 | 1 | $565.20 | |||
| 15 | SPRING 814/10128 | 1 | $18.16 | |||
| 16 | KNOB THROTTLE LEVER 331/28912 | 1 | $5.79 | |||
| 17 | SET-SCREW M_5 L-_20mm G_8.8 1315/0105D | 1 | $2.99 | |||
| 18 | LOCKNUT M5 1370/0003D | 1 | $3.05 | |||
| 19 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 20 | HEATER & CREEP SWITCH PLATE WA 332/U3551 | 1 | $281.36 | |||
| 22 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 23 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 24 | DECAL 817/18387 | 1 | $36.78 | |||
| 26 | PANEL SWITCH - 3 POSTION 701/80571 | 1 | $36.48 | |||
| 27 | SOLENOID BRACKET 333/U0013 | 1 | $16.59 | |||
| 28 | BOLT M6x50 1315/3212D | 1 | $1.49 | |||
| 29 | HOSE 1/4" BSP X 31 631/32500 | 1 | $37.62 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-
DIAG-D2-2-21-404383 D2-2-21 THROTTLE CONTROL CREEP SPEED AIR-CON BUILDS
View Diagram -
DIAG-D2-2-31-404383 D2-2-31 THROTTLE CONTROL CREEP SPEED CANOPY BUILDS
View Diagram -

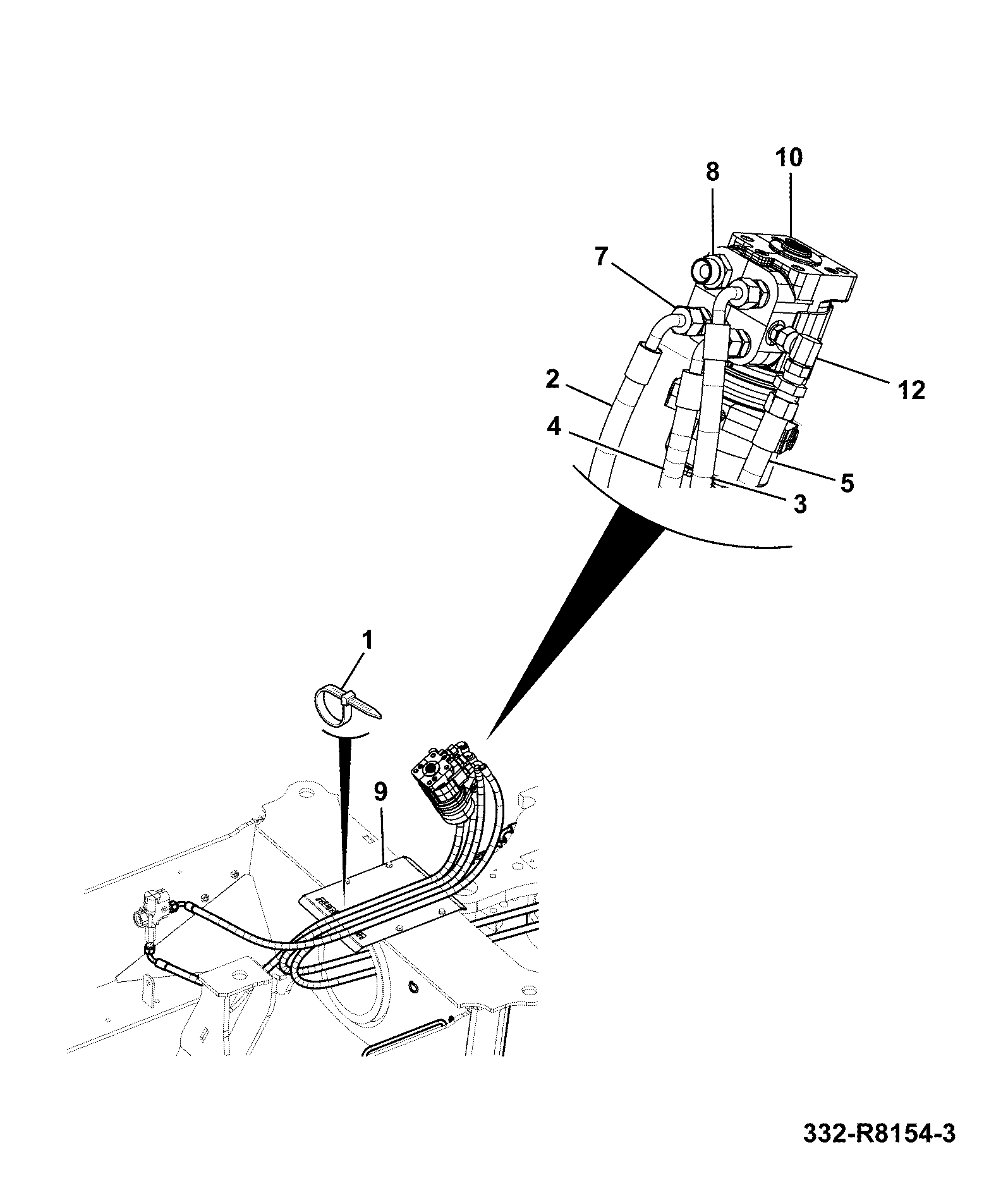

DIAG-E1-5-2-404383 E1-5-2 HOSE AND PIPEWORK STEERING
View Diagram
