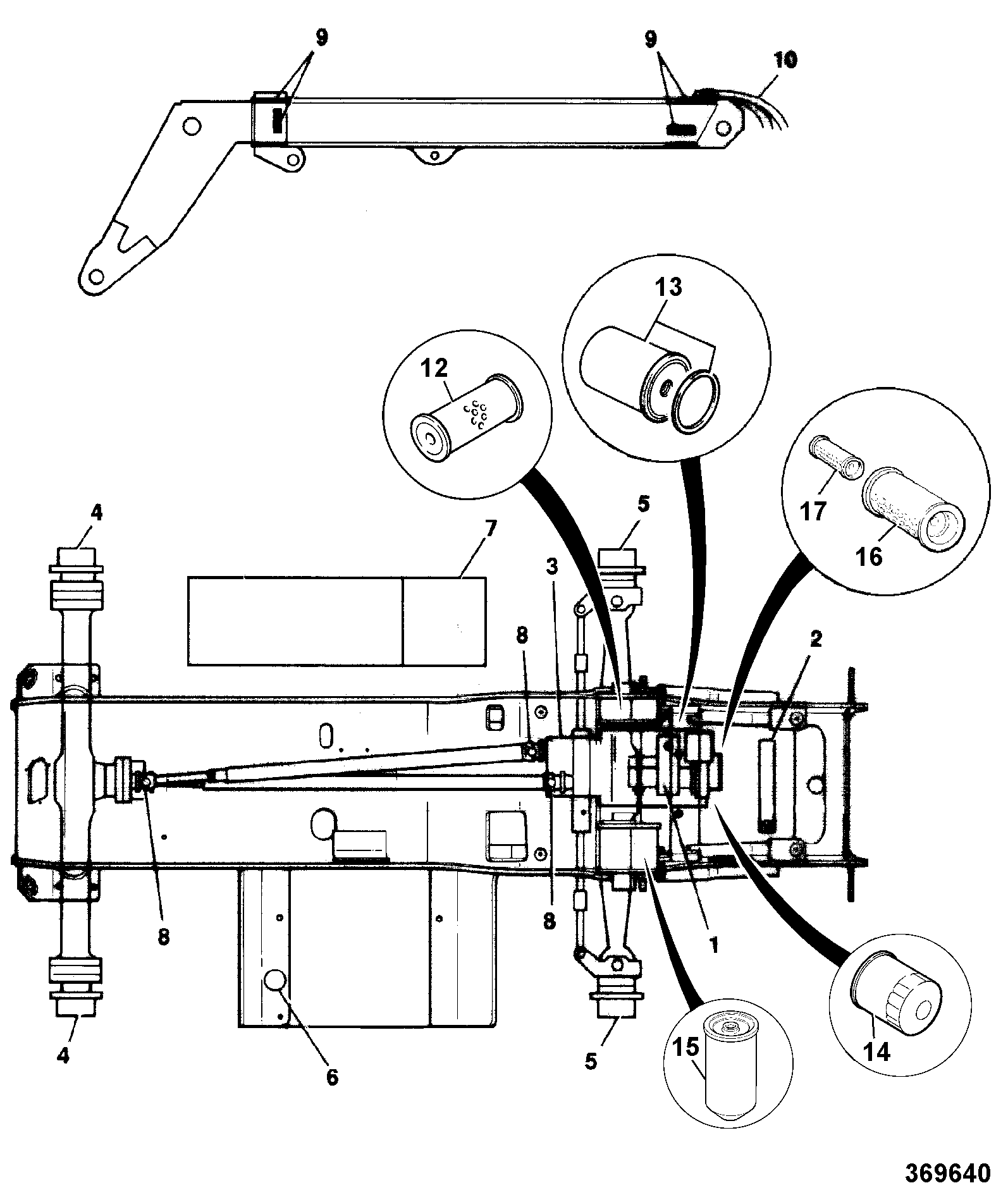

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | ||||
| 1 | PEDAL ACCELERATOR 161/00167 | 1 | $805.34 | |||
| 1 | WA ACCELERATOR PEDAL (P83) 335/05196 | 1 | $137.24 | |||
| 2 | BEARING-ACCELERA 160/00486 | 1 | $16.64 | |||
| 3 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 4 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 5 | BRACKET 161/00028 | 1 | $29.20 | |||
| 6 | SPRING.TENSION 814/00359 | 1 | $19.43 | |||
| 7 | ACCELERATOR CABLE 331/14325 | 1 | $219.12 | |||
| 8 | PIN CLEVIS 2101/0002 | 1 | $34.68 | |||
| 9 | PIN SPLIT 1/16 2103/0305 | 1 | $0.44 | |||
| 10 | NUT 5/16UNF THIN PLAIN (P564) 1340/0102Z | 1 | $3.18 | |||
| 11 | (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.26 | |||
| 12 | THIN HEX NUT 1/4 UNF 1340/0002Z | 1 | $6.38 | |||
| 13 | SPRING - OVERLOAD 814/00289 | 1 | $17.54 | |||
| 14 | ENGINE CABLE BRACKET 123/07309 | 1 | $62.47 | |||
| 15 | SET SCREW M6x12 1315/0201Z | 1 | $0.62 | |||
| 16 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 17 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
Showing 1 to 19 of 19 parts
