Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| SPACER 10.5x20x16 829/30918 | 1 | $6.97 | ||||
| SPACER TUBE 332/T1984 | 1 | $3.12 | ||||
| 1 | THROTTLE CABLE 332/W0554 333/T9158 | 1 | $373.97 | |||
| 2 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 3 | SET SCREW M6x10 1315/0200D | 1 | $3.40 | |||
| 5 | (W) (P) EXTENSION SPRING (P564) 814/10210 | 1 | $14.65 | |||
| 6 | WA THROTTLE ARM 332/V8431 | 1 | $335.57 | |||
| 7 | REACTION PRESSING 332/W0553 | 1 | $26.80 | |||
| 9 | WA REACTION BRKT 332/S4147 | 1 | $30.17 | |||
| 10 | '(W) (P) BEARING 16x20x20 (P564) OTP -S 831/00100 | 1 | $4.45 | |||
| 11 | PIVOT PIN 478/00536 | 1 | $9.90 | |||
| 12 | FOOT PAD 589/10130 | 1 | $35.73 | |||
| 13 | LOCKNUT M5 1370/0003D | 1 | $3.05 | |||
| 14 | SET-SCREW M_5 L-_30mm 1315/0108D | 1 | $3.97 | |||
| 15 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 17 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 18 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 19 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 20 | Bolt BOLT M8x65 1316/3315D | 1 | $13.02 | |||
| 24 | THIN NUT M8 1370/0202D | 1 | $2.28 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

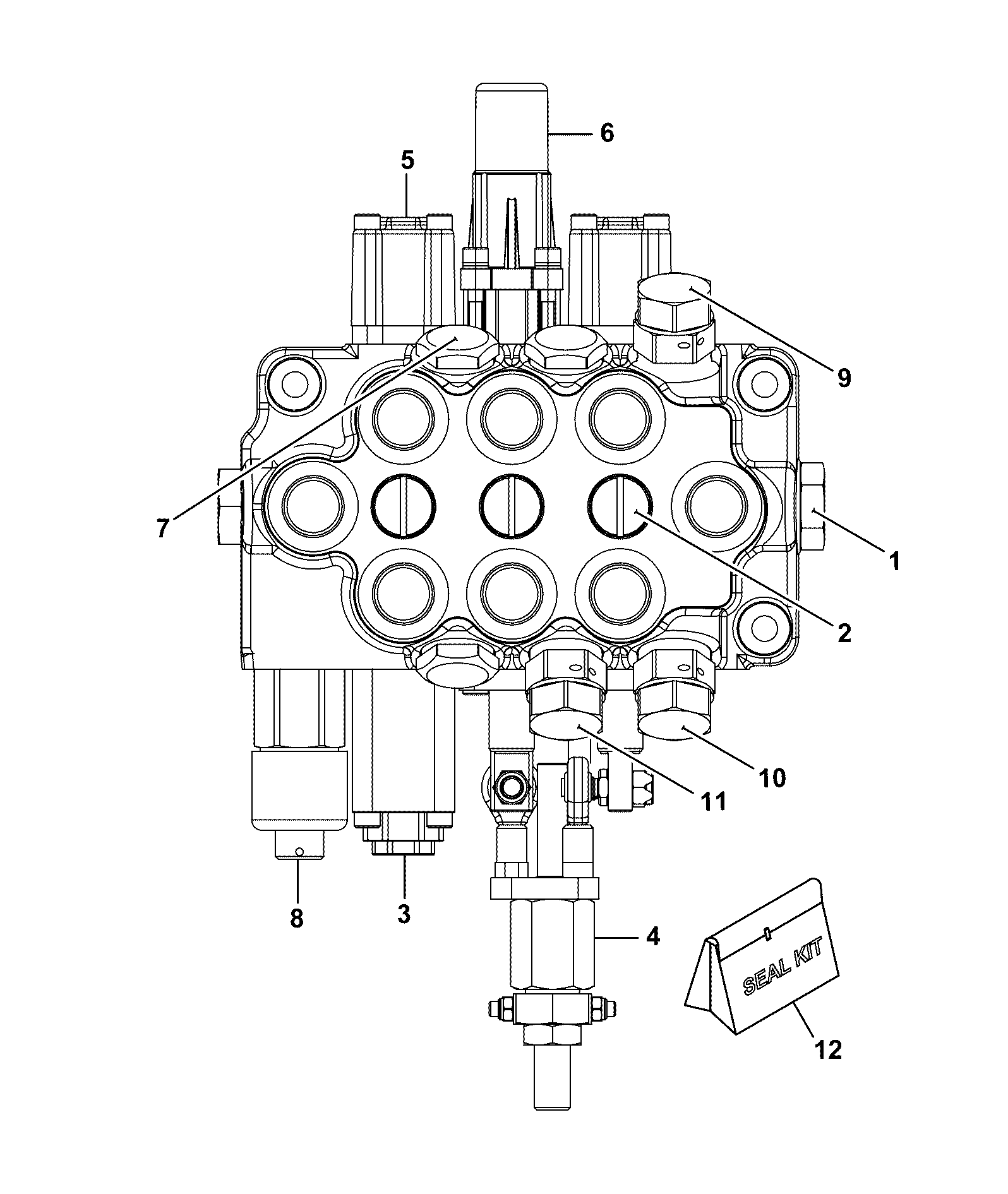

DIAG-D1-5-1-404341-15500592 D1-5-1 CONTROLS MAIN CONTROL VALVE
View Diagram -

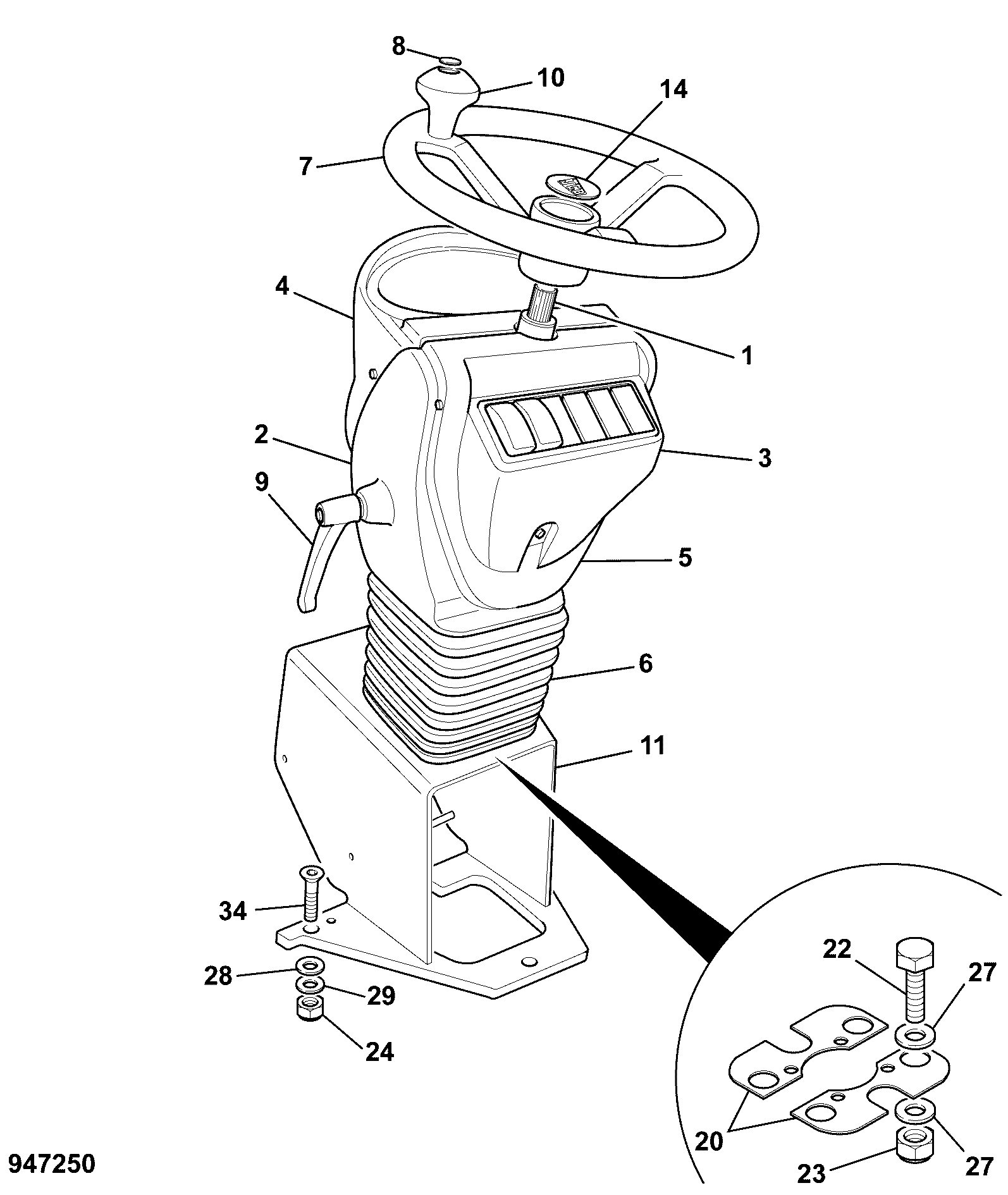

DIAG-D3-1-1-404341 D3-1-1 STEERING COLUMN
View Diagram -

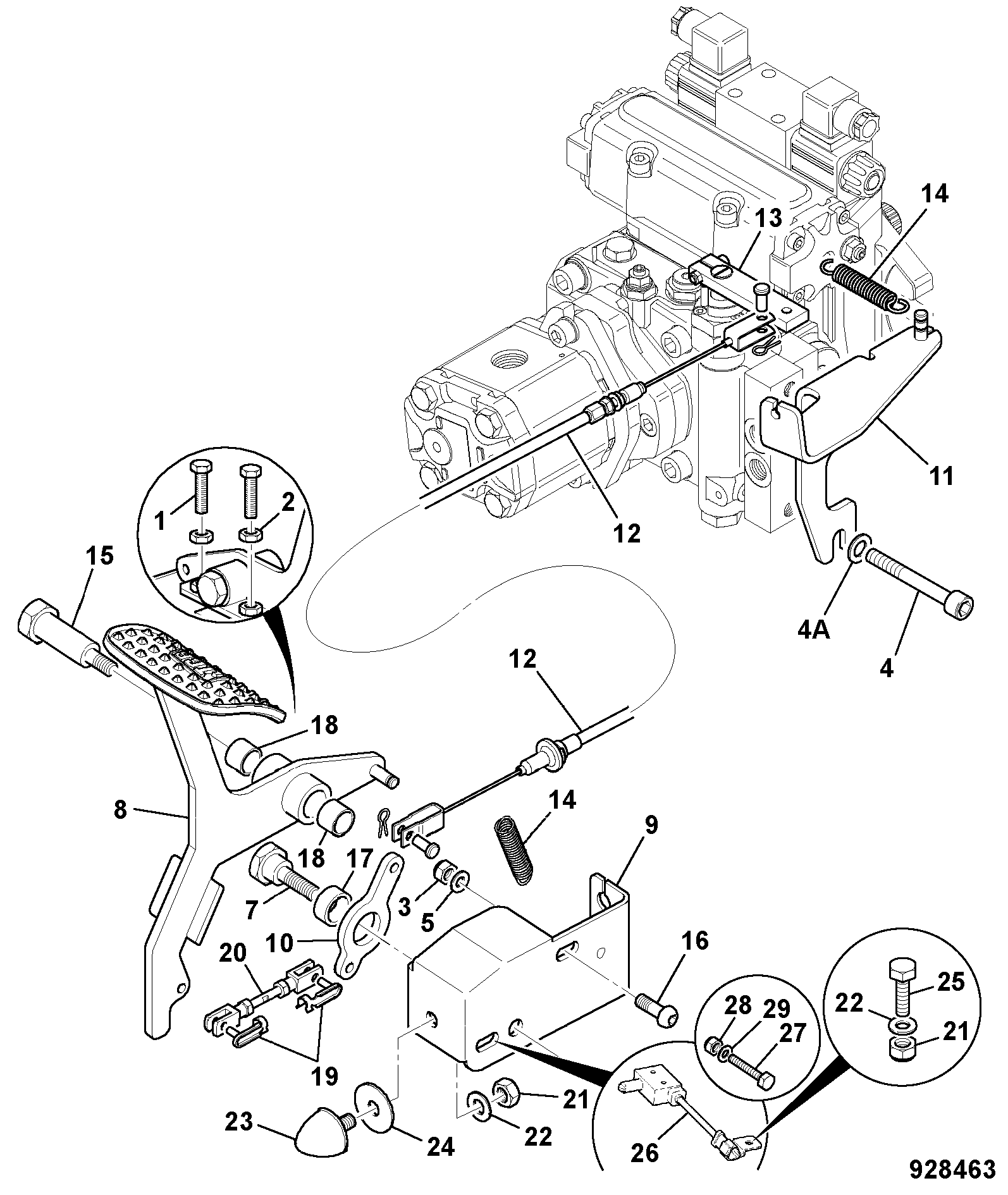

DIAG-D1-2-2-404341-15500590 D1-2-2 CONTROLS INCHING TRANSMISSION
View Diagram
