Scroll to zoom Click a part # to view details

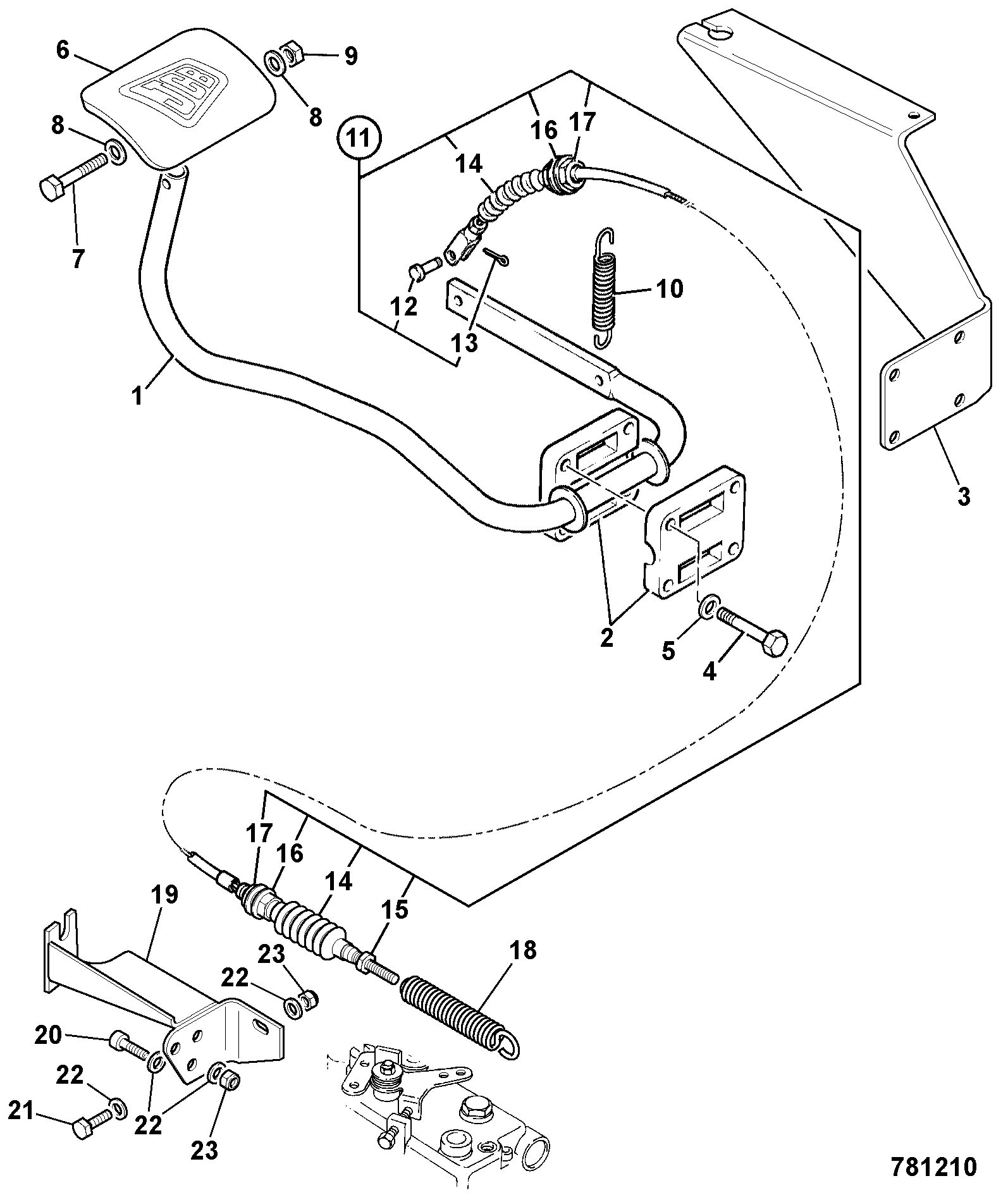

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ACCEL. REACTION BRKT 331/31372 | 1 | $263.94 | ||||
| 1 | WA ACCELERATOR PEDAL 4SPD 331/31361 | 1 | $134.48 | |||
| 2 | BEARING-ACCELERA 160/00486 | 1 | $16.64 | |||
| 4 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 5 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 6 | FOOT PAD 589/10130 | 1 | $35.73 | |||
| 7 | SET-SCREW M_5 L-25mm 1315/0107Z | 1 | $0.85 | |||
| 8 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 9 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 10 | SPRING.TENSION 814/00359 | 1 | $19.43 | |||
| 11 | SPRING 814/10195 | 1 | $28.59 | |||
| 12 | PIN CLEVIS 2101/0002 | 1 | $34.68 | |||
| 13 | PIN SPLIT 1/16 2103/0305 | 1 | $0.44 | |||
| 14 | BELLOWS 2000/0030 | 1 | $40.92 | |||
| 15 | THIN HEX NUT 1/4 UNF 1340/0002Z | 1 | $6.38 | |||
| 16 | (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.26 | |||
| 17 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 18 | SPRING throttle overload 814/10179 | 1 | $16.93 | |||
| 19 | LEVER EXTENSION throttle 331/40881 | 1 | $11.63 | |||
| 20 | ENGINE MOUNT throttle 331/40859 | 1 | $67.16 | |||
| 21 | CAP-SCREW M_6 L-_20mm 1391/3205Z 1391/3205 | 1 | $0.85 | |||
| 22 | CAP SCREW M6x16 1391/3203Z | 1 | $14.07 | |||
| 23 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 24 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

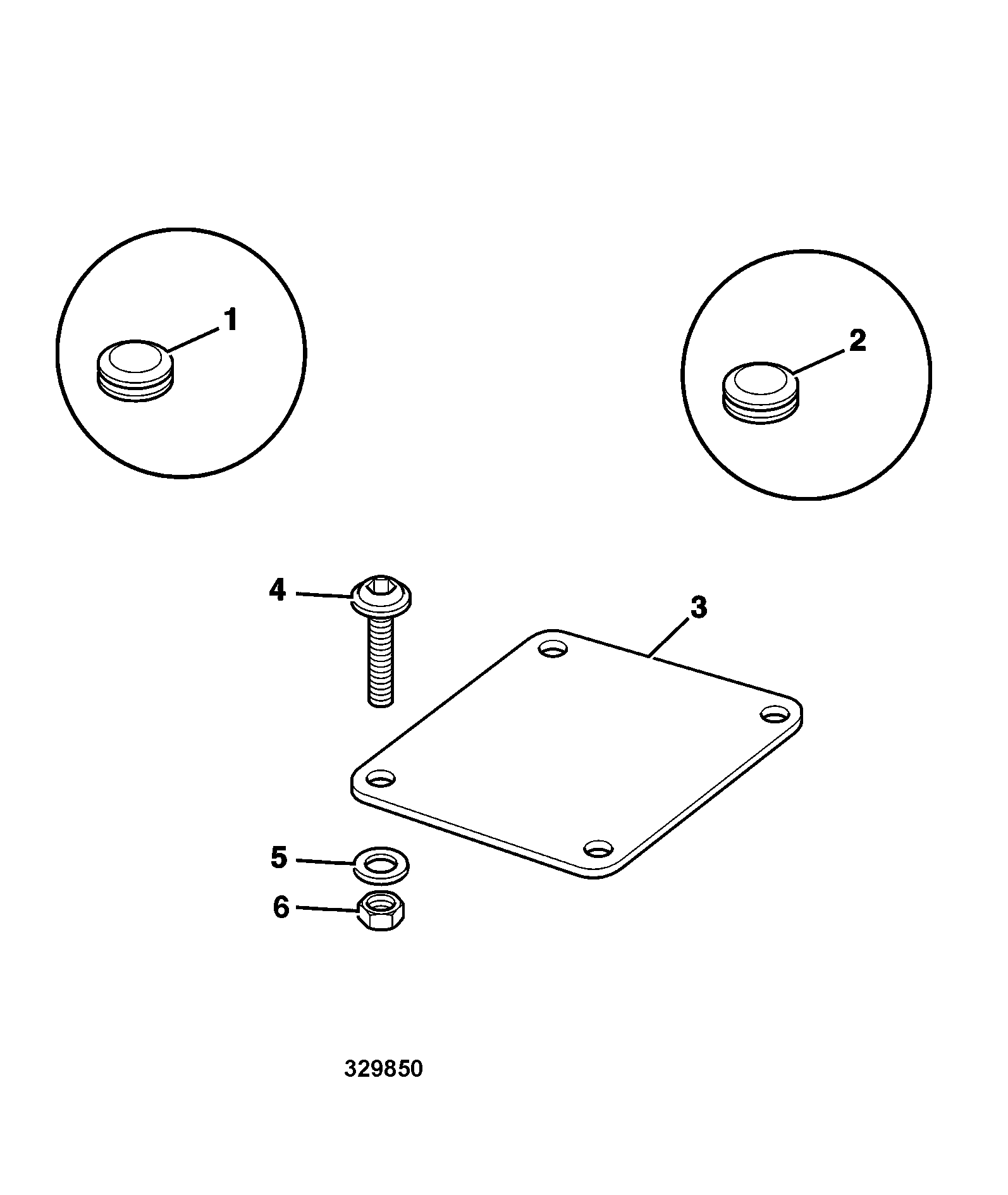

DIAG-D1-5-20-401764 D1-5-20 BLANKING KIT MANUAL AUX (REQ'D ELEC AUX)
View Diagram -
DIAG-D2-1-2-401764 D2-1-2 CONTROL THROTTLE RG & RJ BUILD
View Diagram -

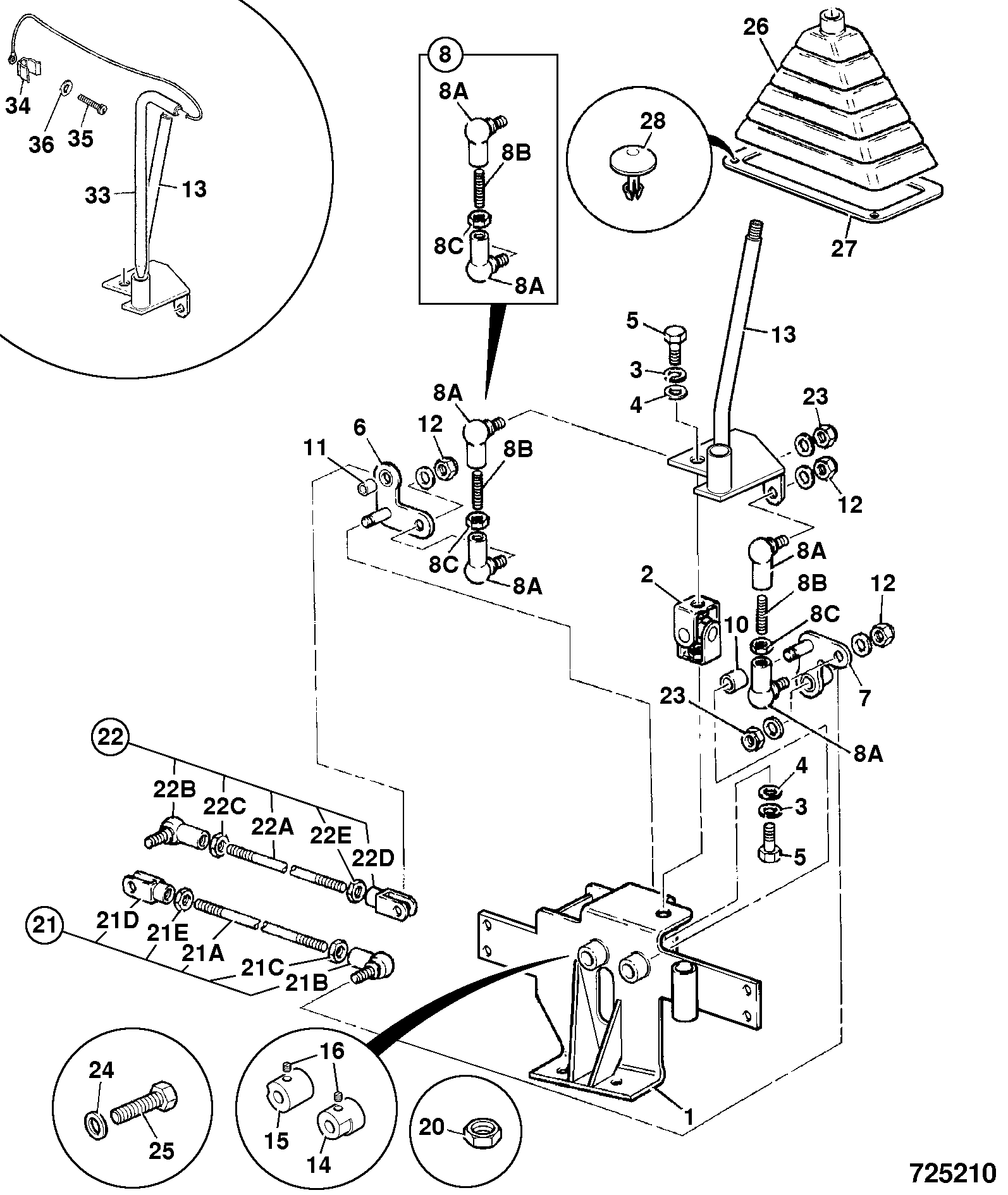

DIAG-D1-5-6-401764 D1-5-6 CONTROL LEVERS LONG,FULL LOCK LOADER PATTERN (FLOW SHARE)
View Diagram
