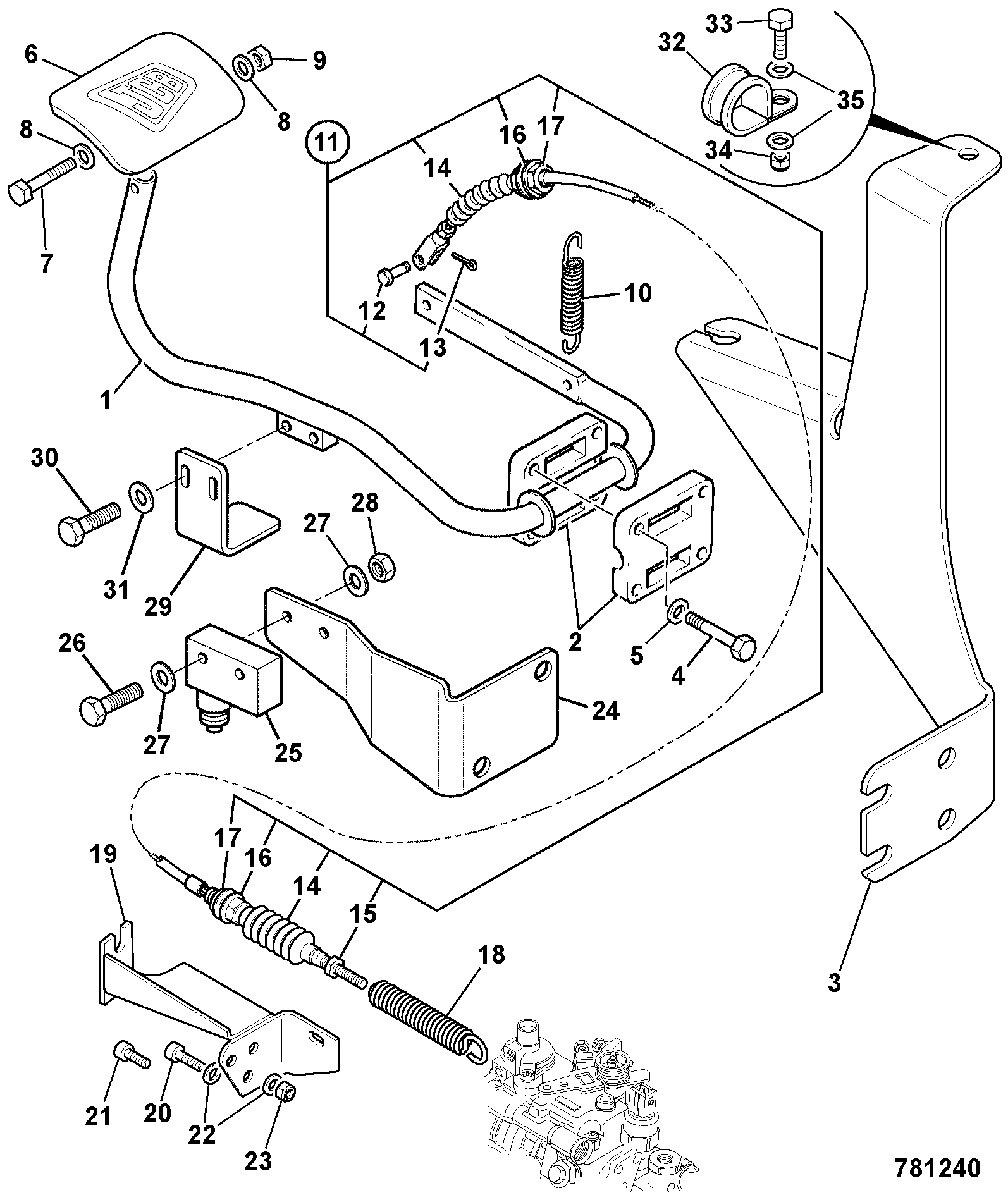

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA ACCELERATOR PEDAL 4SPD 331/31361 | 1 | $134.48 | |||
| 2 | BEARING-ACCELERA 160/00486 | 1 | $16.64 | |||
| 3 | THROTTLE REACTI BRKT LDL - MRP REMOVED 331/49502 | 1 | $98.18 | |||
| 4 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 5 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 6 | FOOT PAD 589/10130 | 1 | $35.73 | |||
| 7 | SET-SCREW M_5 L-25mm 1315/0107Z | 1 | $0.85 | |||
| 8 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 9 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 10 | SPRING 814/10195 | 1 | $28.59 | |||
| 11 | (W) (P) ACCELERATOR CABLE 331/51612 | 1 | $295.52 | |||
| 12 | PIN CLEVIS 2101/0002 | 1 | $34.68 | |||
| 13 | PIN SPLIT 1/16 2103/0305 | 1 | $0.44 | |||
| 14 | BELLOWS 2000/0030 | 1 | $40.92 | |||
| 15 | THIN HEX NUT 1/4 UNF 1340/0002Z | 1 | $6.38 | |||
| 16 | (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.26 | |||
| 17 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 18 | SPRING throttle overload 814/10179 | 1 | $16.93 | |||
| 19 | BRKT-THROTTLE REACTION 331/51327 | 1 | $17.43 | |||
| 20 | SCREW, STAR DRIVE M8 x 30(KANBAN) 1319/0308Z | 1 | $27.57 | |||
| 21 | BRKT-THROTTLE EXTENSION 331/51328 | 1 | $19.80 | |||
| 22 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 23 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 24 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 25 | P-CLIP - 13mm 821/10087 | 1 | $12.69 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-D2-1-1-400712 D2-1-1 CONTROL THROTTLE 4 SPEED CRT3 6 Speed CRT 3
View Diagram -
DIAG-D2-1-2-400712 D2-1-2 CONTROL,THROTTLE 5 SPEED
View Diagram -
DIAG-D2-5-1-400712 D2-5-1 CONTROL THROTTLE 4 SPEED CRT3 ELECTRONIC
View Diagram
