Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | PROXIMITY SWITCH 332/C8166 | 1 | $342.65 | |||
| 20 | PLAIN WASHER M4 (BR3) 1420/0004D | 1 | $0.58 | |||
| 30 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 40 | CAP SCREWS METRIC M4 X 25 1391/9407D | 1 | $3.09 | |||
| 50 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 60 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 70 | NUT M_4 STD SELF LOCK 1370/9403D | 1 | $1.43 | |||
| 90 | LIFT RESET BRKT - 427 333/U9163 | 1 | $36.41 | |||
| 100 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 110 | P CLIP (FOR 10 O.D. PIPE) 821/00410 | 1 | $16.76 | |||
| 120 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 130 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 140 | DEUTSCH MOUNTING CLIP M10 7210/0089 | 1 | $14.07 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

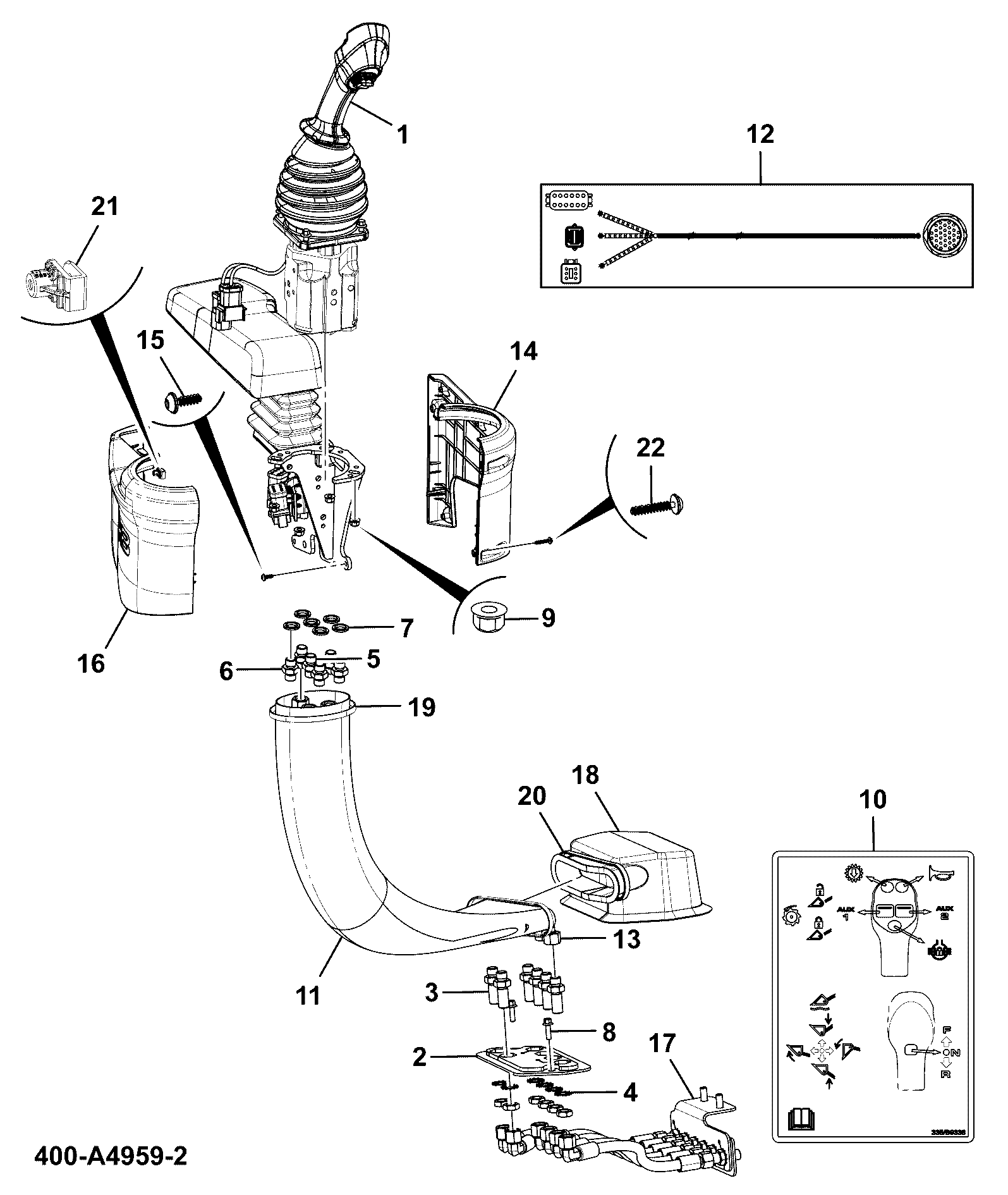

DIAG-D110-20-1-404814 D110-20-1 LOADER CONTROLS JOYSTICK 3 SPOOL, PROPORTIONAL
View Diagram -

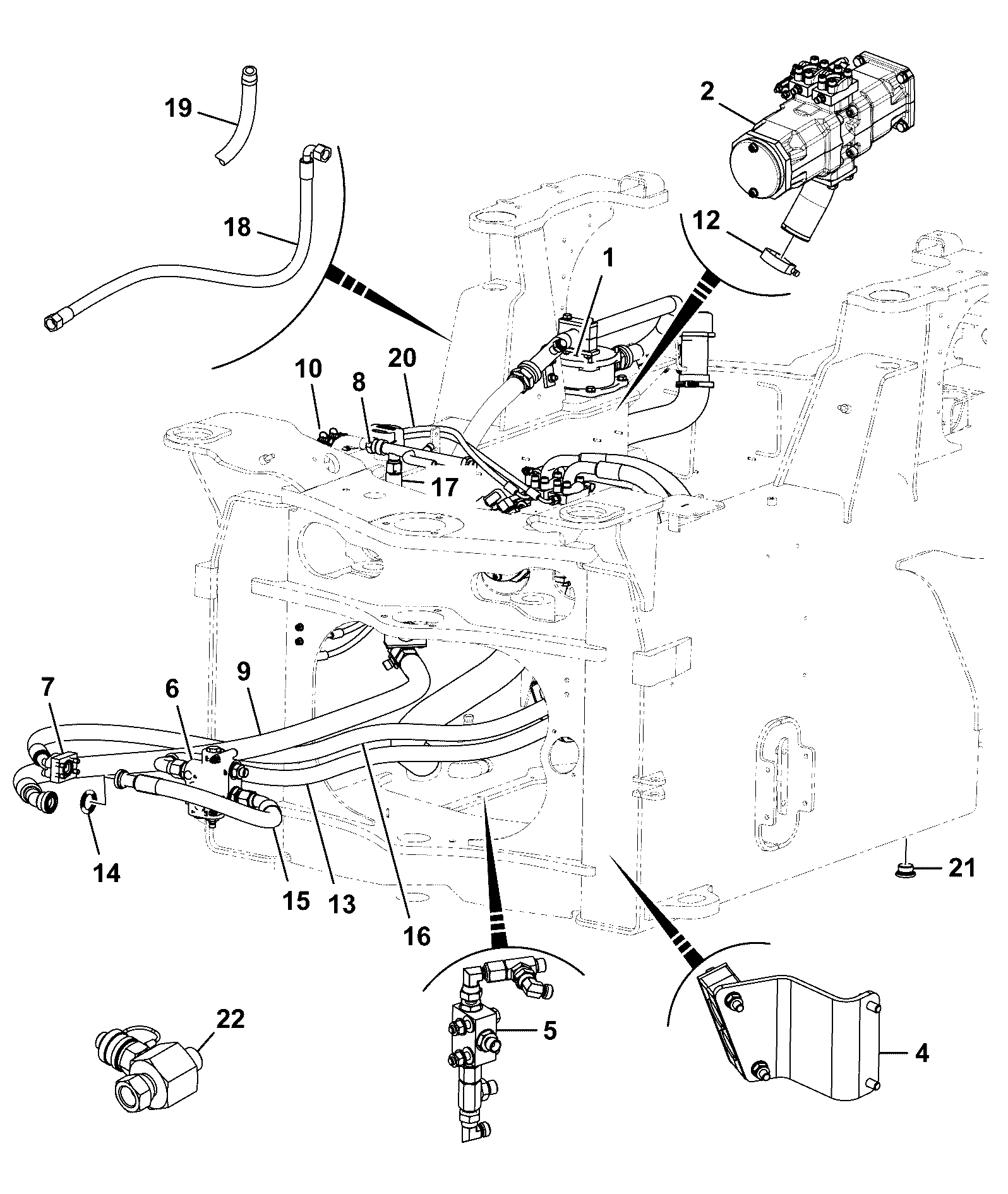

DIAG-E0-1-1-404814-15756270 E0-1-1 HYDRAULIC INSTALLATION ASSEMBLIES MAIN HYDRAULICS CIRCUIT
View Diagram -

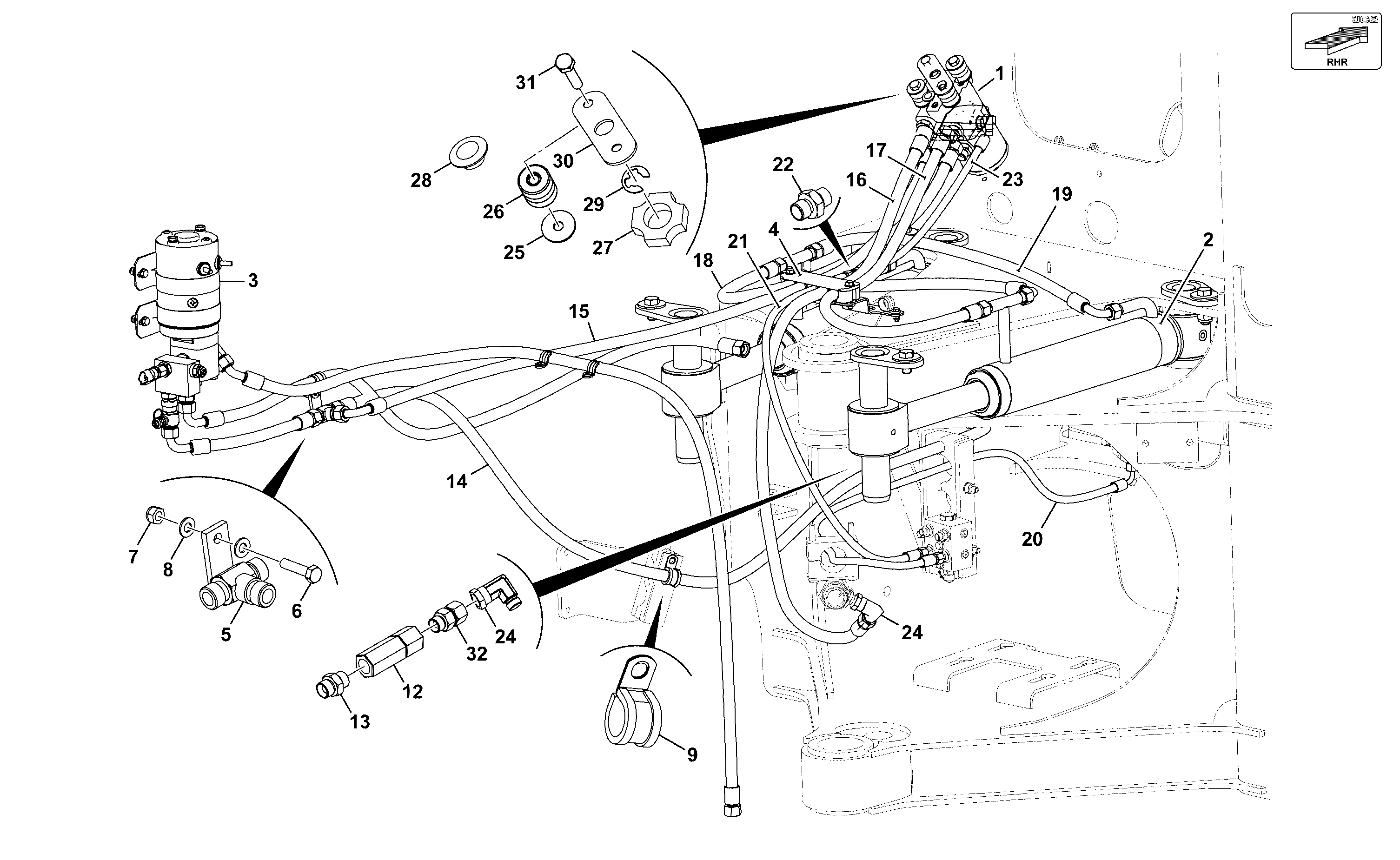

DIAG-E100-5-1-404814 E100-5-1 HYDRAULIC CIRCUIT INSTALLATION ASSEMBLIES STEER ASSEMBLY- HYDRAULICS , 427/437T4F W TY
View Diagram
