Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | SPACER 830/00599 | 1 | $2.40 | |||
| 2 | RESET WEAR PAD 332/W3727 | 1 | $36.15 | |||
| 3 | RESET REACTION BAR 402/V6805 | 1 | $107.00 | |||
| 4 | BAR Z LIFT RESET 265/01055 | 1 | $585.06 | |||
| 5 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 6 | (W) BOLT M8x80 1315/3318D | 1 | $3.67 | |||
| 7 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 8 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 9 | HEX-SCREW M16 L-_30mm LG 1315/0708D | 1 | $5.07 | |||
| 10 | WASHER LARGE 1412/0007D | 1 | $5.07 | |||
| 11 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 12 | PROXIMITY SWITCH 332/W8793 | 1 | $362.28 | |||
| 13 | NUT M4 LOCK G8 1370/9403N | 1 | $1.67 | |||
| 14 | WASHER - PLAIN METRIC M4 (P461)(R) 1420/0004N | 1 | $3.40 | |||
| 15 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 16 | CAP SCREW M4 x 30 400/Y1675 | 1 | $0.81 | |||
| 27 | P CLIP (FOR 10 O.D. PIPE) 821/00410 | 1 | $16.76 | |||
| 28 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 29 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 30 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 31 | CABLE TIE - BLACK 210mm 826/01453 | 1 | $1.49 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-D190-5-1-404975 D190-5-1 OTHER MECHANICAL CONTROLS LIFT RESET ASSEMBLY
View Diagram -

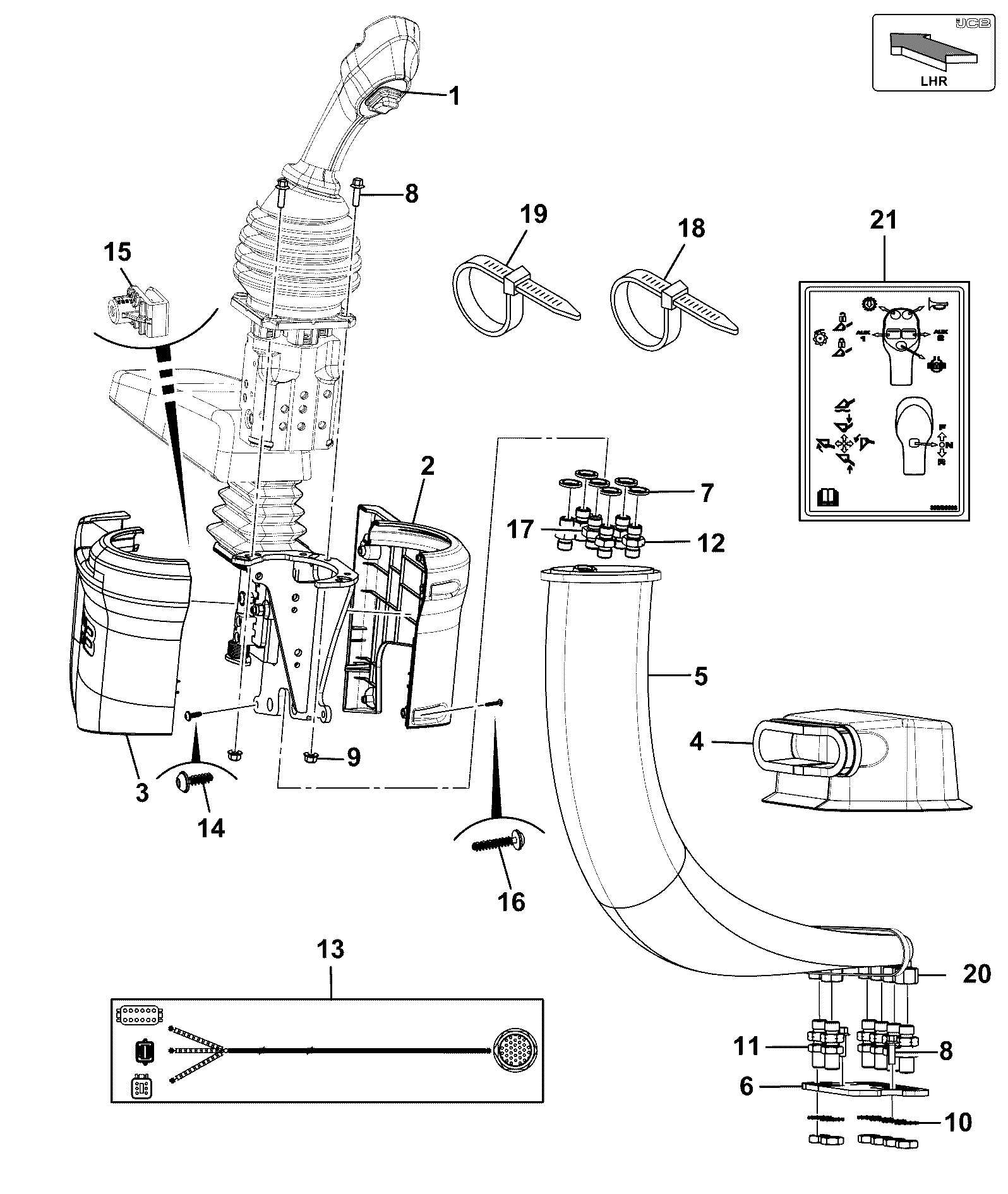

DIAG-D110-50-1-404975 D110-50-1 LOADER CONTROLS JOYSTICK - 4 SP PROPNL
View Diagram -

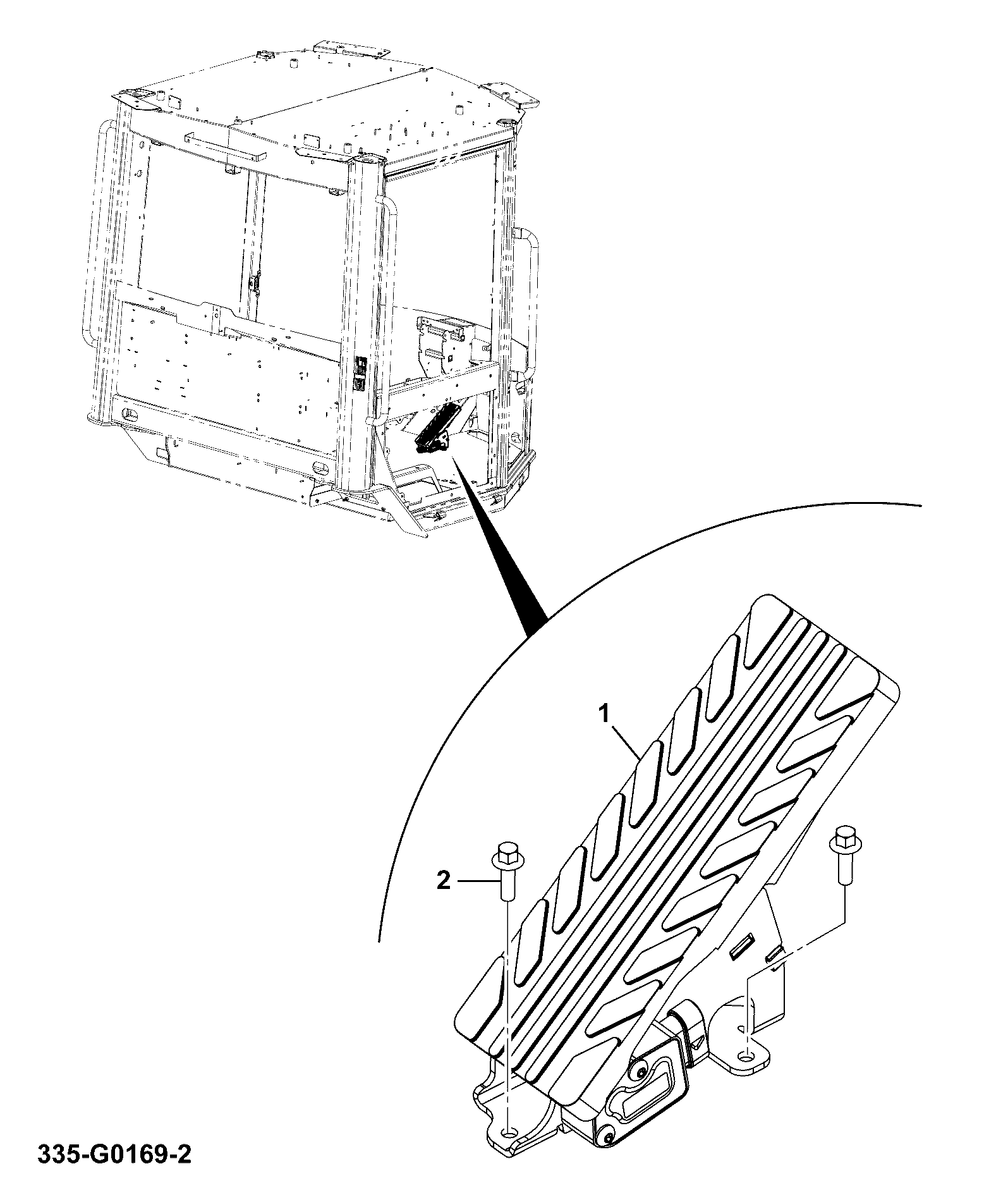

DIAG-D210-1-1-404975 D210-1-1 THROTTLE CONTROL THROTTLE PEDAL CS
View Diagram
