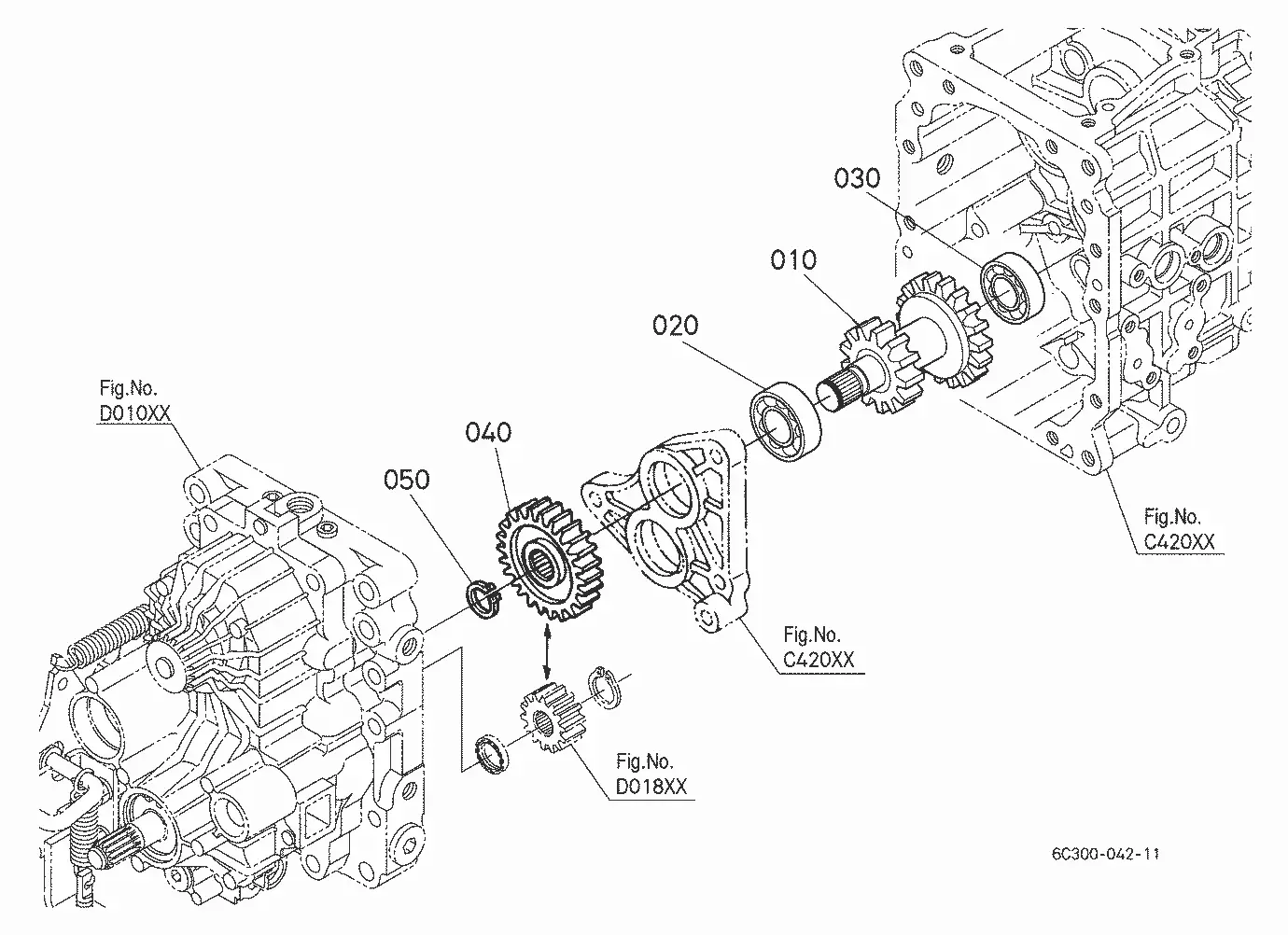

Kubota B2320HSDN D15500 4TH SHAFT Parts Diagram
Exploded-view parts diagram "D15500 4TH SHAFT" for the Kubota B2320HSDN. 4 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BEARING, BALL 61361-14280 | 1 | $18.94 | ||||
| COUPLING 6C050-14520 | 1 | $26.51 | ||||
| GEARSHAFT 6C300-14410 | 1 | $281.22 | ||||
| Spindle Ball Bearing 6A700-16570 08101-06205 | 1 | $11.98 | ||||
Showing 1 to 4 of 4 parts
Related Assemblies
-
DIAG-D15200-84464 D15200 3RD SHAFT
View Diagram -

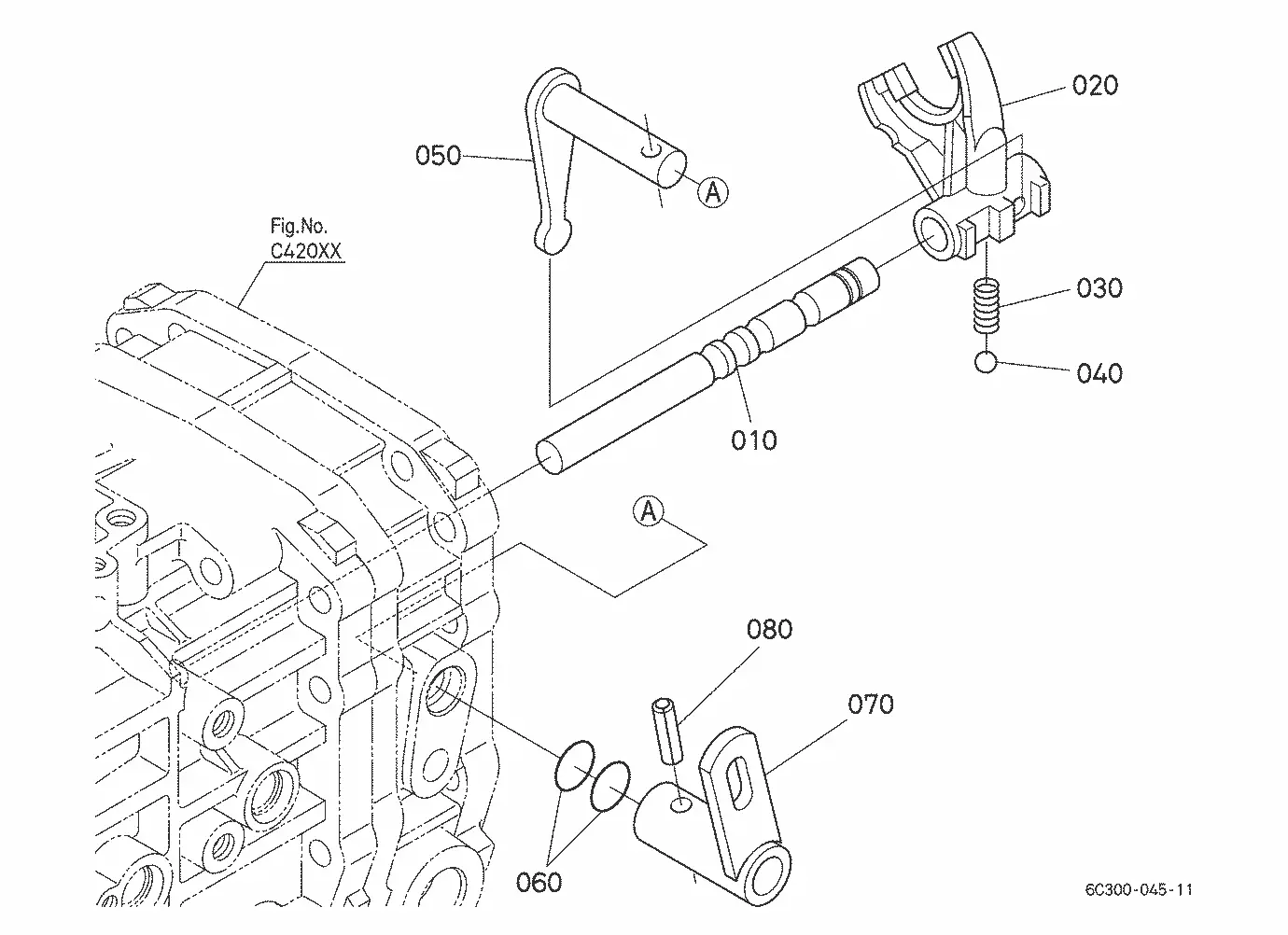

DIAG-D21700-84464 D21700 RANGE GEAR SHIFT FORK
