Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY DIFFERENTIA 6C040-97910 6C040-97915 | 1 | $1,198.85 | |||
| 020 | ASS GEAR BEVEL 6C040-97920 6C040-97922 | 1 | $607.29 | |||
| 030 | CASE, DIFFERENTI 6C040-14970 6C040-14973 | 1 | $169.03 | |||
| 040 | SHAFT, DIFF PINI 67711-14912 | 1 | $26.57 | |||
| 050 | PINION, DIFFEREN 66101-14930 67711-14920 | 1 | $92.68 | |||
| 060 | GEAR, DIFF SIDE 6C040-14930 6C040-14932 | 1 | $149.29 | |||
| 070 | SHIM 67211-15160 | 1 | $9.22 | |||
| 070 | SHIM 67211-15170 | 1 | $9.24 | |||
| 070 | SHIM, 3 67211-15180 | 1 | $9.22 | |||
| 080 | PIN, KNOCK 66591-14793 66591-14792 | 1 | $3.37 | |||
| 090 | PIN 66591-14783 | 1 | $11.31 | |||
| 100 | BOLT 67810-56680 | 1 | $1.81 | |||
| 110 | BEARING,BALL 6C140-14990 Discontinued | 1 | $36.94 | |||
| 120 | Front/Rear Differential Bearing TD030-12820 08101-06010 | 1 | $31.42 | |||
| 130 | SHIM 66611-15140 | 1 | $2.19 | |||
| 130 | SHIM, DIFF SIDE 66591-14982 66591-14980 | 1 | $2.00 | |||
| 130 | SHIM, DIFF SIDE K7591-15870 66591-14990 | 1 | $2.87 | |||
| 140 | SHIM 66611-15150 | 1 | $2.19 | |||
| 150 | C-Clip 04611-10750 04611-00750 | 1 | $9.28 | |||
| 160 | SHAFT, DIFF GEAR 6C040-14940 | 1 | $253.71 | |||
| 170 | SHAFT, DIFF GEAR 6C040-14950 | 1 | $252.40 | |||
| 180 | BRG BALL RADIAL3 08101-06306 | 1 | $21.20 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-G10300-84452 G10300 FRONT WHEEL HUB
View Diagram -

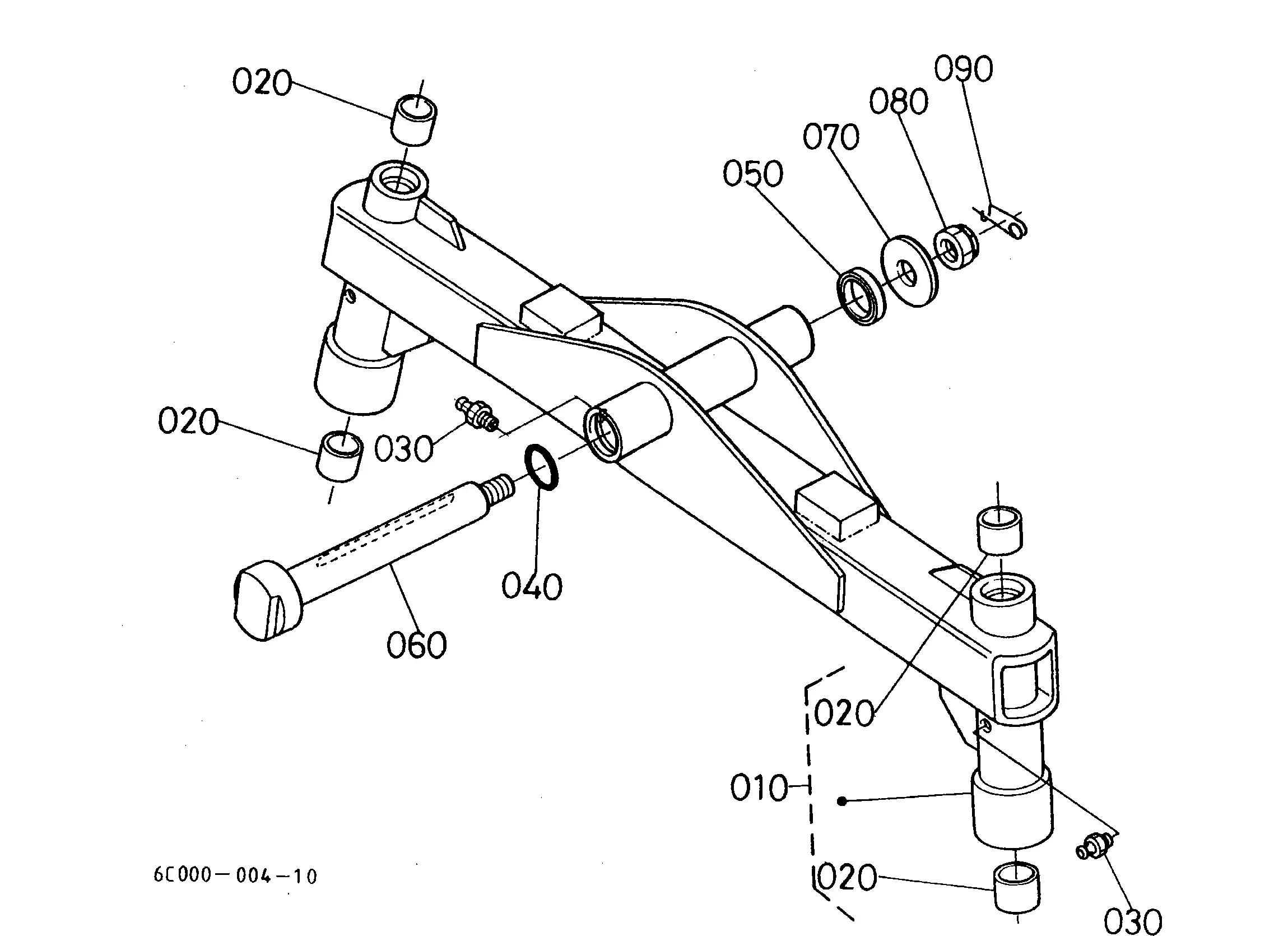

DIAG-G10100-84452 G10100 FRONT AXLE FRAME
View Diagram -
DIAG-R10101-84452 R10101 FRONT WHEEL (5.00-10)
View Diagram
