Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | GAITER HANDBRAKE 331/21033 | 1 | $235.11 | |||
| 2 | PARK BRAKE LEVER ASSY 332/P3558 | 1 | $160.76 | |||
| 3 | Plate gaiter 331/21066 | 1 | $2.44 | |||
| 4 | SCREW M6x25 BUTTON SOCKET 826/01560 | 1 | $4.18 | |||
| 5 | GROMMET 2410/1113 | 1 | $3.49 | |||
| 6 | SWITCH.PARK BRAKE.RTFL 701/72500 | 1 | $142.31 | |||
| 7 | BOLT M8x50 1315/3312D | 1 | $4.21 | |||
| 8 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 9 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | SCREW SHOULDERED 826/10836 | 1 | $77.94 | |||
| 12 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 13 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 14 | Bracket Handbrake 335/01751 | 1 | $338.33 | |||
| 15 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 16 | M6 LOW PROFILE HEX BOLLHO (BR3) 826/10879 | 1 | $7.92 | |||
| 18 | PARKBRAKE COVER PLATE 331/50940 | 1 | $35.47 | |||
| 19 | NUT M_8 BOLHOFF 826/10977 | 1 | $2.14 | |||
| 21 | SET-SCREW M_8 L-_40mm 1315/0310D | 1 | $17.79 | |||
| 22 | SET SCREW M8 x 45 G8.8 (P564) 1315/0311D | 1 | $9.72 | |||
| 23 | Boss 265/01570 | 1 | $9.31 | |||
| 24 | SPACER BUSHING 7131/50261 | 1 | $109.59 | |||
| 25 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

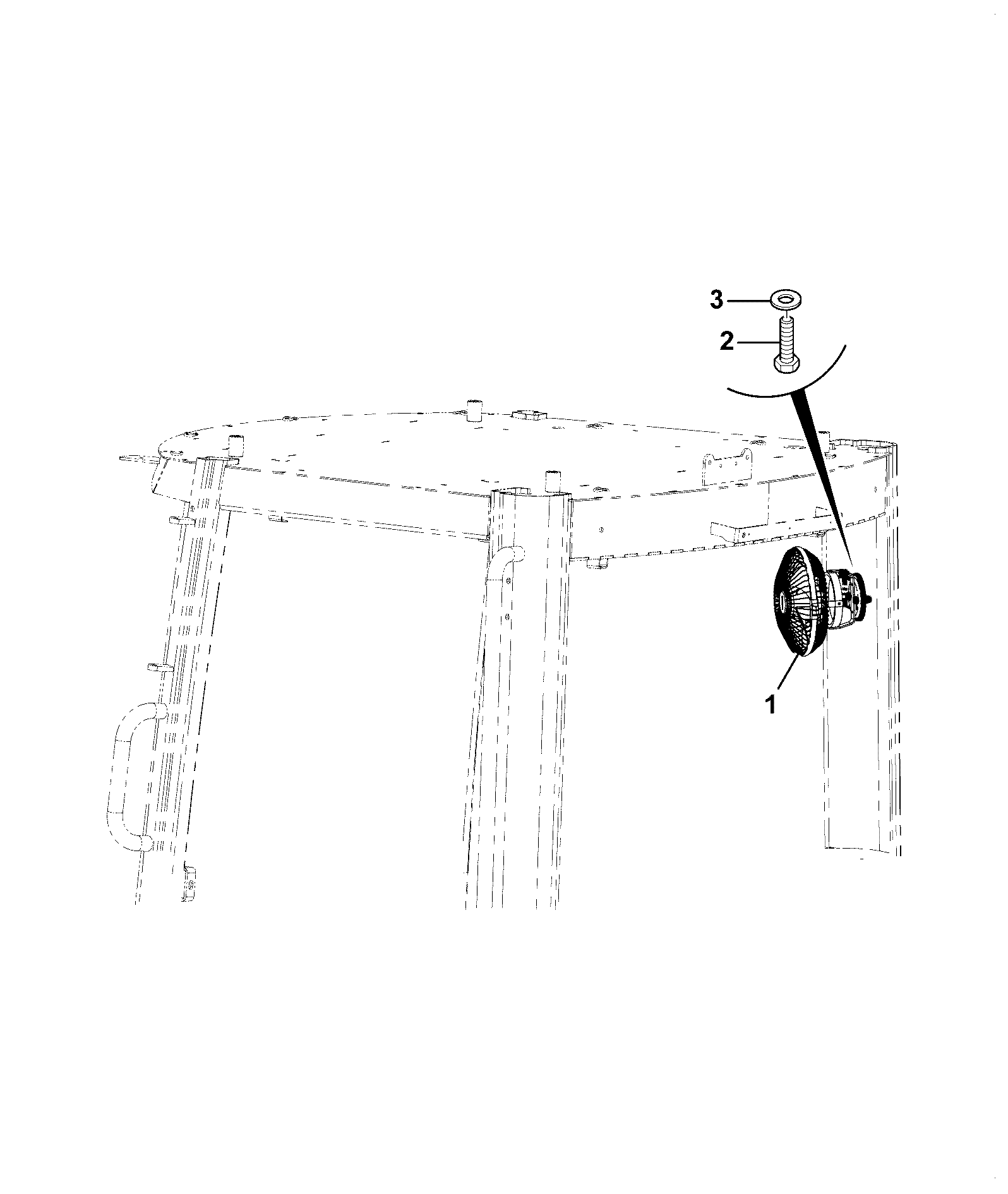

DIAG-C390-35-1-404775 C390-35-1 OTHER ELECTRICAL ITEMS FACE FAN
View Diagram -

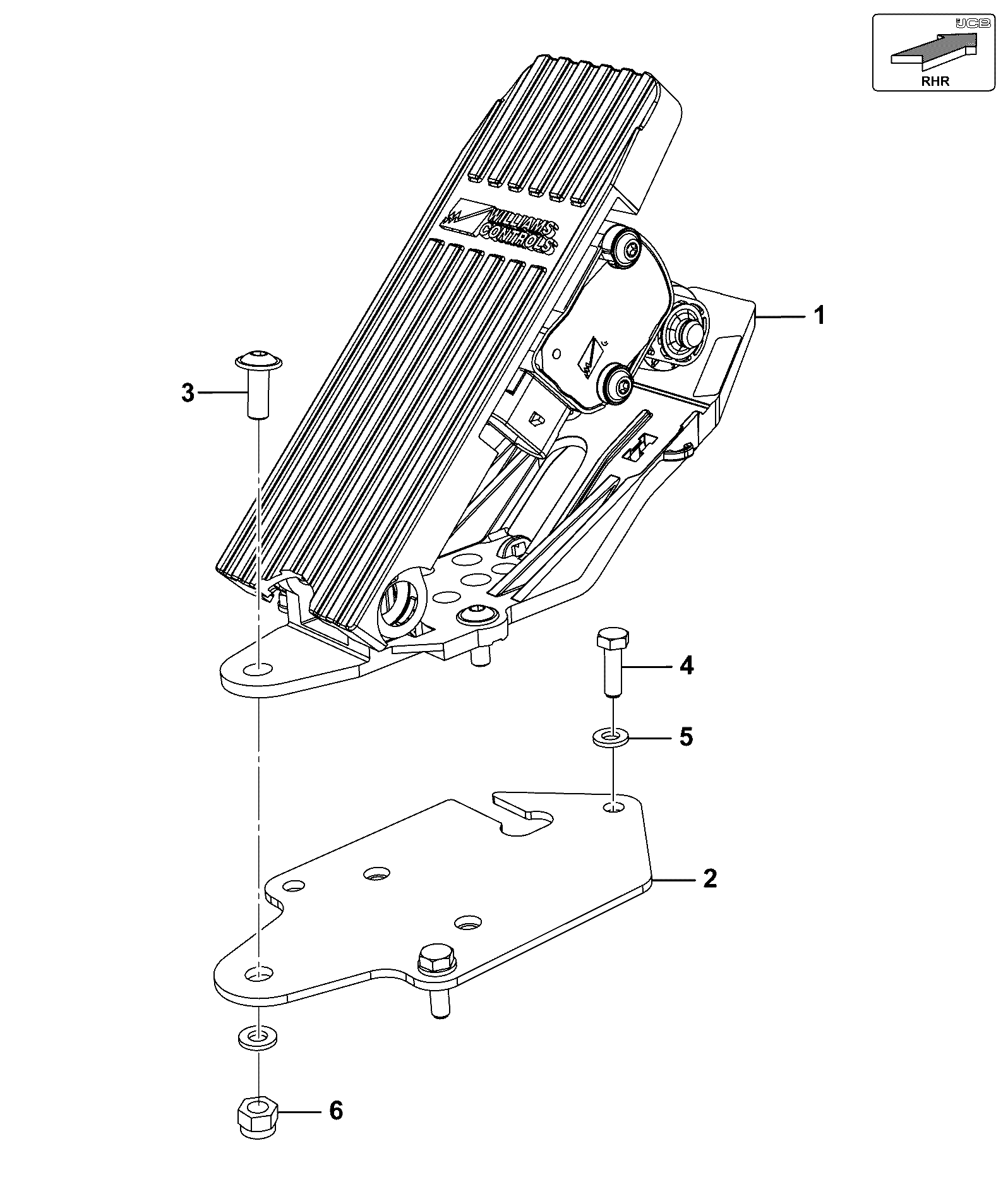

DIAG-D210-1-1-404775 D210-1-1 THROTTLE CONTROL THROTTLE PEDAL BSIV
View Diagram -

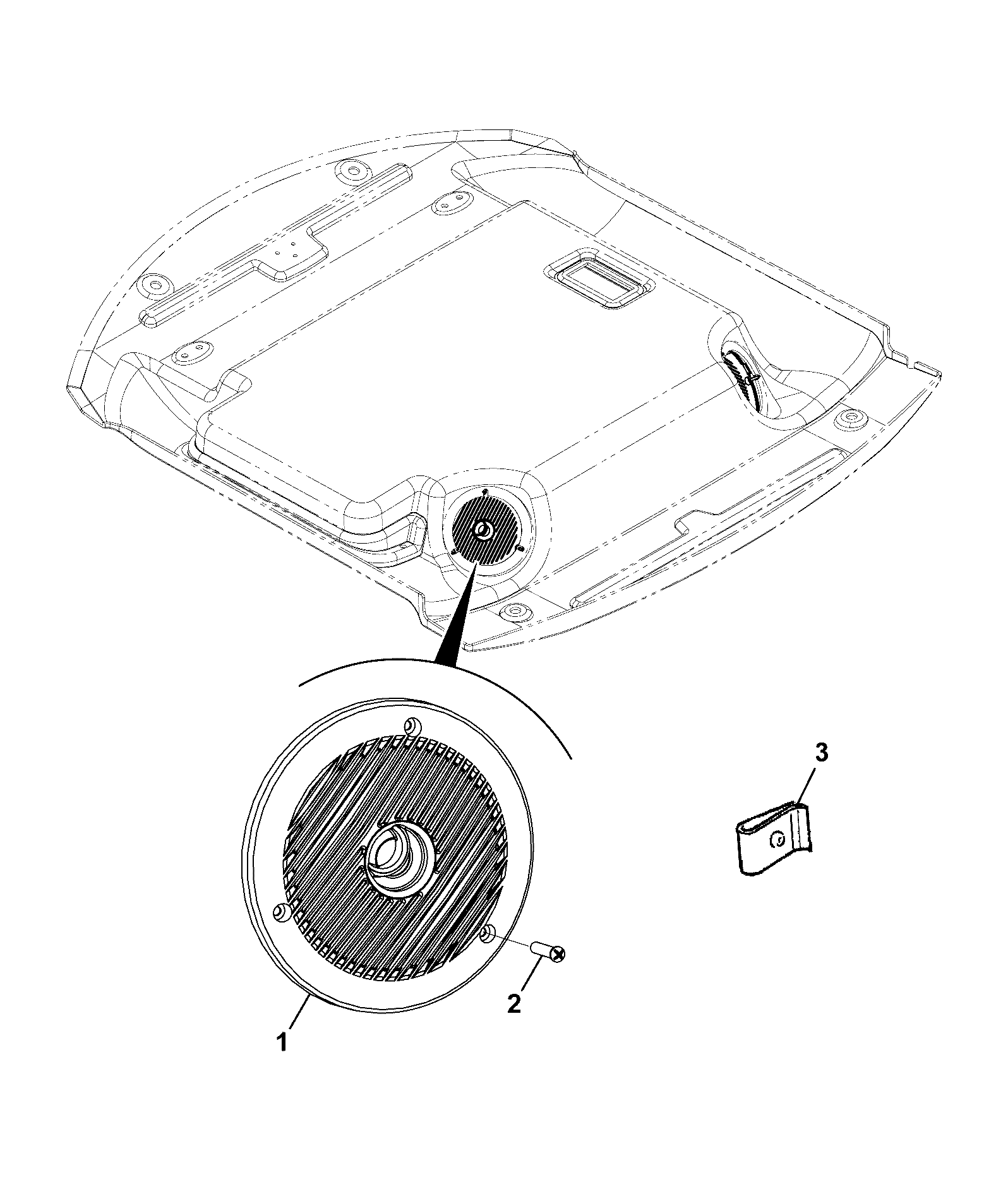

DIAG-C390-20-1-404775 C390-20-1 OTHER ELECTRICAL ITEMS ASSEMBLY SPEAKER GRILL
View Diagram
