Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CASE, MID PTO 6C040-21210 | 1 | $418.88 | |||
| 020 | PLUG 16241-96260 16241-96262 | 1 | $6.73 | |||
| 030 | SHAFT, MID PTO 6C040-21230 | 1 | $290.08 | |||
| 040 | Spindle Ball Bearing 6A700-16570 08101-06205 | 1 | $11.98 | |||
| 050 | Bearing PL501-12140 08101-06203 | 1 | $10.98 | |||
| 060 | Oil Seal for Mid PTO (Power Take-Off) and Differential Gear Shaft 32430-25542 32430-25540 | 1 | $20.45 | |||
| 070 | Clip 04611-10520 04611-00520 | 1 | $3.37 | |||
| 080 | GEAR 6C040-21243 | 1 | $203.12 | |||
| 090 | COUPLING 6C120-21270 | 1 | $131.24 | |||
| 100 | BEARING, NEEDLE 08822-02413 | 1 | $16.49 | |||
| 110 | BRG NDL ROLLER20 08822-02410 | 1 | $15.69 | |||
| 120 | BOLT, FLANGE 01774-51212 | 1 | $3.93 | |||
| 130 | Seal Washer 04717-01200 | 1 | $2.26 | |||
| 140 | Straight Pin 05012-00614 | 1 | $0.80 | |||
| 150 | PIPE KNOCK 66116-11190 | 1 | $1.11 | |||
| 160 | CAM, 1-WAY CLUTC 6C040-21312 | 1 | $116.07 | |||
| 170 | BEARING, BALL 6C040-21330 | 1 | $57.14 | |||
| 190 | CAM, 1-WAY CLUTC 6C040-14520 | 1 | $61.53 | |||
| 200 | SPRING 6C040-21360 | 1 | $11.03 | |||
| 210 | Circlip Retaining Ring 04612-10200 04612-00200 | 1 | $1.07 | |||
| 220 | SPRING 6C040-21370 | 1 | $15.45 | |||
| 230 | CASE, 1-WAY 6C040-21410 Discontinued | 1 | $379.65 | |||
| 240 | O-RING 04811-06500 04816-06500 | 1 | $9.12 | |||
| 250 | Bolt (Fastener) 01120-00830 01123-50830 | 1 | $1.37 | |||
| 260 | DISK, FRICTION 6C040-21420 | 1 | $42.15 | |||
| 270 | PLATE, FRICTION 6C040-21430 | 1 | $21.90 | |||
| 280 | PLATE, SEPARATOR 6C040-21440 | 1 | $22.82 | |||
| 290 | BOLT 01120-51035 01123-51035 | 1 | $2.07 | |||
| 300 | SHAFT,IDLE 6C040-21250 6C090-21250 | 1 | $49.68 | |||
| 310 | PIN, SPRING 05411-00616 | 1 | $1.31 | |||
| 320 | GEAR,M-PTO 6C120-21220 | 1 | $207.34 | |||
| 330 | BEARING,BALL 6C120-21230 | 1 | $19.90 | |||
| 340 | COLLAR THRUST 41142-43470 | 1 | $5.44 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-

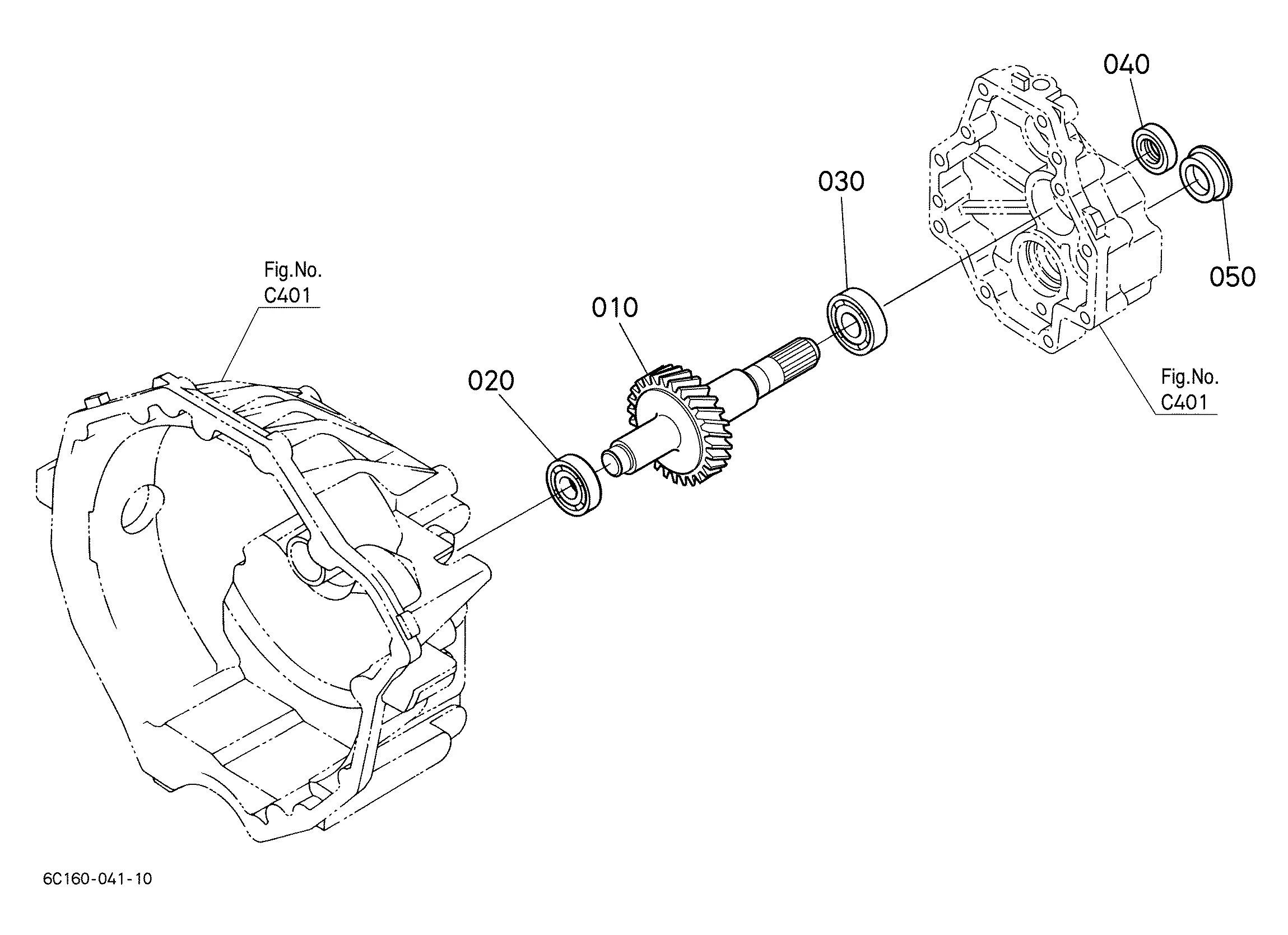

DIAG-D13501-84615 D13501 PTO SHAFT
View Diagram -

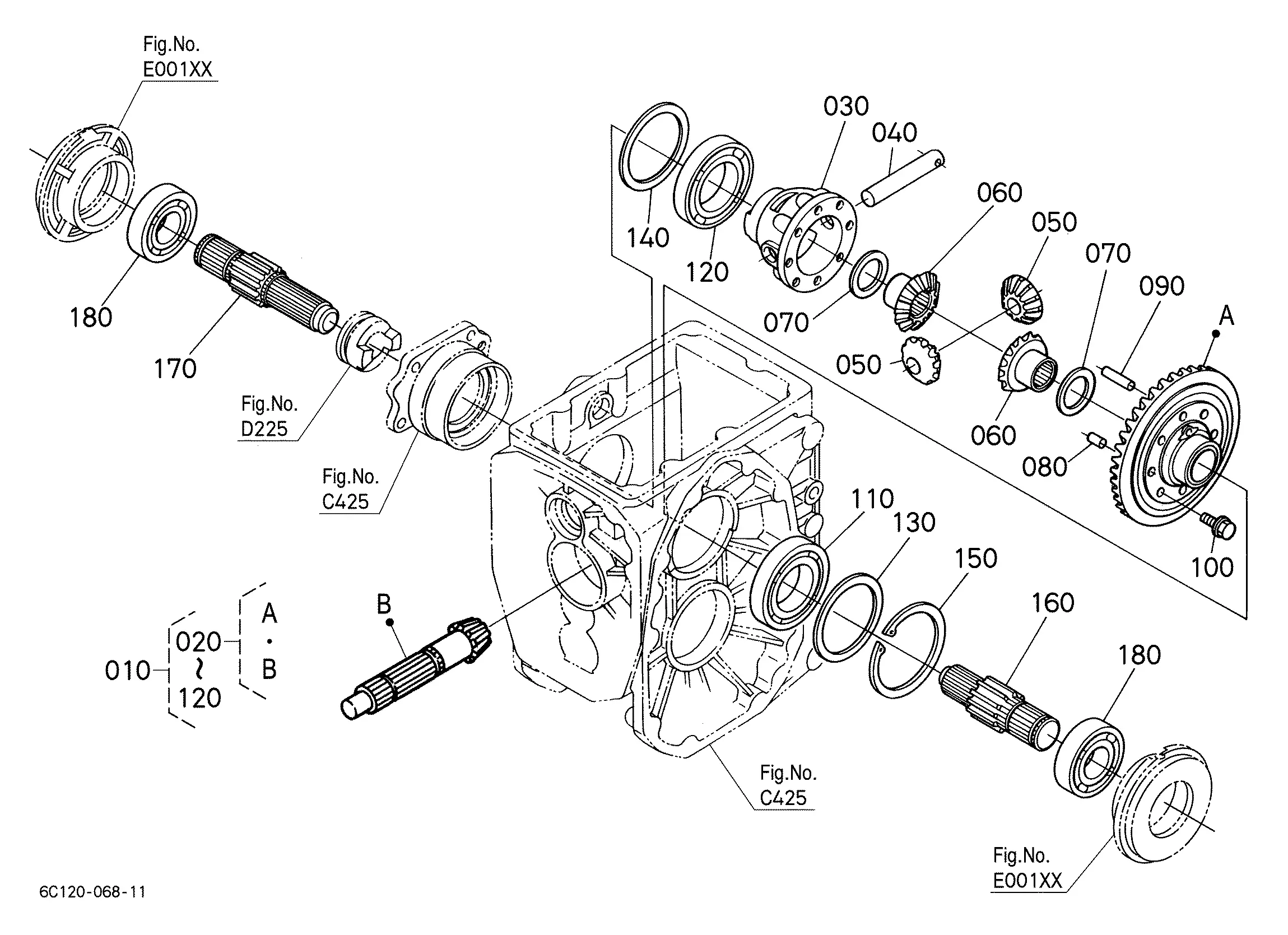

DIAG-D14000-84615 D14000 REAR DIFFERENTIAL
