Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CASE, MID PTO 6C310-21210 | 1 | $211.01 | |||
| 020 | SHAFT(M-PTO,OW) 6C600-21230 | 1 | $245.43 | |||
| 030 | Spindle Ball Bearing 6A700-16570 08101-06205 | 1 | $11.98 | |||
| 040 | Bearing PL501-12140 08101-06203 | 1 | $10.98 | |||
| 050 | Oil Seal for Mid PTO (Power Take-Off) and Differential Gear Shaft 32430-25542 32430-25540 | 1 | $20.45 | |||
| 060 | Clip 04611-10520 04611-00520 | 1 | $3.37 | |||
| 070 | GEAR(11,M-PTO,OW) 6C620-21242 | 1 | $191.84 | |||
| 080 | BEARING, NEEDLE 08822-02413 | 1 | $16.49 | |||
| 090 | COLLAR 62271-14140 | 1 | $6.06 | |||
| 100 | BOLT, FLANGE 01774-51212 | 1 | $3.93 | |||
| 110 | Seal Washer 04717-01200 | 1 | $2.26 | |||
| 120 | PIPE KNOCK 66116-11190 | 1 | $1.11 | |||
| 130 | CAM(ONE WAY CLUT 6C620-14520 | 1 | $74.50 | |||
| 140 | SPRING(2,M-PTO) 6C600-21360 | 1 | $6.70 | |||
| 150 | Circlip Retaining Ring 04612-10200 04612-00200 | 1 | $1.07 | |||
| 160 | SPRING(1,M-PTO,40) 6C600-21370 | 1 | $11.58 | |||
| 170 | DISK, FRICTION 6C040-21420 | 1 | $42.15 | |||
| 180 | PLATE, FRICTION 6C040-21430 | 1 | $21.90 | |||
| 190 | PLATE, SEPARATOR 6C040-21440 | 1 | $22.82 | |||
| 200 | Straight Pin 05012-00614 | 1 | $0.80 | |||
| 210 | Bolt 01133-61035 01133-51035 | 1 | $2.77 | |||
| 220 | SHAFT,IDLE 6C040-21250 6C090-21250 | 1 | $49.68 | |||
| 230 | PIN, SPRING 05411-00616 | 1 | $1.31 | |||
| 240 | GEAR(19,M-PTO) 6C620-21220 | 1 | $128.45 | |||
| 250 | BEARING,BALL 6C120-21230 | 1 | $19.90 | |||
| 260 | COLLAR THRUST 41142-43470 | 1 | $5.44 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

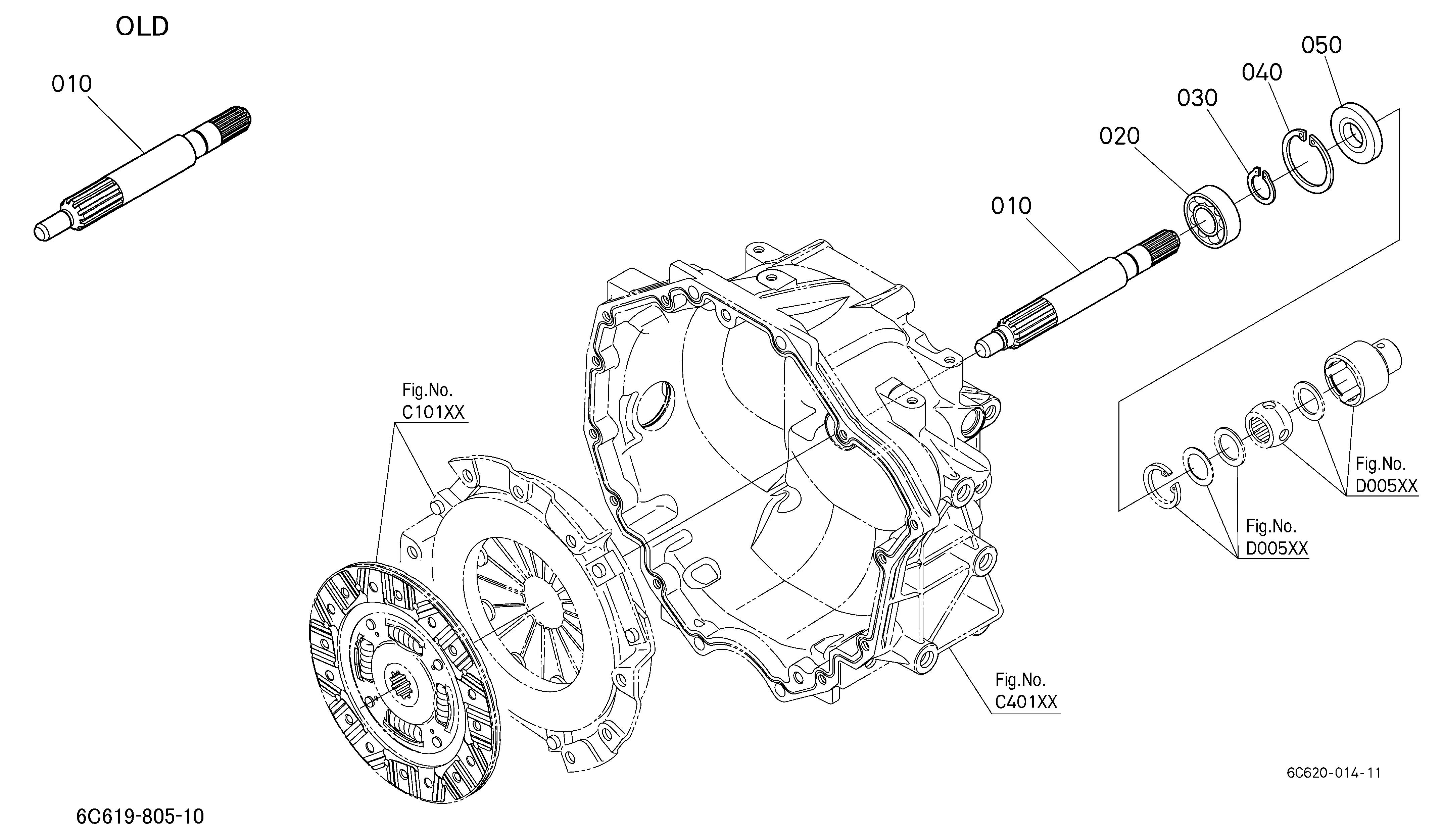

DIAG-D00100-125639 D00100 CLUTCH SHAFT
View Diagram -

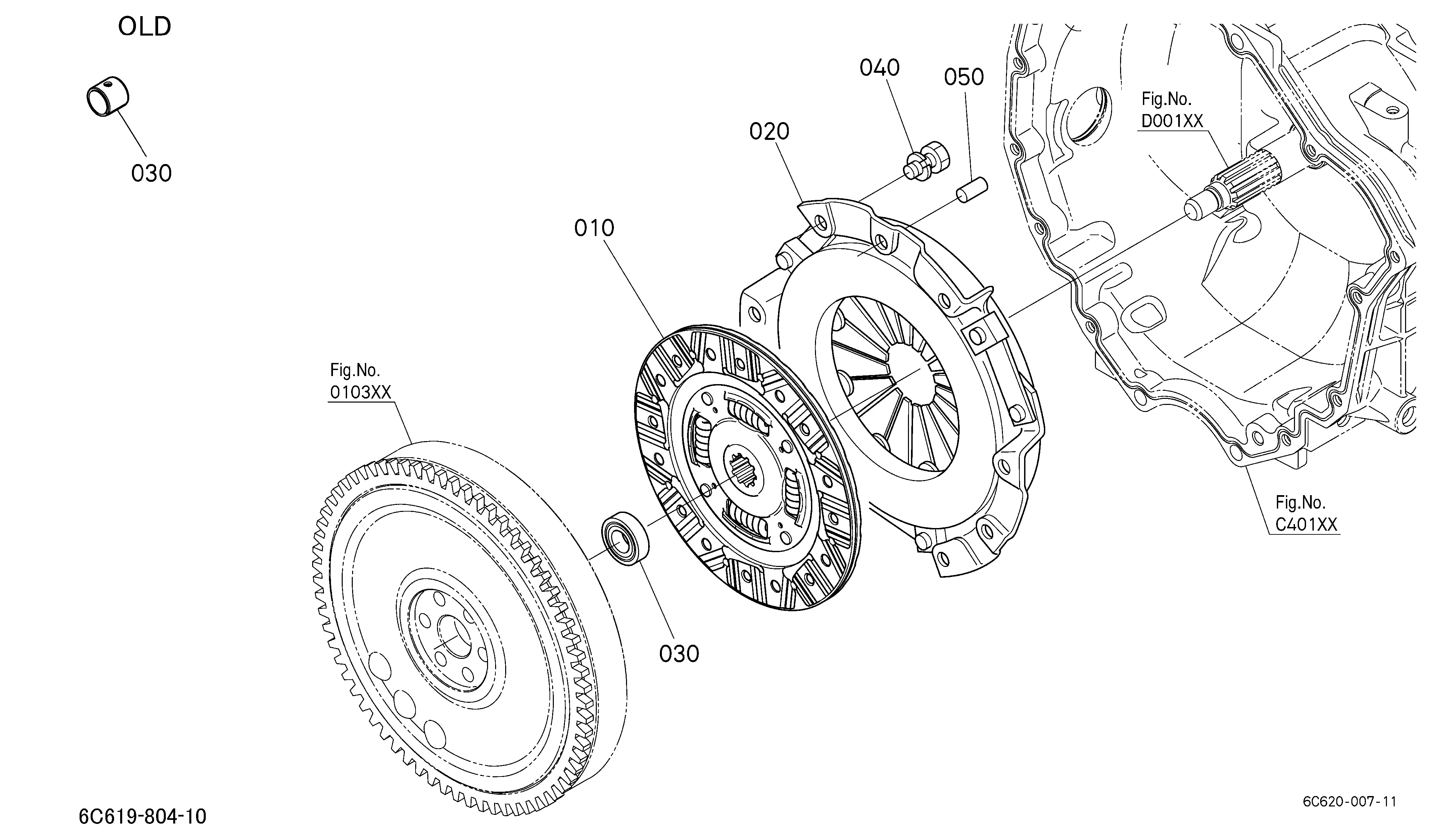

DIAG-C10101-125639 C10101 CLUTCH
View Diagram -
DIAG-C42101-125639 C42101 TRANSMISSION CASE COVER
View Diagram
