Kubota L3800H D13000 PTO COUNTERSHAFT Parts Diagram
Exploded-view parts diagram "D13000 PTO COUNTERSHAFT" for the Kubota L3800H. 19 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GEAR TC220-15154 | 1 | $389.33 | |||
| 020 | BEARING NEEDLE TC220-15160 | 1 | $27.10 | |||
| 030 | COLLAR,THRUST 38430-25233 | 1 | $19.55 | |||
| 040 | COUPLING 37150-21680 37150-21682 | 1 | $64.29 | |||
| 050 | SHAFT, COUNTER P TC220-53250 | 1 | $110.34 | |||
| 060 | BEARING, BALL (R TC220-53520 | 1 | $13.64 | |||
| 070 | CAM, CLUTCH / PT TC220-53450 | 1 | $93.28 | |||
| 080 | Spring TA240-51470 | 1 | $10.71 | |||
| 090 | WASHER 41330-76120 | 1 | $7.76 | |||
| 100 | BOLT TA140-23950 | 1 | $8.19 | |||
| 110 | GEARSHAFT, PTO TC220-53500 | 1 | $152.13 | |||
| 115 | COLLAR, THRUST TC220-23360 | 1 | $24.25 | |||
| 130 | CAM, CLUTCH / PT TC220-53440 | 1 | $78.90 | |||
| 140 | SHAFT, DRIVE PTO TC220-53684 | 1 | $100.26 | |||
| 150 | GEAR, PTO 27T TC220-53612 | 1 | $333.02 | |||
| 160 | COLLAR, DRIVE PT TC220-53622 | 1 | $12.08 | |||
| 170 | BRG 37410-57190 | 1 | $29.12 | |||
| 180 | BEARING, ROLLER 35340-25380 TC220-15180 | 1 | $105.73 | |||
| 190 | CIR CLIP 34550-62430 37410-15280 | 1 | $1.07 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

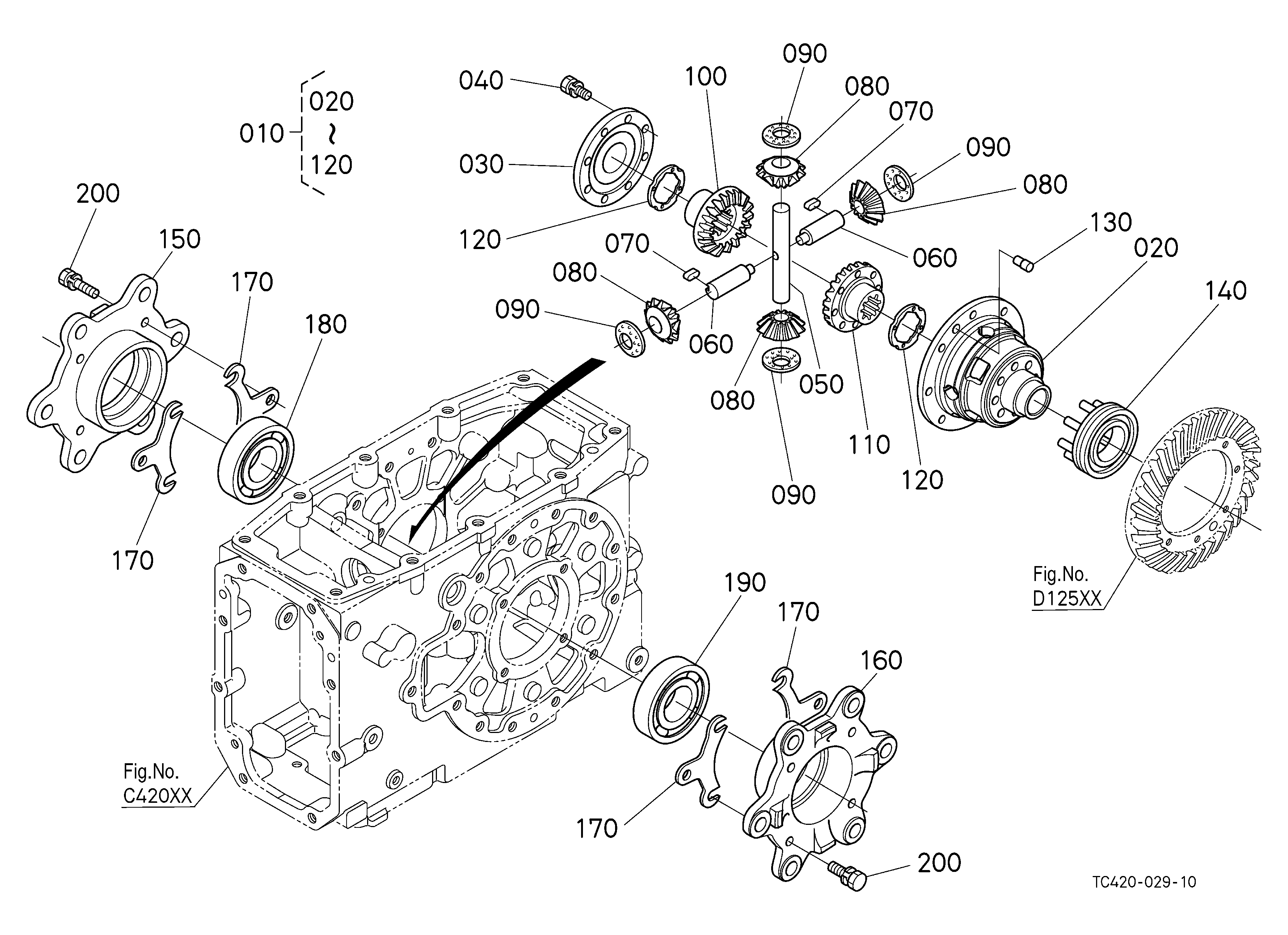

DIAG-D12700-85383 D12700 REAR DIFFERENTIAL
View Diagram -

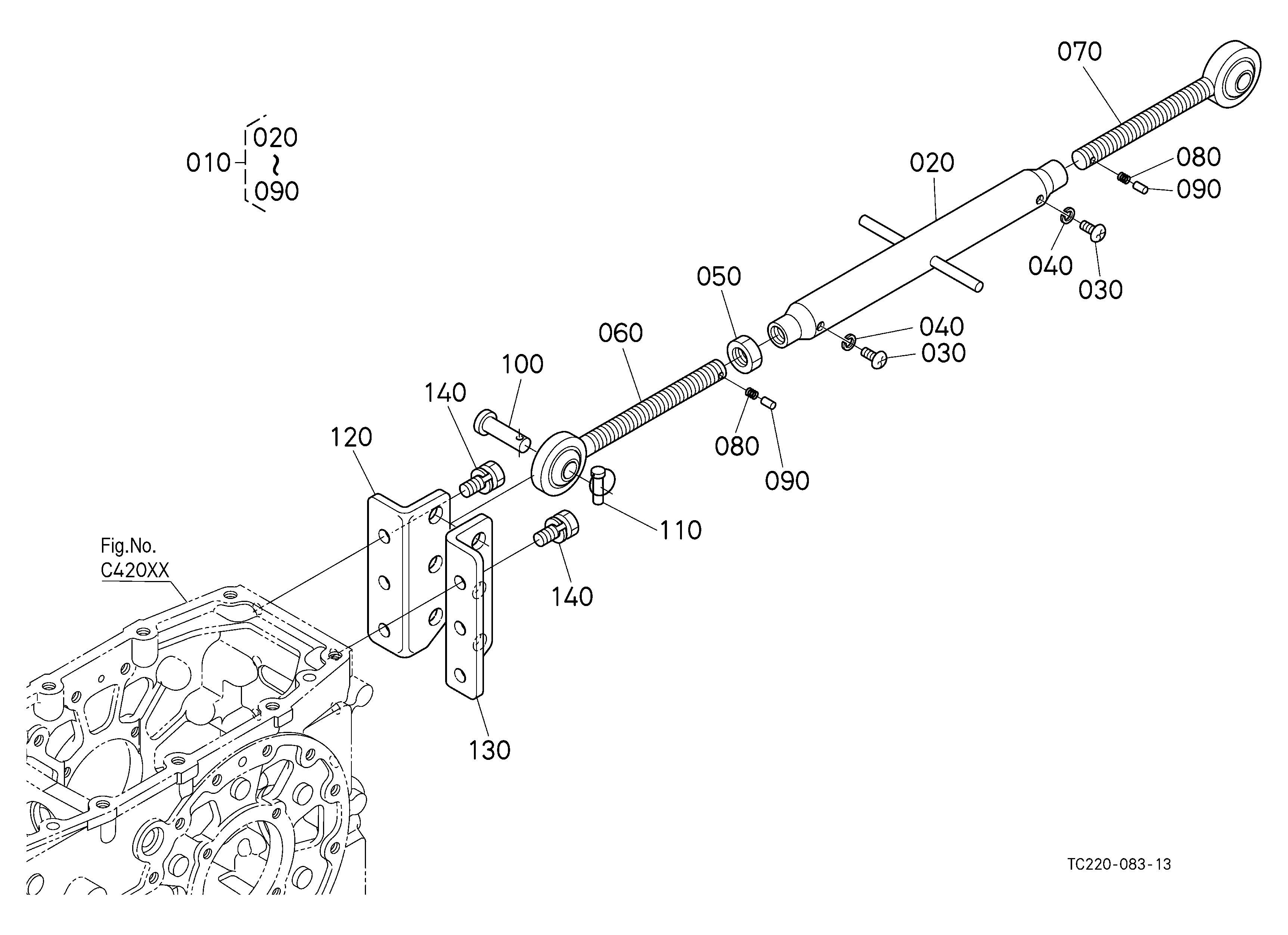

DIAG-J10500-85383 J10500 TOP LINK
View Diagram -

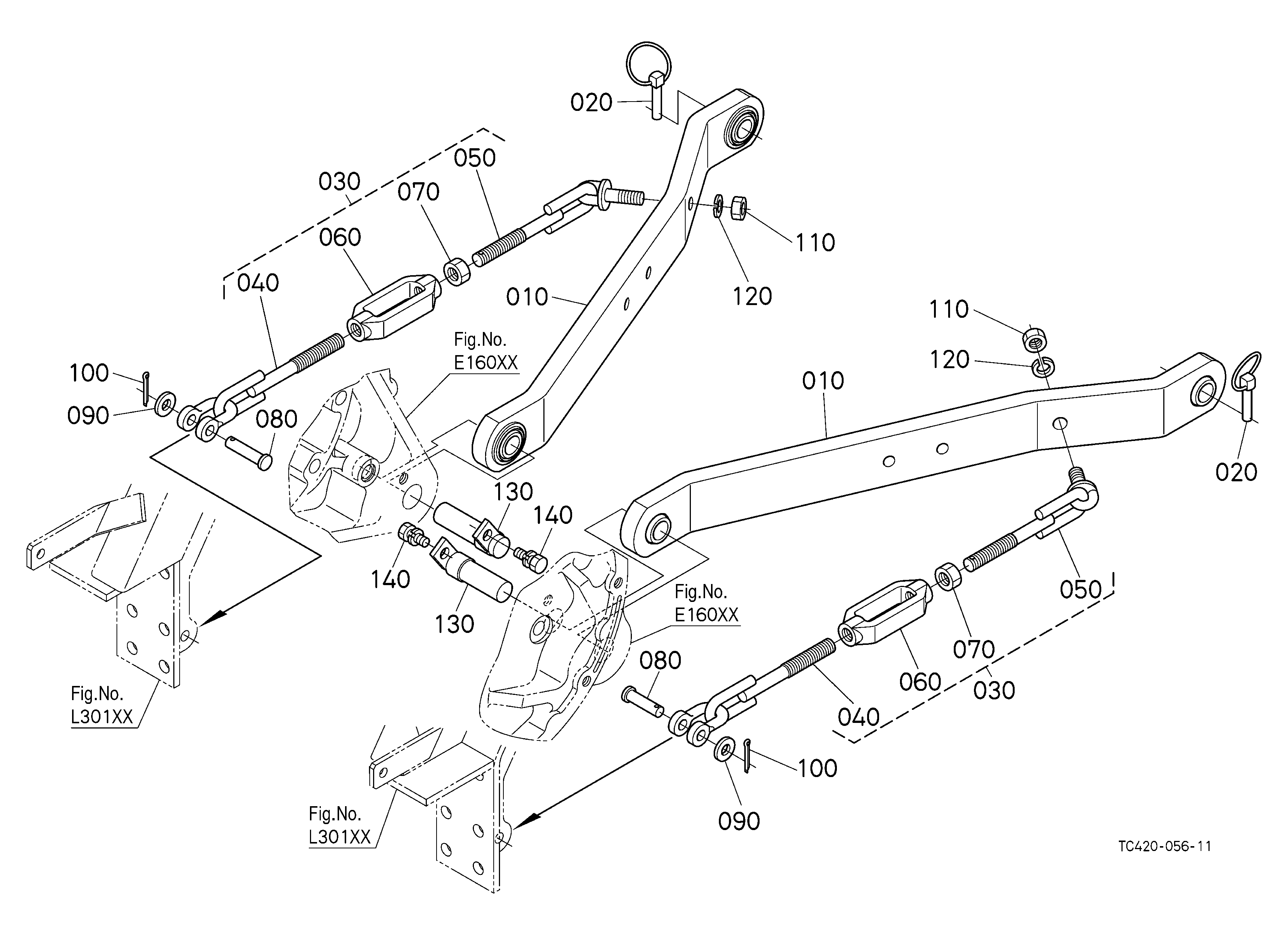

DIAG-J11001-85383 J11001 LOWER LINK [OLD]
