Kubota L3240HST D12502 SPIRAL BEVEL PINION Parts Diagram

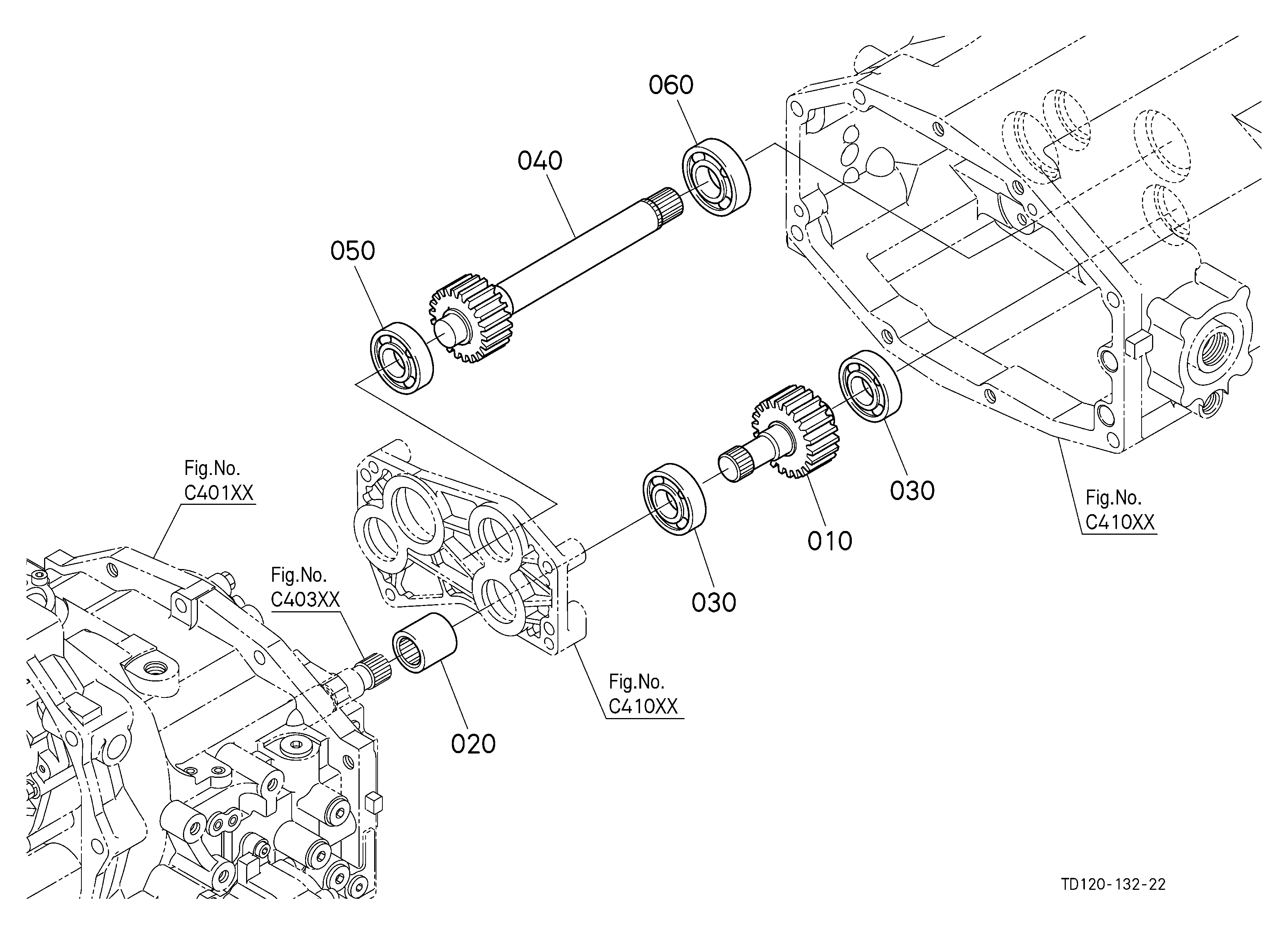

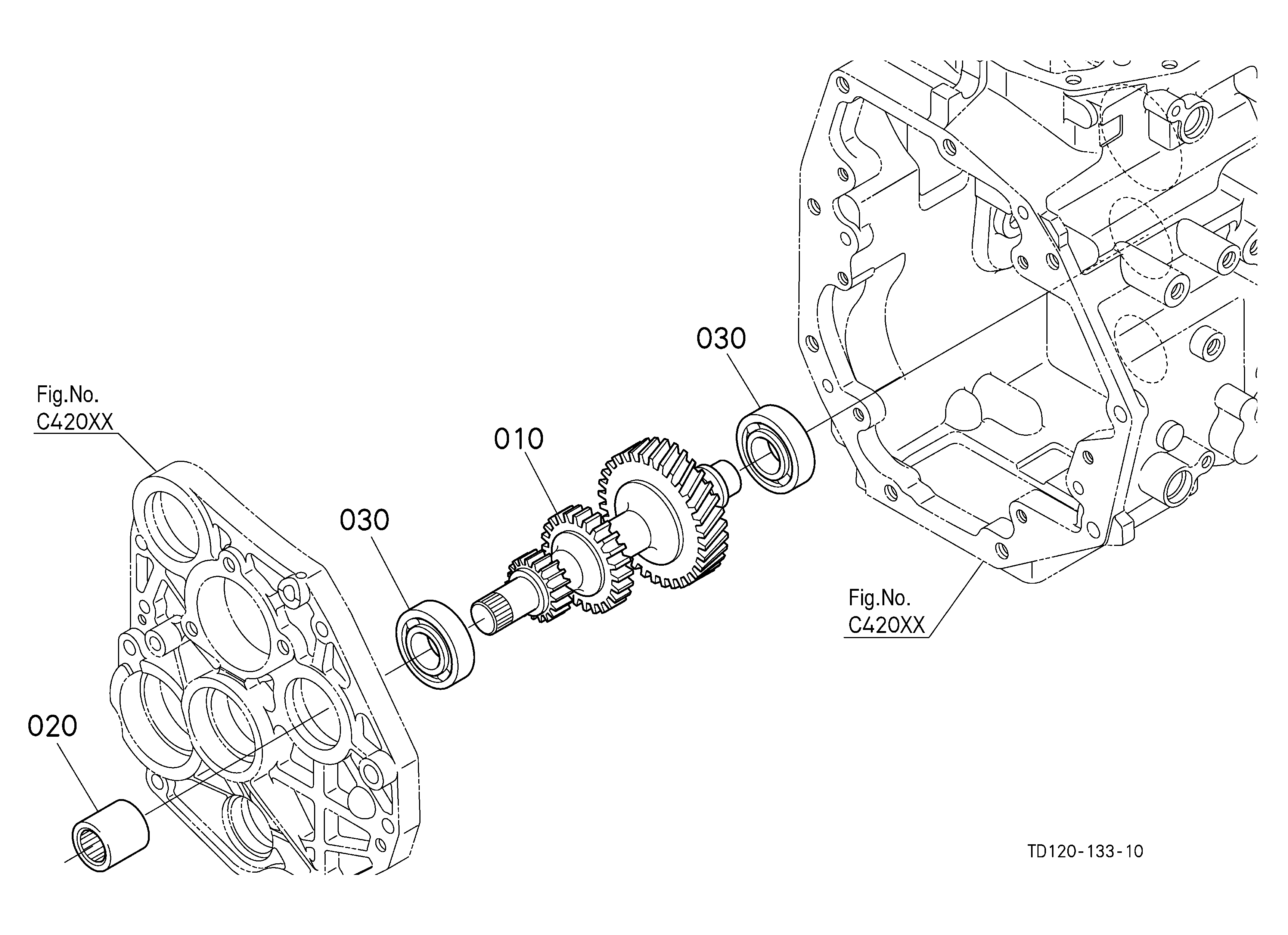

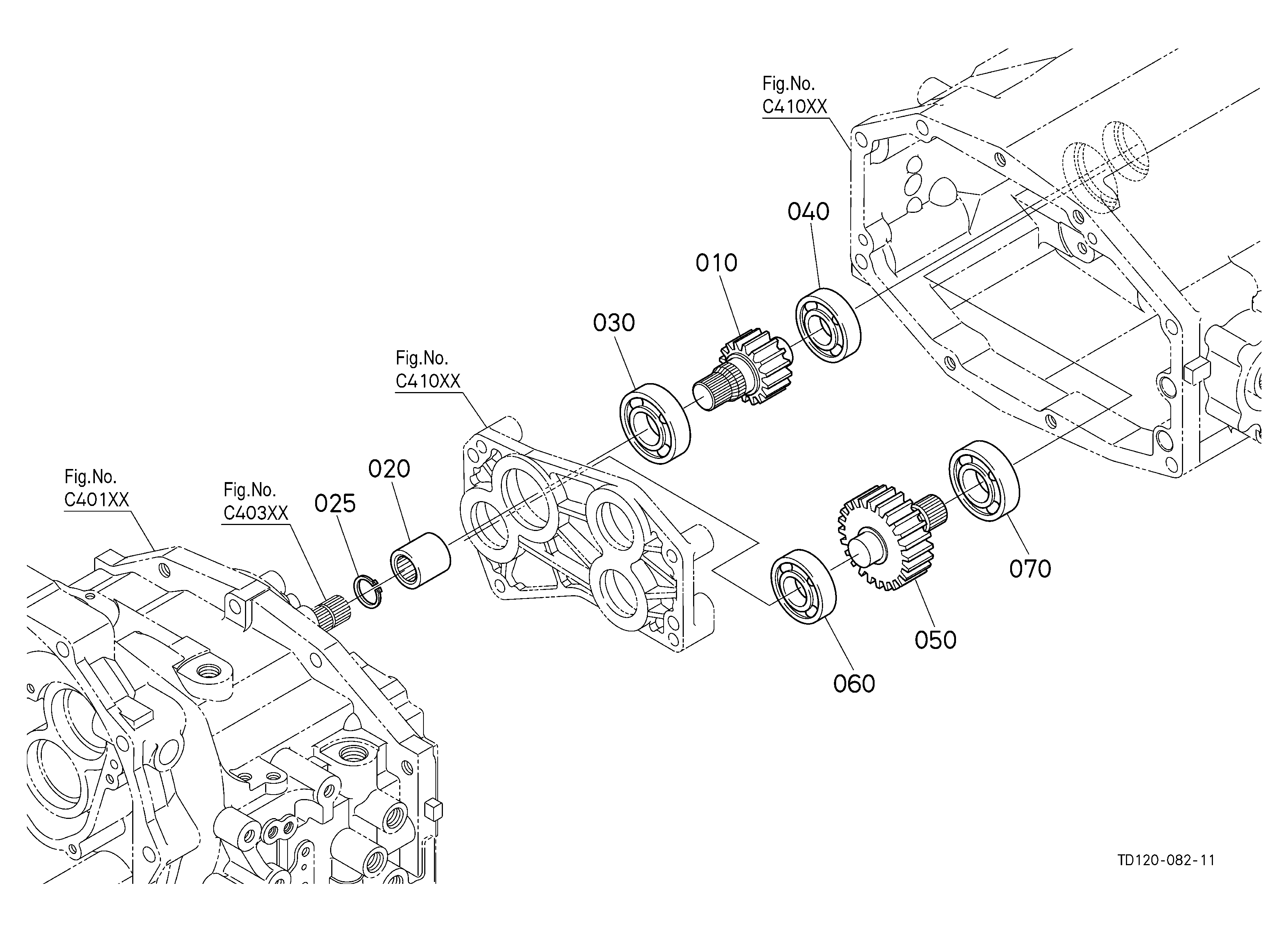

Exploded-view parts diagram "D12502 SPIRAL BEVEL PINION" for the Kubota L3240HST. 23 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 GEAR (DT,18,E) TD050-15110 1 AVAILABLE TO ORDER $175.80
020 BOLT 34350-26250 37800-43870 1 6 IN STOCK $15.74
030 ASSY GEAR, BEVEL TD170-59980 1 AVAILABLE TO ORDER $1,670.20
040 NUT 35260-23250 35260-23252 1 AVAILABLE TO ORDER $10.94
050 CASE, BEARING 34070-22770 34070-22772 1 AVAILABLE TO ORDER $110.26
060 BEARING, TAPER-R T0330-22200 TD170-22720 1 1 IN STOCK $151.74
070 BOLT, FLANGE 01130-51040 01133-51040 1 10 IN STOCK $2.87
080 SHIM (0.1MM) 34070-22880 1 2 IN STOCK $2.65
080 SHIM (0.2MM) 34070-22870 1 4 IN STOCK $2.65
080 SHIM (0.5MM) 34070-22860 1 1 IN STOCK $2.65
090 COVER, BEARING 34070-22780 34070-22783 1 AVAILABLE TO ORDER $22.82
100 COLLAR, THRUST 32420-67660 32420-67662 1 AVAILABLE TO ORDER $18.36
110 GEAR TD170-52610 1 AVAILABLE TO ORDER $356.00
120 BEARING, NEEDLE TD060-52640 1 AVAILABLE TO ORDER $29.03
120 BEARING, NEEDLE TD170-22750 1 AVAILABLE TO ORDER $31.01
130 BOSS, SPLINE TD060-52710 1 AVAILABLE TO ORDER $202.64
140 CIR-CLIP T1060-22880 T1060-22882 1 AVAILABLE TO ORDER $4.15
150 GEAR (35, M) TD170-52650 1 AVAILABLE TO ORDER $382.65
160 GEAR (21, H) TD170-52660 1 AVAILABLE TO ORDER $296.83
170 BEARING, NEEDLE T1880-22760 1 AVAILABLE TO ORDER $25.79
170 BEARING, NEEDLE T1060-22870 1 AVAILABLE TO ORDER $33.04
180 COUPLING (HST, S TD170-52790 1 AVAILABLE TO ORDER $55.45
190 BEARING, ROLLER 34070-22740 1 AVAILABLE TO ORDER $111.48

Showing 1 to 23 of 23 parts
