Scroll to zoom Click a part # to view details

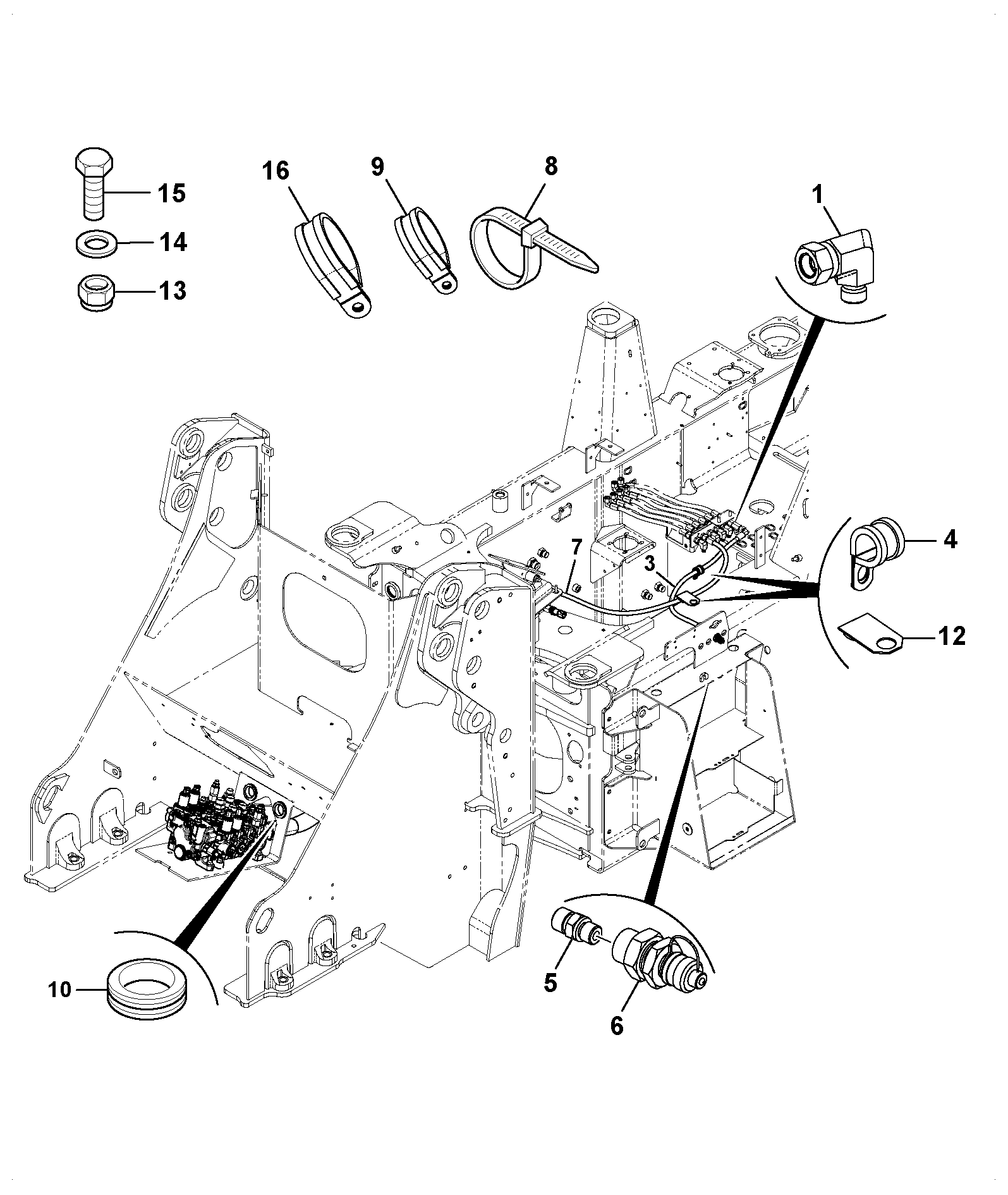

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ELBOW ADAPTOR 1/4BSP (P493) 816/90004 | 1 | $35.04 | |||
| 3 | HOSE 1/4BSP 530mm 629/80197 | 1 | $209.30 | |||
| 4 | P CLIP M10 19MM 333/S3296 | 1 | $6.02 | |||
| 5 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 6 | BULKHEAD TEST POINT 816/90965 | 1 | $30.23 | |||
| 7 | SERVO HOSE 332/T8475 | 1 | $50.51 | |||
| 8 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 9 | P CLIP 332/R9772 | 1 | $21.03 | |||
| 10 | GROMMET 2410/0215 | 1 | $44.16 | |||
| 12 | CABLE TIE 190mm 826/01347 | 1 | $3.37 | |||
| 13 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 14 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 15 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 16 | MISC P-CLIP 51 MM 400/B5163 | 1 | $6.56 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-D110-15-5-404504 D110-15-5 LOADER CONTROLS JOYSTICK 4 SPOOL, PROPNL
View Diagram -
DIAG-D110-20-5-404504 D110-20-5 LOADER CONTROLS JOYSTICK COMPONENT ASSEMBLY
View Diagram -
DIAG-D110-10-1-404504 D110-10-1 LOADER CONTROLS JOYSTICK 3 SPOOL PROP NL
View Diagram
