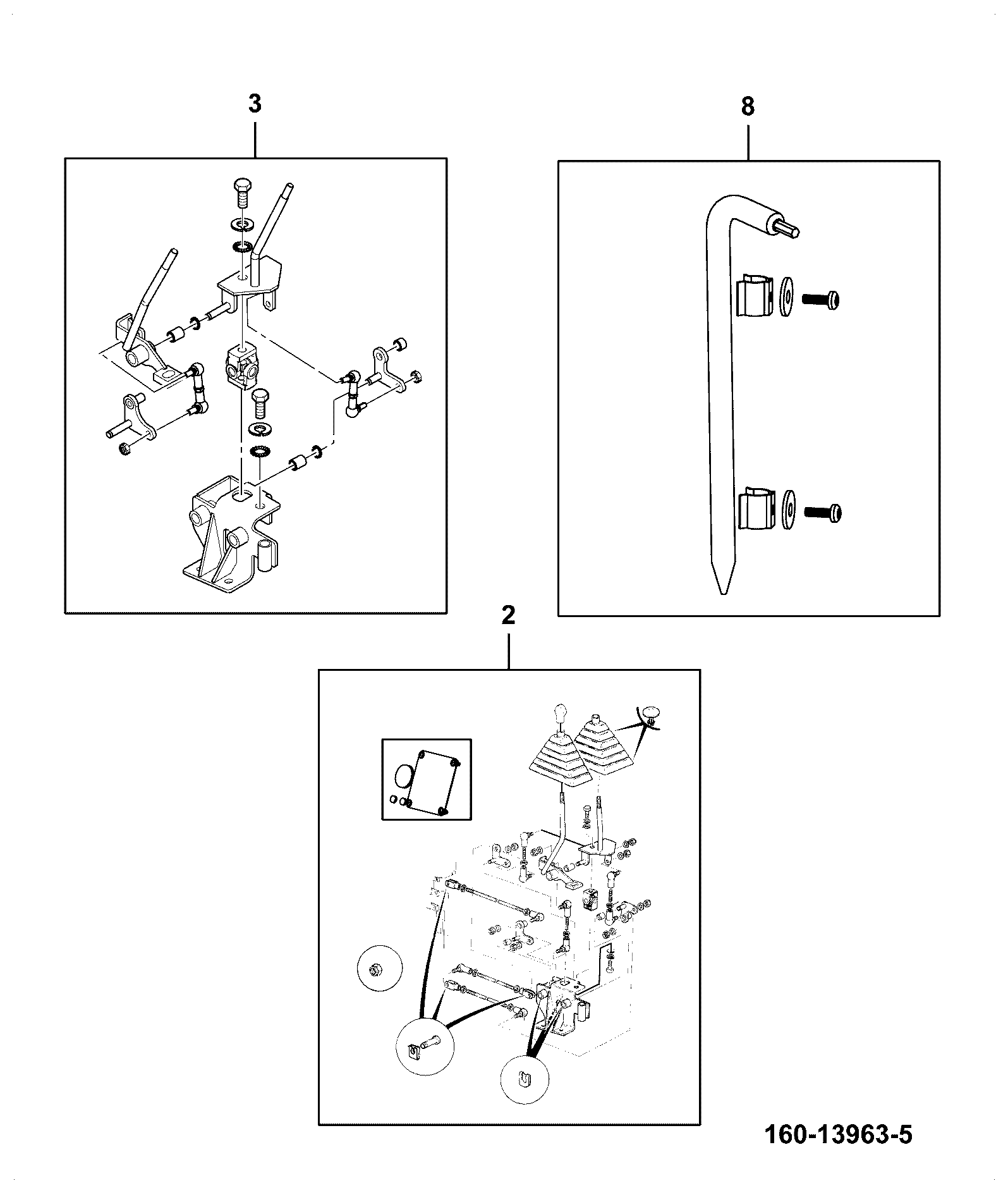

D110-145-1 LOADER CONTROLS LEVER ASSY TILT LOCK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	LEVER ASSY 160/01937	1	AVAILABLE TO ORDER	$655.59	Quantity
7	LABEL: LOADING PATTERN 817/18589	1	AVAILABLE TO ORDER	$44.45	Quantity
8	LABEL: LOADING PATTERN 817/18590	1	AVAILABLE TO ORDER	$40.58	Quantity
9	PLATE GAITER CLAMP 162/02980	1	AVAILABLE TO ORDER	$54.24	Quantity
11	CS LEVER LOCK 160/15455	1	AVAILABLE TO ORDER	$76.07	Quantity

Showing 1 to 5 of 5 parts
