Kubota U15 D10001 CONTROL LEVER (LEVER LH) Parts Diagram

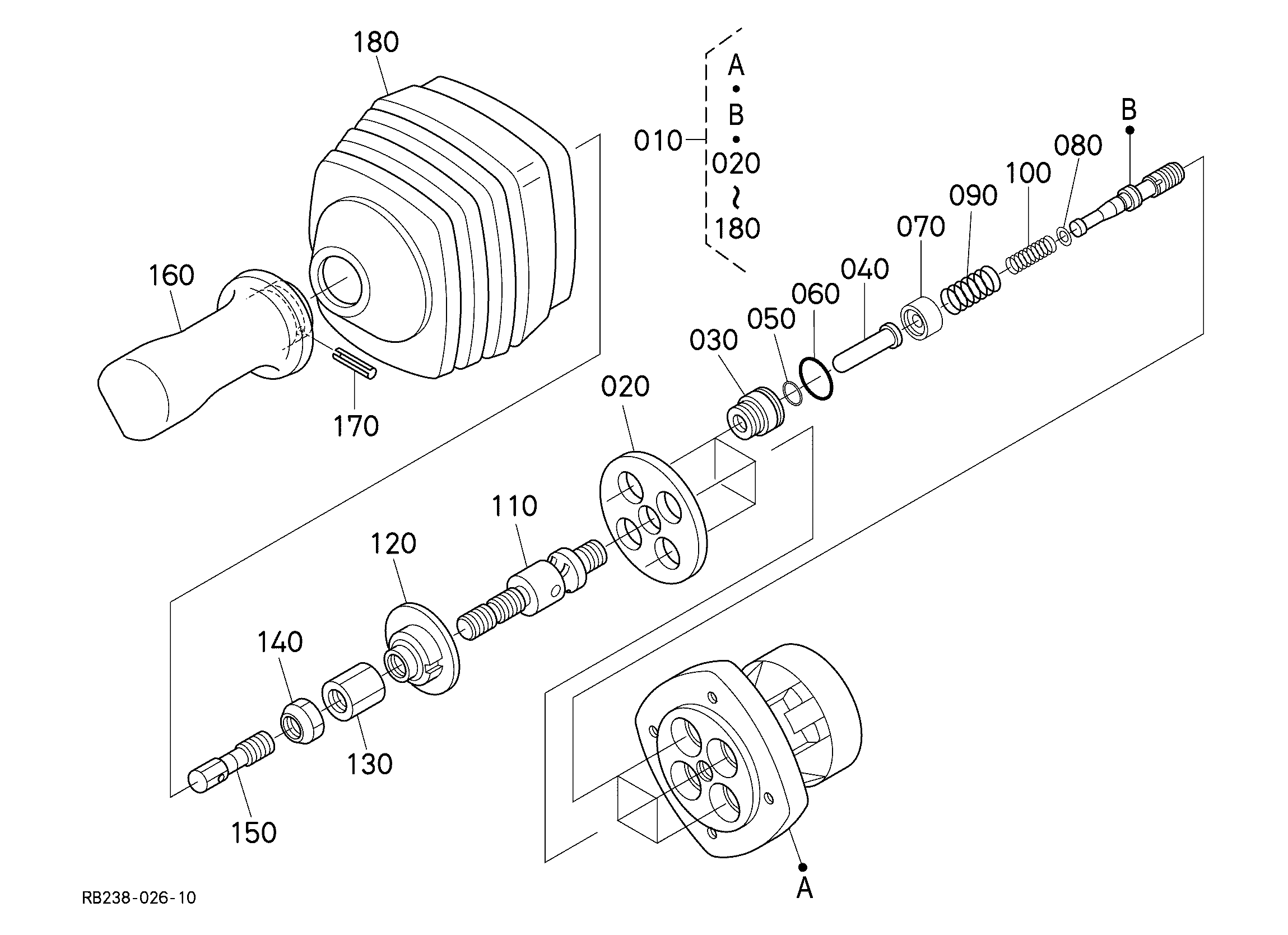

Exploded-view parts diagram "D10001 CONTROL LEVER (LEVER LH)" for the Kubota U15. 25 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET RA221-44520 | 1 | $217.24 | |||
| 020 | TRIM RA221-38210 | 1 | $5.02 | |||
| 030 | CUSHION, SEAT 48100-51540 | 1 | $8.02 | |||
| 040 | NUT 02114-60080 02114-70080 | 1 | $0.60 | |||
| 050 | COLLAR RC101-38160 | 1 | $14.18 | |||
| 060 | BUSH 08511-01008 | 1 | $5.05 | |||
| 070 | Plain Washer 04011-00100 04011-50100 | 1 | $0.36 | |||
| 080 | PIN, SNAP 52300-34130 | 1 | $4.15 | |||
| 080 | Split Pin (Cotter Pin) 05525-61000 05525-51000 | 1 | $1.51 | |||
| 090 | BRACKET RA228-44500 | 1 | $524.73 | |||
| 100 | Bush (Bushing) 08511-02420 | 1 | $8.57 | |||
| 110 | BUSHING 31351-16830 08511-01625 | 1 | $6.60 | |||
| 120 | Bolt Fastener 01133-61020 01133-71020 | 1 | $1.99 | |||
| 130 | Plain Washer 04015-60100 04015-70100 | 1 | $1.05 | |||
| 140 | SPRING RD411-44540 | 1 | $49.30 | |||
| 150 | SWITCH RC411-53473 RC411-53474 | 1 | $60.05 | |||
| 160 | SCREW, CSK HD 03056-50520 | 1 | $0.46 | |||
| 170 | BOLT 01130-51016 01133-51016 | 1 | $1.99 | |||
| 180 | ASSY VALVE RB238-61710 Discontinued | 1 | $1,504.18 | |||
| 190 | BOLT 01311-10630 | 1 | $2.54 | |||
| 200 | Spring Washer 04512-60060 04512-70060 | 1 | $0.60 | |||
| 220 | BRACKET, WRISTRE RA228-44852 RA228-44853 | 1 | $41.50 | |||
| 230 | BOLT 01135-61020 01135-71020 | 1 | $1.99 | |||
| 240 | REST, WRIST RC708-44632 | 1 | $184.91 | |||
| 260 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.60 | |||
Showing 1 to 25 of 25 parts
