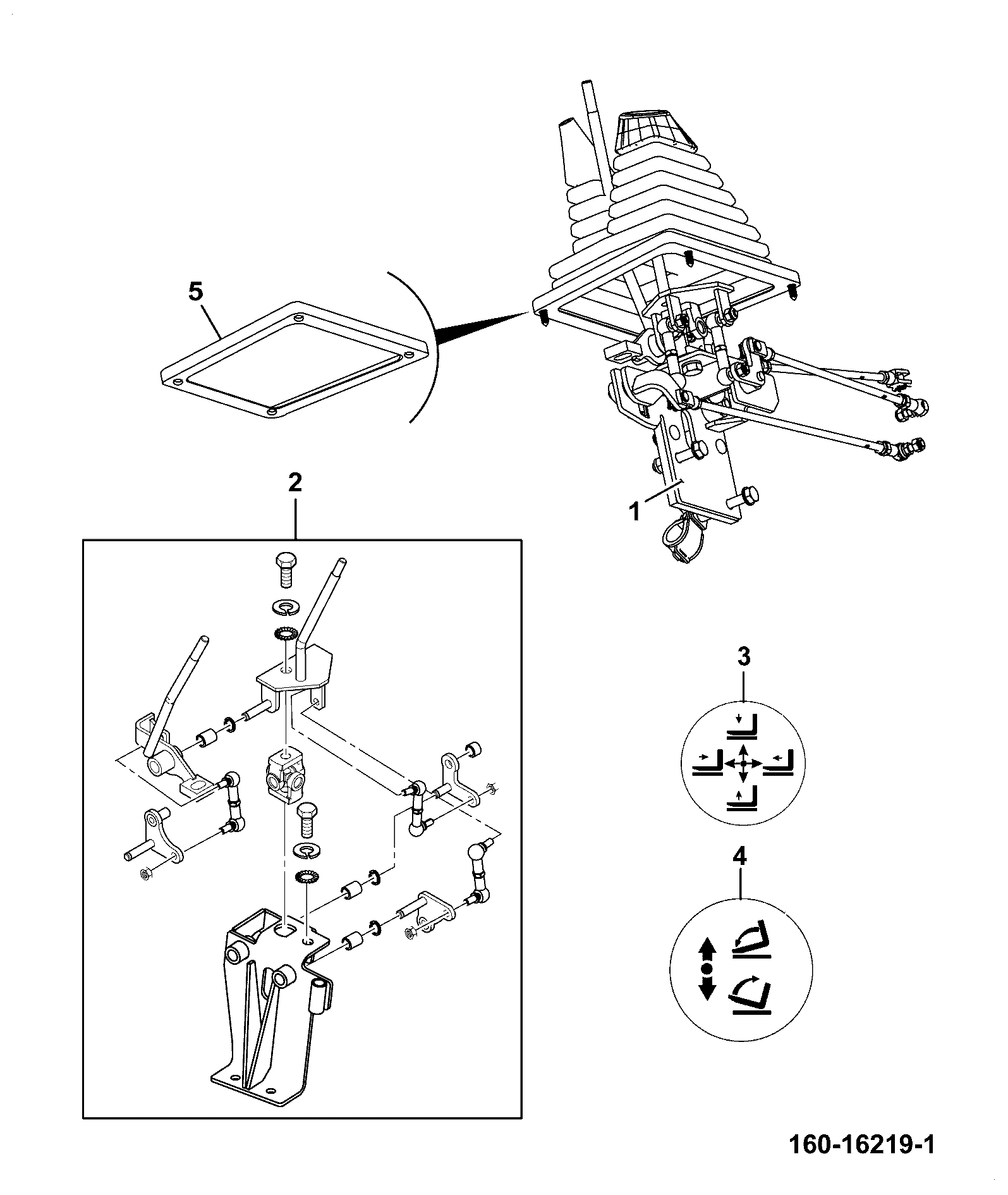

D100-95-1 MECHANICAL CONTROL INSTALLATION ASSEMBLIES LOADER LEVER NO LOCK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	P37 CONTROL LEVER 160/16231	1	AVAILABLE TO ORDER	$725.40	Quantity
3	LABEL: LOADING PATTERN 817/18589	1	AVAILABLE TO ORDER	$44.45	Quantity
4	LABEL: LOADING PATTERN 817/18590	1	AVAILABLE TO ORDER	$40.58	Quantity
5	PLATE GAITER CLAMP 162/02980	1	AVAILABLE TO ORDER	$54.24	Quantity

Showing 1 to 4 of 4 parts

DIAG-D100-85-1-401935 D100-85-1 MECHANICAL CONTROL INSTALLATION ASSEMBLIES PLACE PATTERN LEVERS NO LOCK
View Diagram

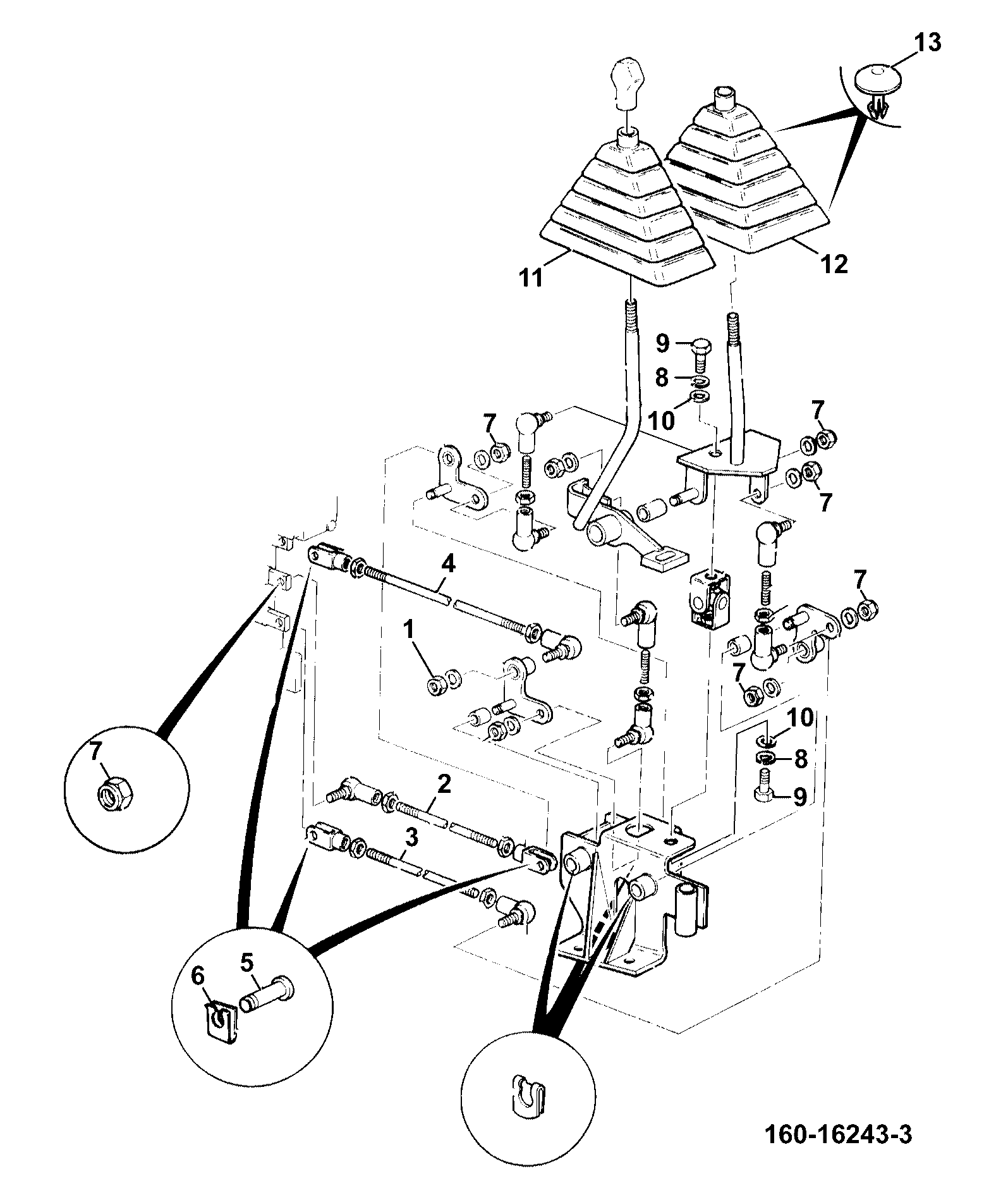

DIAG-D110-10-1-401935 D110-10-1 LOADER CONTROLS LEVER ASSY COMMON PARTS
