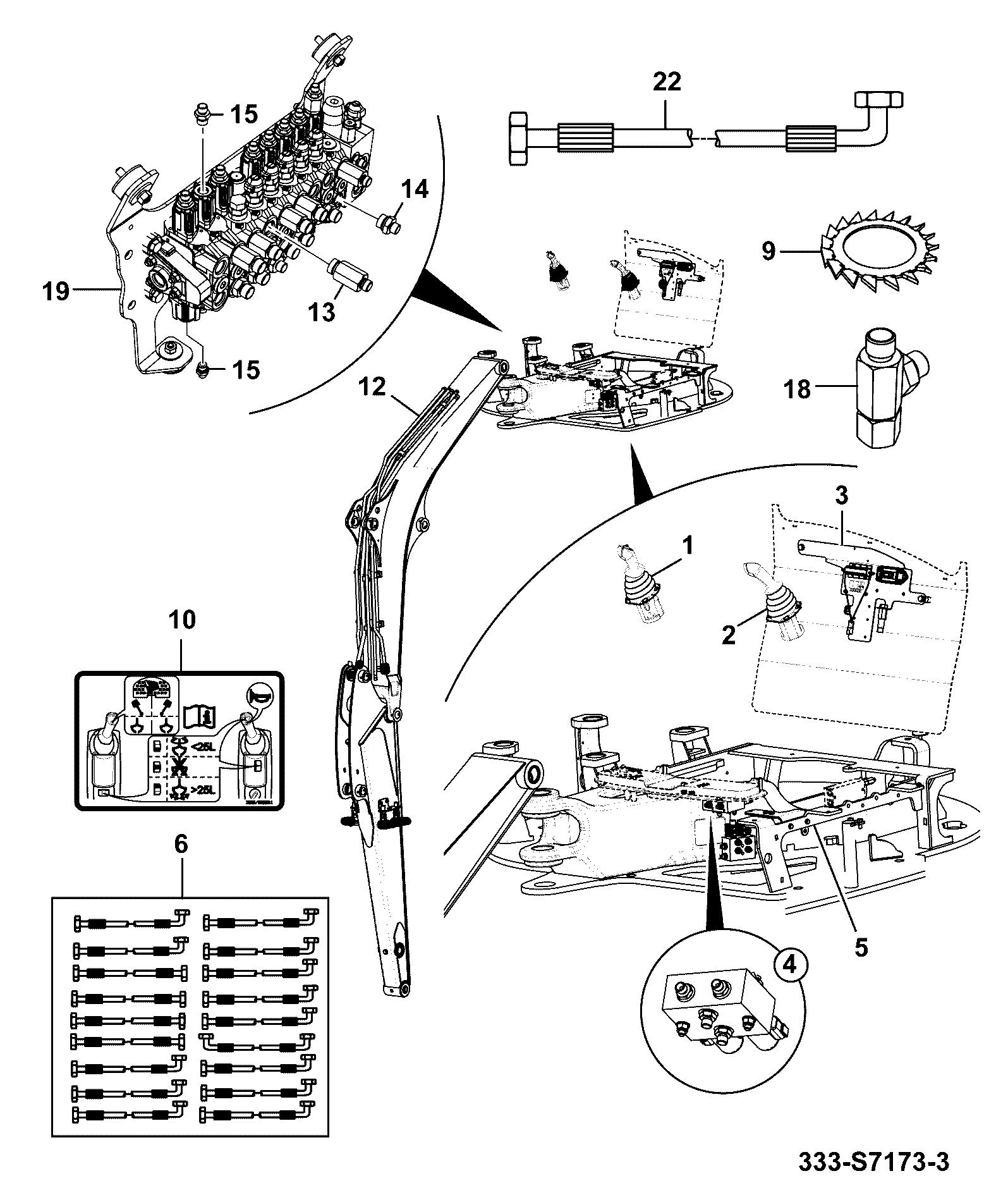

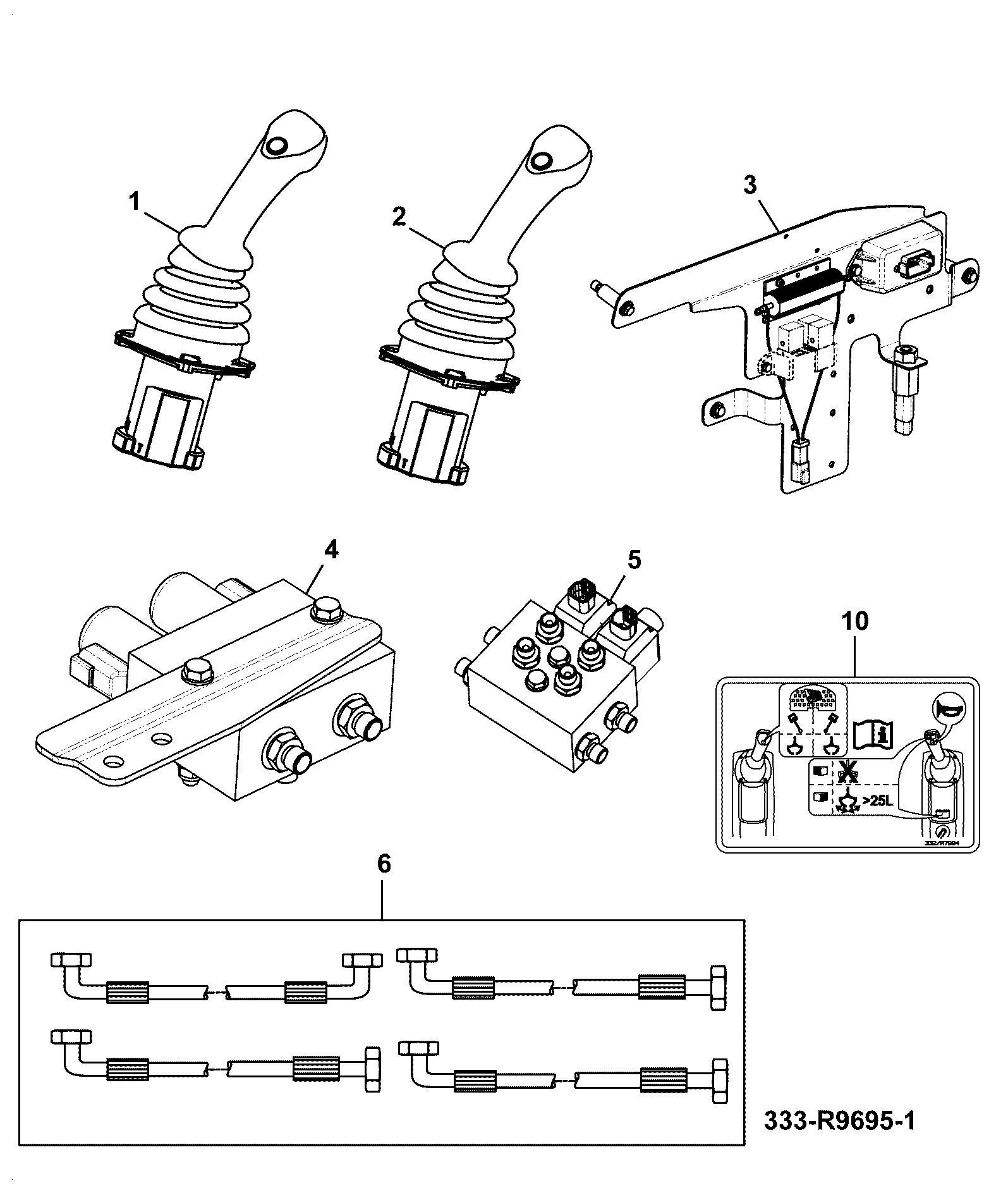

D100-5-1 MECHANICAL CONTROL INSTALLATION ASSEMBLIES BSP ELECTROP Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	RH JOYSTICK - ELECTROPROP. 333/R4651	1	AVAILABLE TO ORDER	$2,211.73	Quantity

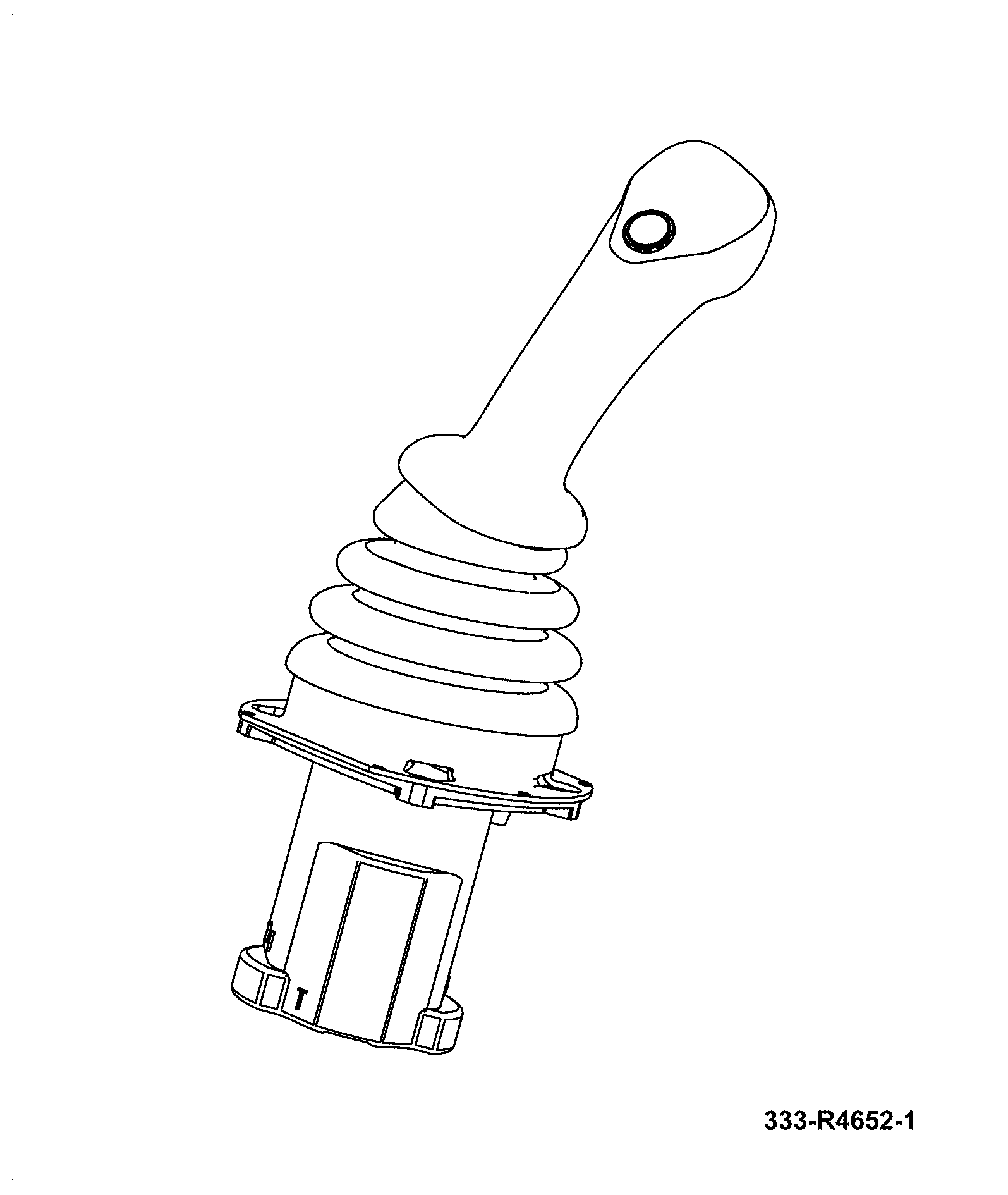

2	STD LH JOYSTICK-SOFT HANDLE 333/R4652	1	AVAILABLE TO ORDER	$1,622.08	Quantity
10	CONTROL LABEL - PROPORTIONAL 333/R7994	1	AVAILABLE TO ORDER	$22.17	Quantity
11	Spacer nylon 10.2x20x20 829/31256	1	AVAILABLE TO ORDER	$5.61	Quantity

Showing 1 to 4 of 4 parts
