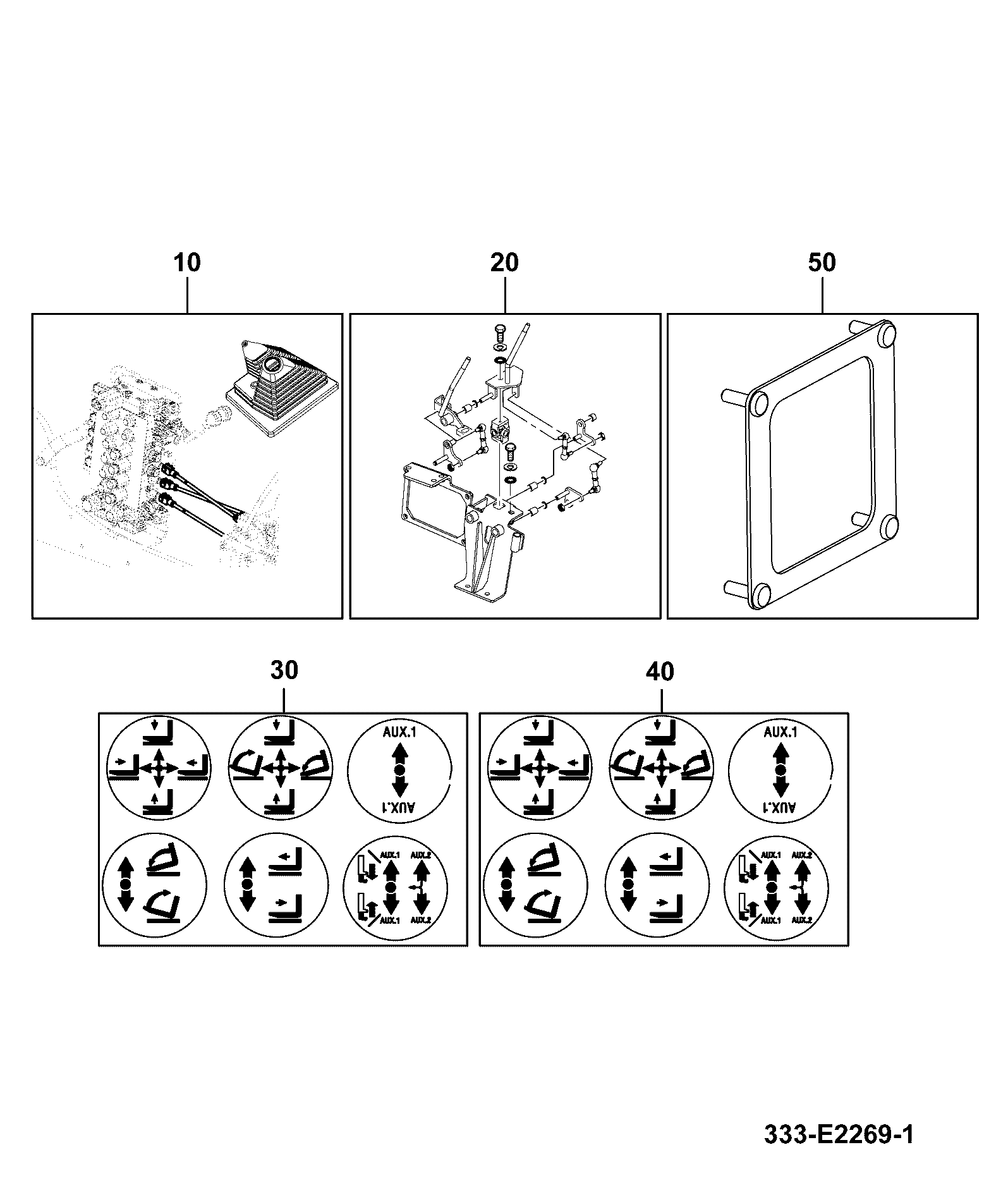

D100-30-1 MECHANICAL CONTROL INSTALLATION ASSEMBLIES PLACE PATTERN LEVERS INSTALLATION,NO LOCK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
20	P37 CONTROL LEVER 160/16231	1	AVAILABLE TO ORDER	$725.40	Quantity
30	LABEL: LOADING PATTERN 817/18589	1	AVAILABLE TO ORDER	$44.45	Quantity
40	LABEL: LOADING PATTERN 817/18590	1	AVAILABLE TO ORDER	$40.58	Quantity
50	PLATE GAITER CLAMP 162/02980	1	AVAILABLE TO ORDER	$54.24	Quantity

Showing 1 to 4 of 4 parts

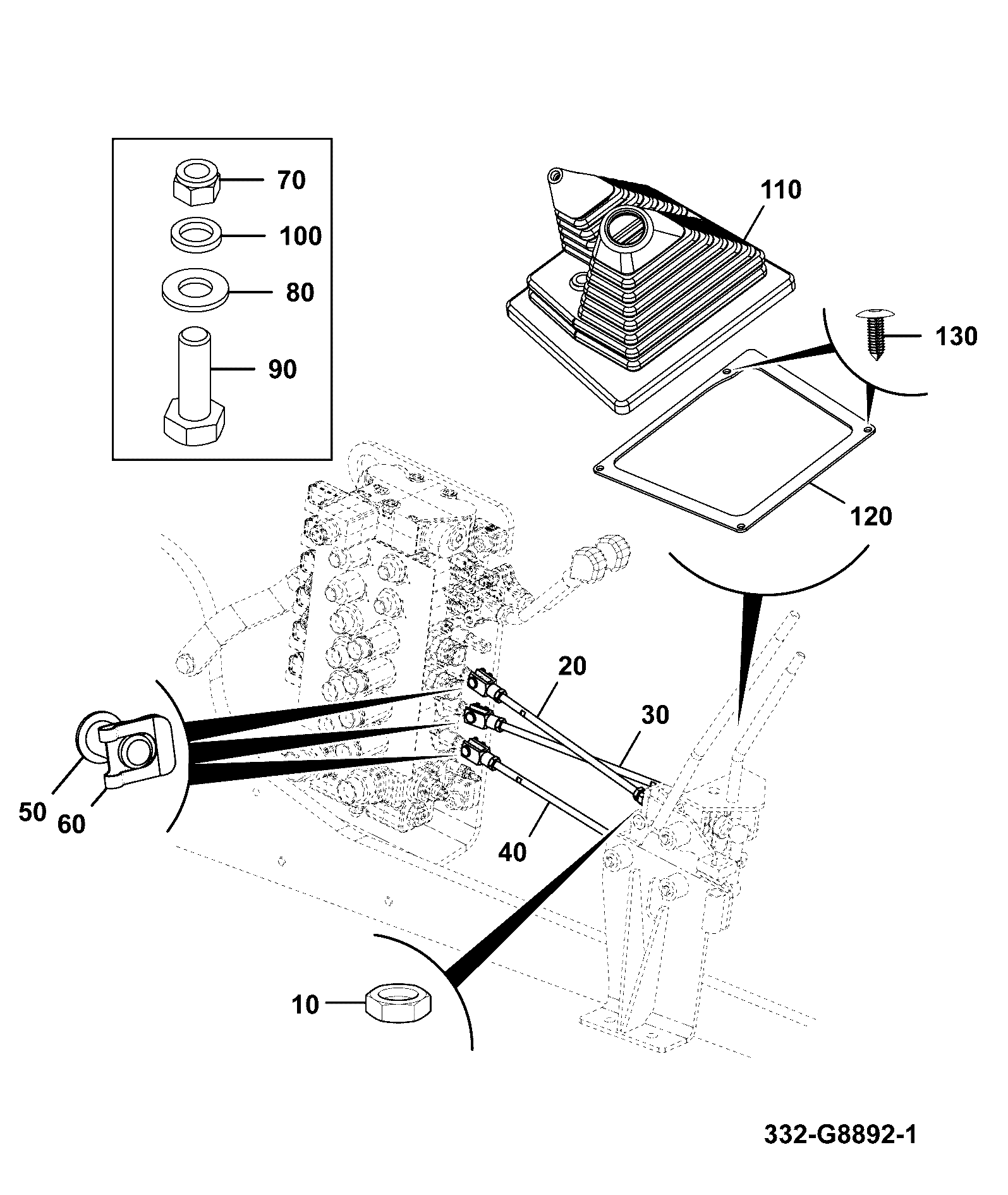

DIAG-D100-15-1-400353 D100-15-1 MECHANICAL CONTROL INSTALLATION ASSEMBLIES PLACE PATTERN LEVERS NO LOCK
View Diagram
DIAG-D110-15-1-400353 D110-15-1 LOADER CONTROLS LEVER ASSY COMMON PARTS
View Diagram

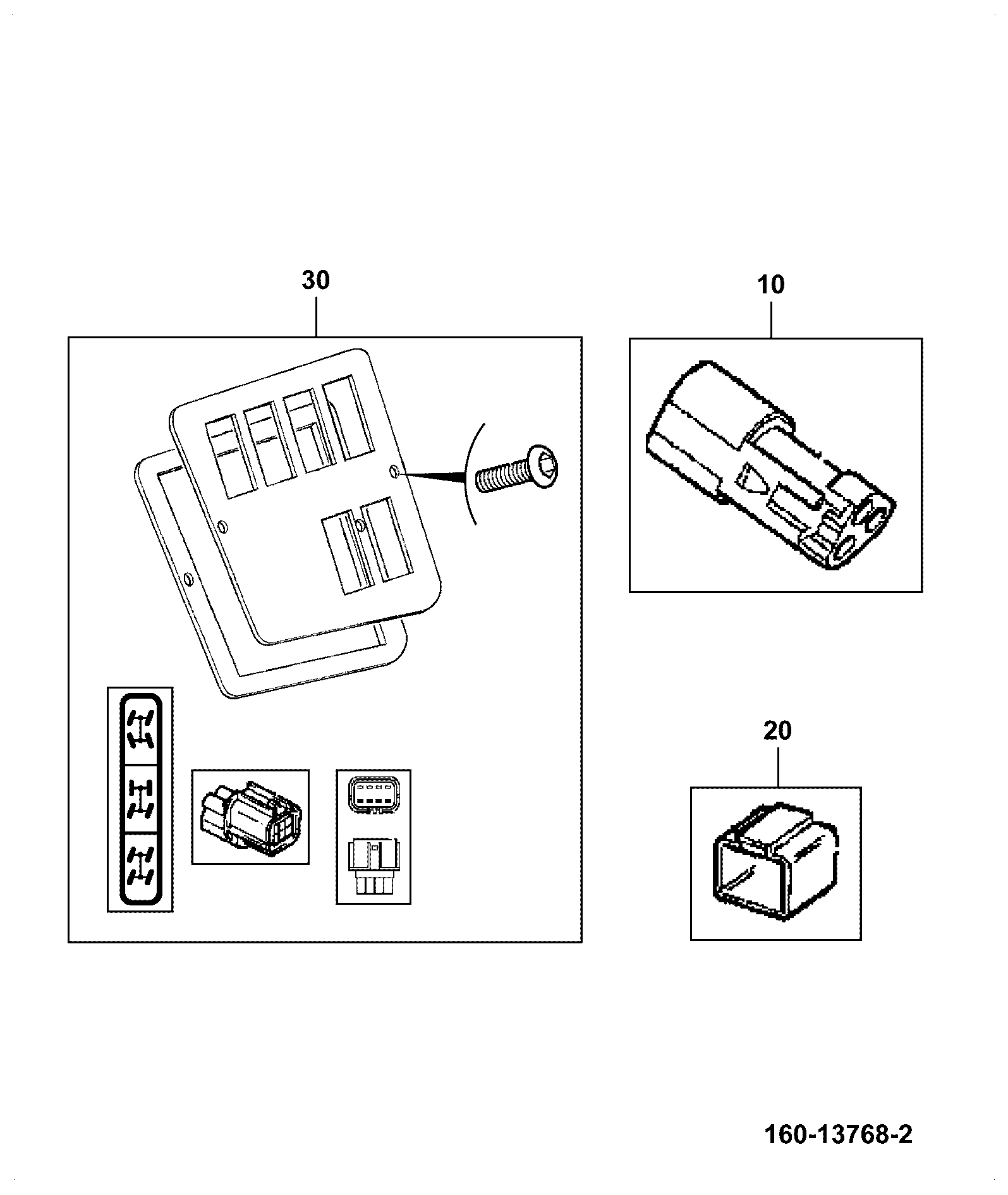

DIAG-C390-230-1-400353 C390-230-1 OTHER ELECTRICAL ITEMS BLANKING PLUGS STEER MANUAL
