| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| SEAL RUBBER 50 MTR (roll) 926/18700 | 1 | $30.90 | ||||
| SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $1.25 | ||||
| 1 | SET SCREW M10x35 1315/0409D | 1 | $0.00 | |||
| 2 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 3 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 4A | PLATE ACCESS 331/26195 | 1 | $21.56 | |||
| 4B | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.00 | |||
| 4C | Plate soundproof 331/25318 | 1 | $423.15 | |||
| 4E | SPRING WASHER M8 1425/0007D | 1 | $1.52 | |||
| 12 | LEVER CARRIER 294/11100 | 1 | $286.13 | |||
| 13 | BOLT LEVER LOCKING 294/00573 | 1 | $268.32 | |||
| 15 | CIRCLIP EXTERNAL 2203/0028 | 1 | $0.23 | |||
| 18 | KNOB LOADER CONTROL 126/02143 | 1 | $322.54 | |||
| 19 | LEVER CONTROL ABI 295/10054 332/L2337 | 1 | $284.76 | |||
| 20 | TILT LEVER ABI 295/10055 332/L2340 | 1 | $118.23 | |||
| 21 | CONTROL ROD M8 GA.ABI 913/08000 | 1 | $63.41 | |||
| 21A | NUT M8 THIN PLAIN 1370/0202Z | 1 | $0.71 | |||
| 21B | M8 LOCK NUT L.H. 913/09300 826/01108 | 1 | $5.25 | |||
| 21C | BALL JOINT M8 RH 331/20202 | 1 | $32.71 | |||
| 21D | ROD.CONTROL (P68) 913/08001 | 1 | $224.01 | |||
| 21E | M8 CLEVIS L.H. 913/03202 | 1 | $71.95 | |||
| 22 | BEARING 16x20x25 831/00064 | 1 | $0.00 | |||
| 23 | BUSH-OILITE 831/00111 | 1 | $91.62 | |||
| 24 | GAITER 295/00789 332/U0615 | 1 | $116.19 | |||
| 25 | SAFETY CLIP 529/38603 | 1 | $0.58 | |||
| 26 | CLEVIS PIN 529/38602 403/H9313 | 1 | $2.75 | |||
| 27 | BRACKET GAITER MOU 335/03864 333/P1264 | 1 | $157.85 | |||
| 27 | PLATE 295/10195 | 1 | $81.63 | |||
| 30 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.22 | |||
| 31 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 32 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 33 | SHIM 0.5mm 819/00047 | 1 | $0.00 | |||
| 34 | Bar striker 295/00227 | 1 | $221.66 | |||
| 35 | WASHER 823/00102 | 1 | $3.30 | |||
| 36 | SCREW GRUB 1390/0102 | 1 | $0.15 | |||
| 59 | Hand Lever Knob 25/929314 | 1 | $0.00 | |||
| 60 | PUSH-BUTTON SWITCH 666mm 701/42600 701/D9775 | 1 | $33.29 | |||
| 61 | HARNESS.AUX.TILT 721/00542 | 1 | $280.87 | |||
| 66 | SCREW.M5X20LG. 826/01406 | 1 | $10.69 | |||
| 67 | RIVET NUT M5 826/01333 | 1 | $6.63 | |||
| 76 | PLATE 331/28837 | 1 | $25.87 | |||
| 77 | (P) SCREW M6x15 COUNTERSUNK 826/01558 | 1 | $5.96 | |||
Showing 1 to 42 of 42 parts
Related Assemblies
-
DIAG-D1-2-3-397165 D1-2-3 CONTROLS, LOADER WITH AUXILIARY 4 AND 5 SPOOL
View Diagram -

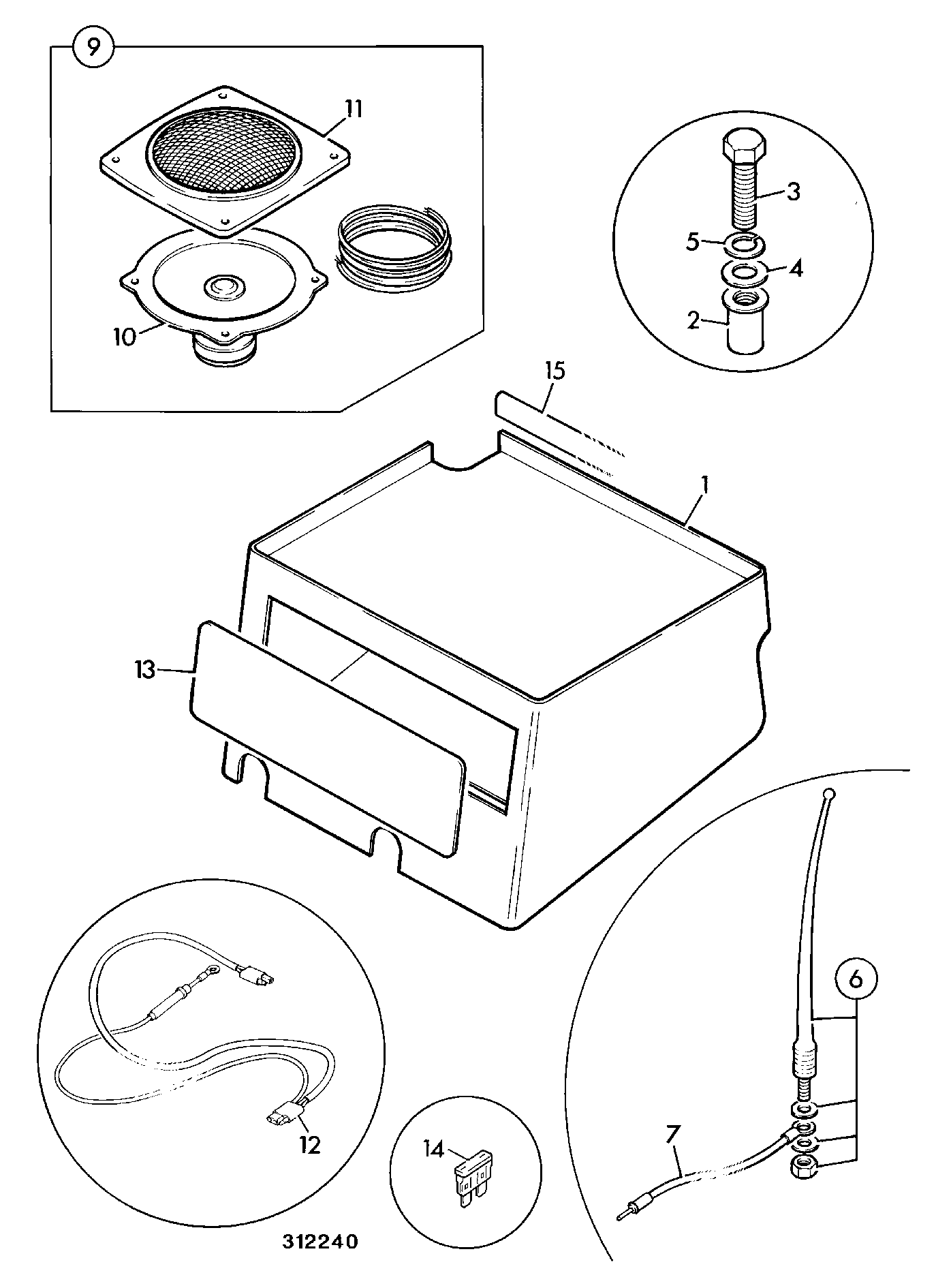

DIAG-C3-12-1-397165 C3-12-1 RADIO INSTALLATION
