Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | COVER 192/22600 | 1 | $128.10 | |||
| 1 | COVER 192/22700 | 1 | $129.47 | |||
| 1 | COVER 192/22800 | 1 | $182.66 | |||
| 4 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 7 | BOLT M10x45 1315/3411Z | 1 | $5.64 | |||
| 10 | BOLT M10x70 1315/3416Z | 1 | $4.90 | |||
| 11 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 12 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 13 | VLV.BLK.INSTRUCTION PLATE 817/02482 | 1 | $5.37 | |||
| 14 | GAITER 192/00213 | 1 | $145.36 | |||
| 14 | GAITER 192/00214 | 1 | $207.78 | |||
| 14 | GAITER 192/00215 | 1 | $328.80 | |||
| 15 | NUT 7/16UNF THIN PLAIN 1340/0302Z | 1 | $2.18 | |||
| 16 | LEVER 192/00198 | 1 | $233.21 | |||
| 17 | LEVER 192/00199 | 1 | $212.81 | |||
| 18 | LEVER 192/00201 | 1 | $53.19 | |||
| 19 | LEVER 192/00202 | 1 | $59.98 | |||
| 20 | PLATE 192/00206 | 1 | $122.39 | |||
| 20 | PLATE 192/00207 | 1 | $132.69 | |||
| 20 | PLATE 192/00208 | 1 | $233.72 | |||
| 21 | SET SCREW M5x12 1315/0101Z | 1 | $0.44 | |||
| 22 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.43 | |||
| 23 | SCREW NO8X1/2 1430/0202 | 1 | $0.41 | |||
| 24 | HAND LEVER KNOB - YELLOW 191/00281 401/T0649 | 1 | $22.86 | |||
| 25 | WASHER 823/00445 | 1 | $0.23 | |||
| 26 | BRACKET 191/61500 | 1 | $39.99 | |||
| 28 | '0W) (Pre-P) RUBBER SEALING Roll 50MTRS 926/01100 | 1 | $22.00 | |||
| 29 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 30 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.14 | |||
| 31 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 32 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.33 | |||
| 33 | SET-SCREW M12 L-_25mm(KANBAN) 1315/0507Z | 1 | $2.59 | |||
| 34 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $1.15 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-

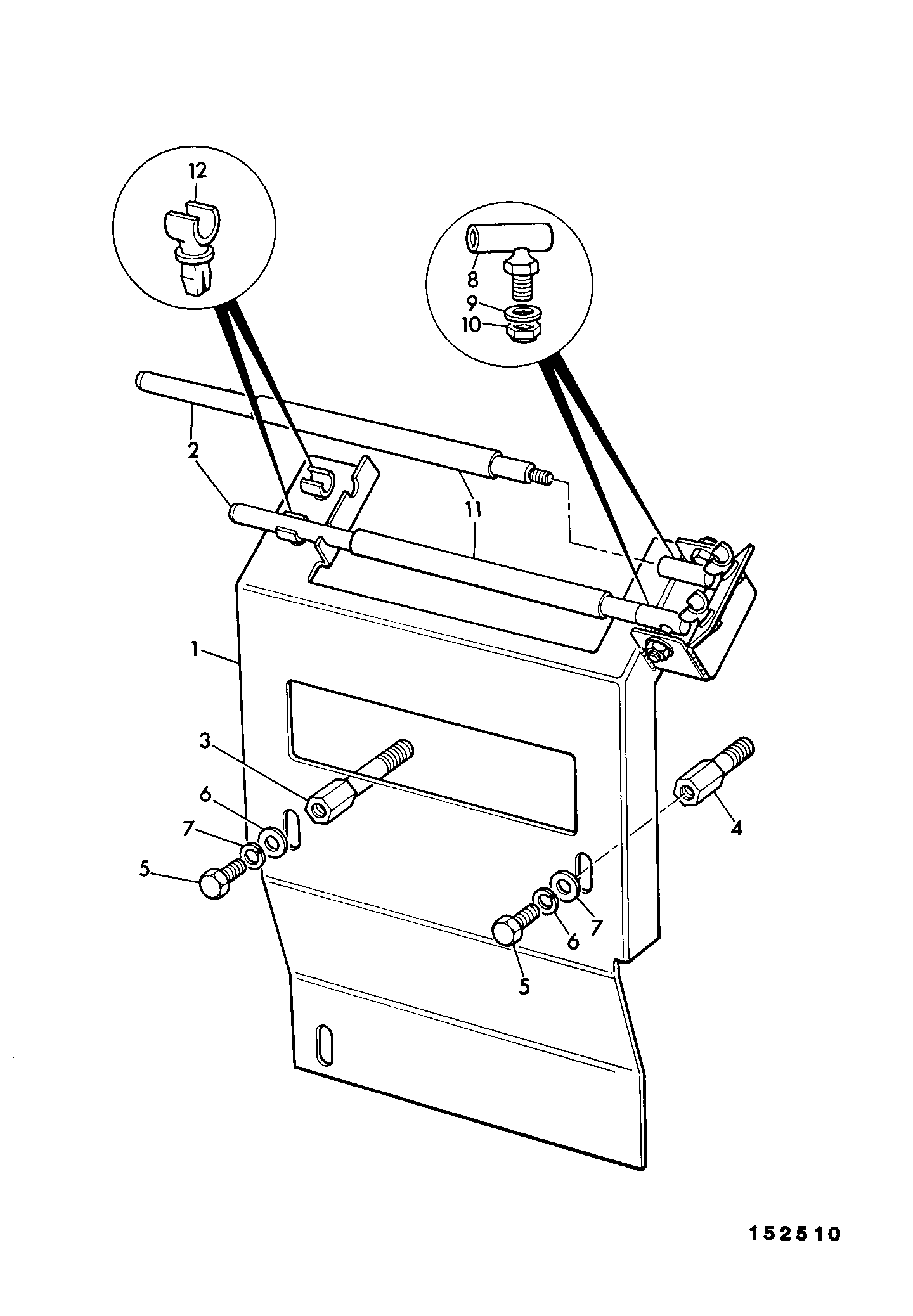

DIAG-D1-2-2-399312 D1-2-2 VALVE LEVER LOCKING
View Diagram -

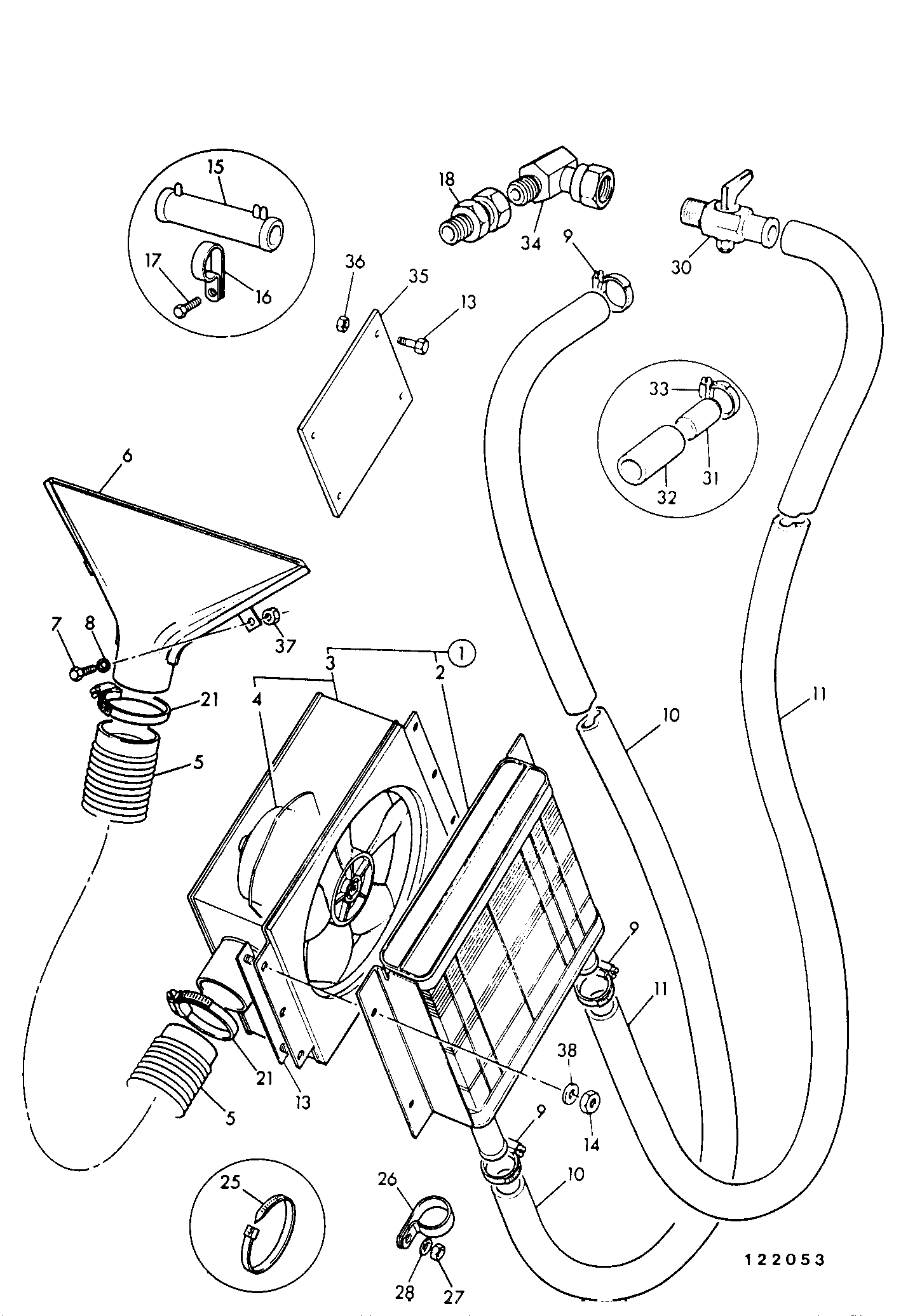

DIAG-C3-4-3-399312 C3-4-3 HEATER, INSTALLATION
View Diagram -

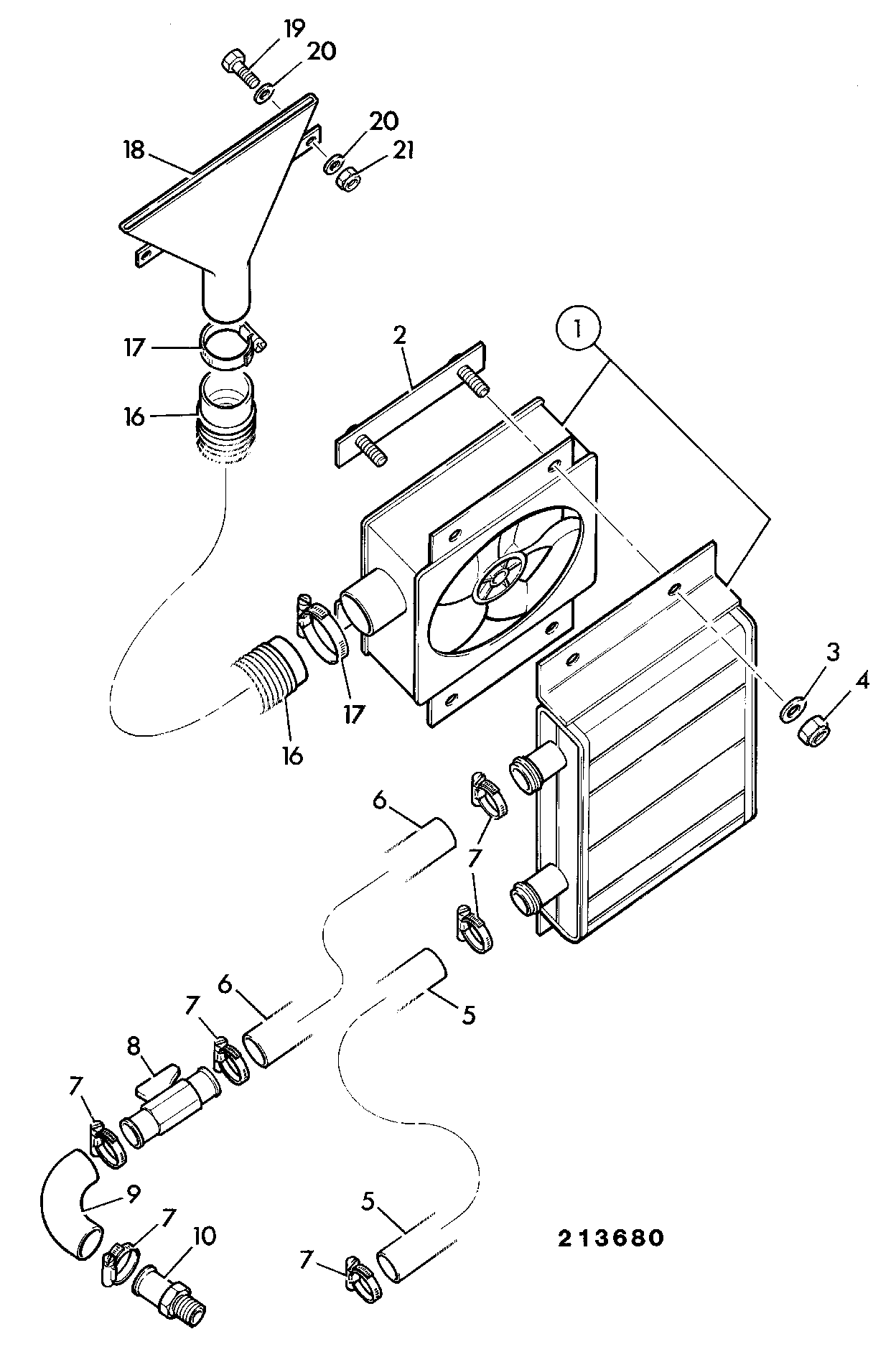

DIAG-C3-4-2-399312 C3-4-2 HEATER, INSTALLATION
View Diagram
